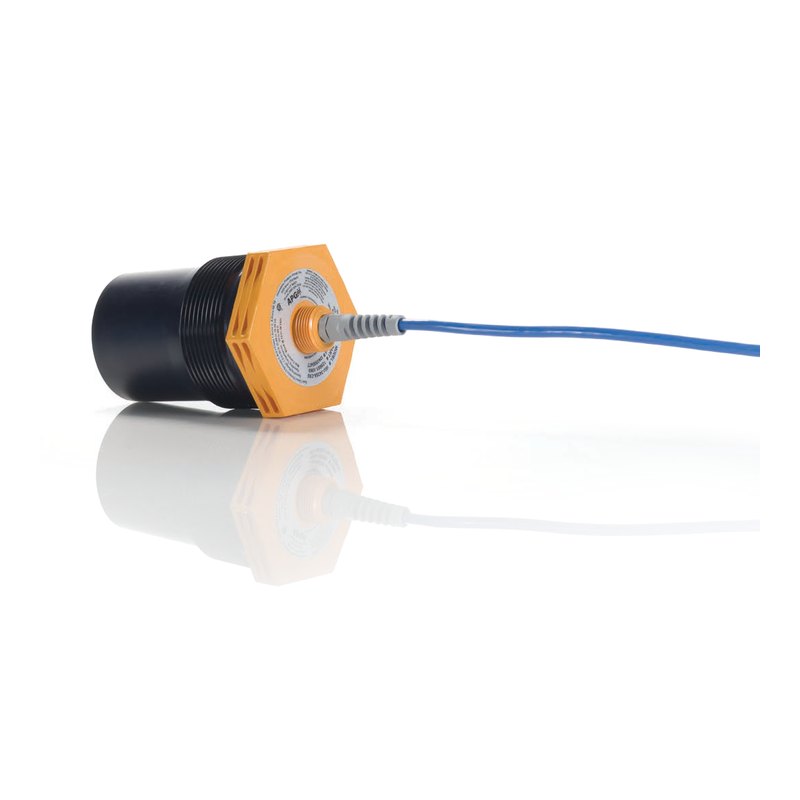

APG IRU-3430 ultrasonic level transmitter, 0.4–15.2 m, 4–20 mA, 3 in NPT, Class I Div 2
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1472 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | IRU-3430 (IRU-3433/3435) |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Longer range, higher-power 43 kHz version for liquids and bulk solids | |
| AutoSense software for easy set-up | |
| Compensates for temperature, humidity and agitators | |
| 3 in NPT mount; programmable response time (20 ms minimum) |
Applications
| Level in larger tanks, sumps and wet wells | |
| Level of bulk solids in bins and silos up to 7.6 m |
Key specifications
| Range | 0.4–15.2 m (liquids, flat surfaces); 0.4–7.6 m (bulk solids) |
|---|---|
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Output | 4–20 mA, or 4–20 mA + 2 NPN |
| Supply | 12–28 V DC, 75 mA |
| Approvals | Class I Div 2, Groups A–D; IP65 |
Specification
| Operating range | 0.4–15.2 m (liquids and hard flat surfaces); 0.4–7.6 m (bulk solids) |
|---|---|
| Beam angle | 9° off axis |
| Frequency | 43 kHz |
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Response time | Programmable, 20 ms minimum |
| Output | 4–20 mA, or 4–20 mA with 2 NPN outputs |
| Supply | 12–28 V DC, 75 mA at 24 V DC |
| Connection | 4- or 5-conductor shielded cable (1.8 m standard) or micro-connector |
| Materials | PC/PET blend transducer and upper housing |
| Process connection | 3 in NPT (¾ in NPT conduit) |
| Operating temperature | −40 to +60 °C |
| Protection / approvals | IP65; Class I Div 2, Groups A, B, C, D |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG IRU-3430 is a higher-power ultrasonic level transmitter for longer ranges: it measures liquids and hard, flat surfaces from 0.4 to 15.2 m and bulk solids up to 7.6 m, with ±0.25% accuracy and 2.5 mm resolution. Built-in compensation handles temperature, humidity and agitators, and set-up is simple with AutoSense software.
It mounts in a 3 in NPT port, gives a 4–20 mA output (IRU-3433) or 4–20 mA plus two NPN switch outputs (IRU-3435), runs on 12–28 V DC, is rated IP65 and is approved for Class I Div 2 locations.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
