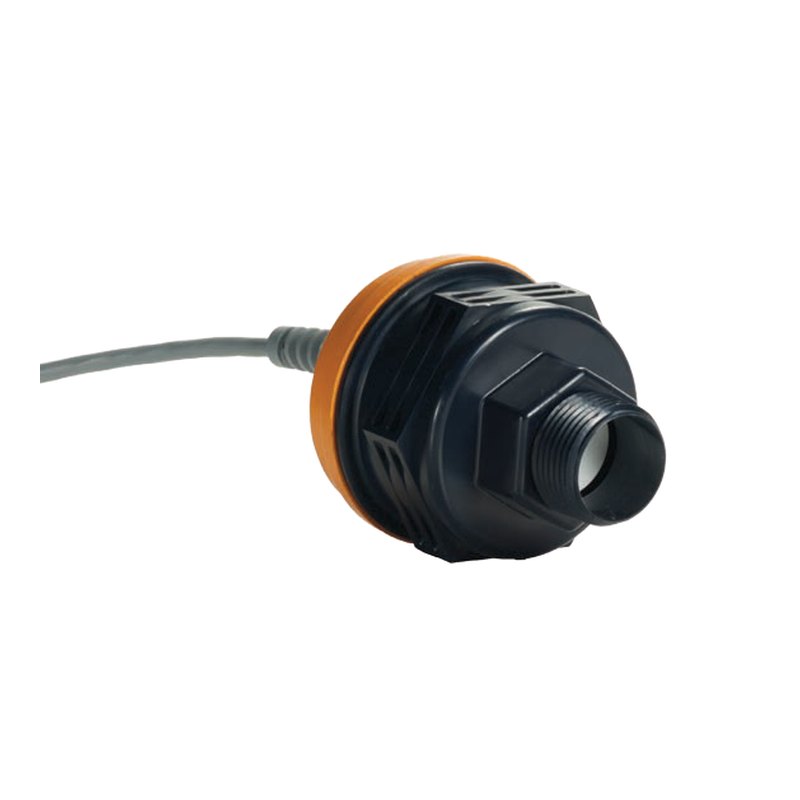

APG IRU-5000 short-range ultrasonic level sensor, 102–2,007 mm, for small tanks and totes
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA, Voltage
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1473 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | IRU-5000 (IRU-5413/5415/5423/5425/5419/5429) |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA, Voltage |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| High-frequency (143 kHz) sensor for short ranges in small tanks and totes | |
| Works on liquids and solids; level, volume, presence, proximity and distance | |
| AutoSense software and internal temperature compensation | |
| 1 in or 2 in NPT PVDF (Kynar) mounting |
Applications
| Level in IBC totes, day tanks and small chemical tanks | |
| Short-range distance and presence detection |
Key specifications
| Range | 102–2,007 mm |
|---|---|
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Output | 4–20 mA; 4–20 mA + 2 NPN; or 0–2.5 / 0–5 V |
| Supply | 12–28 V DC, 75 mA |
| Approvals | Class I Div 2 Groups C, D T6; Class I Zone 2 AEx nA IIB T6 (4–20 mA models); IP65 |
Specification
| Operating range | 102–2,007 mm (4–79 in) |
|---|---|
| Beam angle | 9° off axis |
| Frequency | 143 kHz |
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Response time | Programmable, 20 ms minimum |
| Output | 4–20 mA; 4–20 mA with 2 NPN; 0–2.5 V / 0–5 V (voltage output not hazardous-area rated) |
| Supply | 12–28 V DC, 75 mA at 24 V DC |
| Connection | 4- or 5-conductor shielded cable (1.8 m standard) or micro-connector |
| Process connection | 1 in or 2 in NPT, PVDF |
| Operating temperature | −40 to +60 °C |
| Protection / approvals | IP65; Class I Div 2 Groups C, D T6; Ex nA IIB T6; Class I Zone 2 AEx nA IIB T6 (IRU-5413/5415/5423/5425) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG IRU-5000 is a short-range ultrasonic level sensor for small tanks and totes, measuring liquids and solids from 102 mm to about 2 m with ±0.25% accuracy and 2.5 mm resolution. Its 143 kHz transducer gives a narrow 9° beam, and built-in compensation handles temperature, humidity and agitators.
It mounts in a 1 in or 2 in NPT port and offers 4–20 mA, 4–20 mA with two NPN outputs, or a 0–5 V output. The 4–20 mA models are non-incendive for Class I Div 2 and Zone 2 locations.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
