APG IRU-6429 ultrasonic level sensor for data loggers, 0.3–9.1 m, 0–5 V, excitation input
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: RS-232, Voltage
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1474 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | IRU-6429 (IRU-6429S) |
| Technical | |
| Type | Level |
| Signal / Protocol | RS-232, Voltage |
| Hazardous area | General purpose |
Datasheet
Technical features
| Excitation input wakes the sensor for a reading: low power use with battery or solar data loggers | |
| Works on liquids and solids; level, volume, presence and distance | |
| AutoSense software and internal temperature compensation | |
| PVDF (Kynar)-faced ceramic transducer, 2 in NPT mount |
Applications
| Remote tank, well and river level monitoring with data loggers | |
| Solar- or battery-powered telemetry sites |
Key specifications
| Range | 0.3–9.1 m |
|---|---|
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Output | 0–2.5 V / 0–5 V; RS-232 (6429S) |
| Supply | 12–28 V DC, 75 mA |
| Enclosure | PVDF transducer, IP65 |
Specification
| Operating range | 0.3–9.1 m |
|---|---|
| Beam angle | 9° off axis |
| Frequency | 69 kHz |
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Response time | Programmable, 20 ms minimum |
| Output | 0–2.5 V / 0–5 V; RS-232 on IRU-6429S |
| Input | Excitation (wake-up) for data logging |
| Supply | 12–28 V DC, 75 mA at 24 V DC and 4 Hz |
| Connection | 4- or 5-conductor shielded cable (1.8 m standard), or 5- or 8-pin micro-connector |
| Process connection | 2 in NPT |
| Operating temperature | −40 to +60 °C |
| Protection / approvals | IP65; CSA General Purpose |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

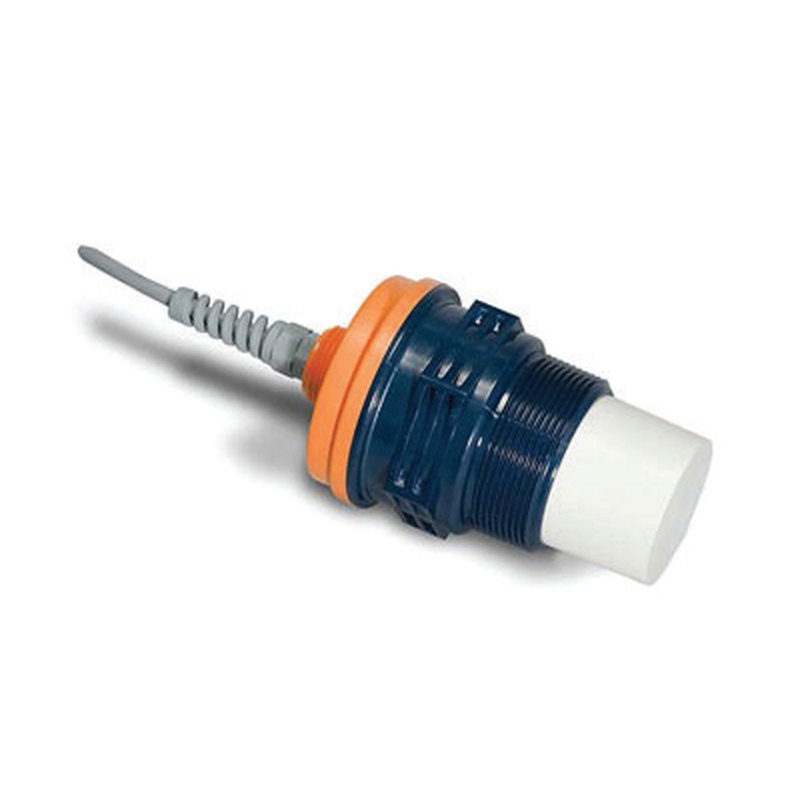

Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG IRU-6429 is an ultrasonic level sensor made for data loggers: an excitation line wakes it only when a reading is needed, keeping power use low at battery or solar sites. It measures liquids and solids from 0.3 to 9.1 m with ±0.25% accuracy and 2.5 mm resolution.
It gives a 0–2.5 V or 0–5 V output (RS-232 on the 6429S), runs on 12–28 V DC, and has a PVDF-faced transducer in a 2 in NPT IP65 housing.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
