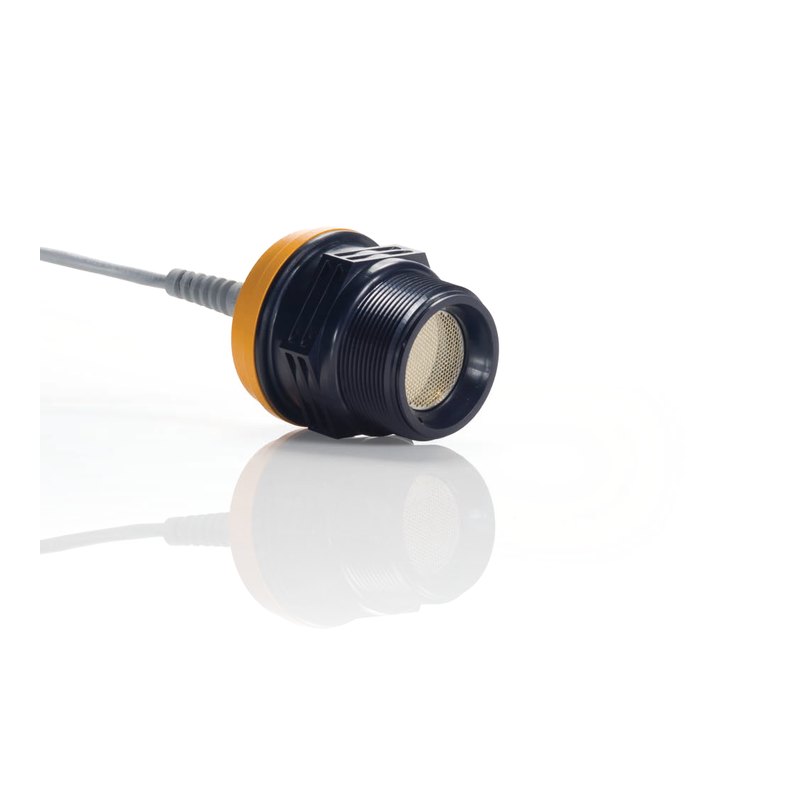

APG IRU-9400 ultrasonic sensor for soft and difficult targets, 0.15–10.7 m, indoor
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA, RS-232, Voltage
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1475 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | IRU-9400 (IRU-9423/9425/9429) |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA, RS-232, Voltage |
| Hazardous area | General purpose |
Datasheet
Technical features
| More sensitive 50 kHz transducer detects non-reflective and soft surfaces | |
| Short 150 mm blanking with a range to 10.7 m | |
| Easily configured for obstacle and object detection | |
| Internal temperature compensation; works on solids and liquids | |
| Recommended for indoor use |
Applications
| Level of soft or foamy solids and powders indoors | |
| Object, vehicle and obstacle detection |
Key specifications
| Range | 0.15–10.67 m |
|---|---|
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Output | 4–20 mA; 4–20 mA + 2 NPN; 0–2.5 / 0–5 V |
| Supply | 12–28 V DC, 75 mA |
| Enclosure | PC/PET, NEMA 12 (indoor) |
Specification
| Operating range | 0.15–10.67 m |
|---|---|
| Beam angle | 9° off axis |
| Frequency | 50 kHz |
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Response time | Programmable, 20 ms minimum |
| Output | 4–20 mA; 4–20 mA with 2 NPN; 0–2.5 V / 0–5 V (software selectable); RS-232 on 9429S |
| Supply | 12–28 V DC, 75 mA at 24 V DC |
| Connection | 4-, 5- or 8-conductor shielded cable (1.8 m standard) or micro-connector |
| Process connection | 2 in NPT |
| Operating temperature | −40 to +60 °C |
| Protection / approvals | NEMA 12; CSA General Purpose |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG IRU-9400 is an ultrasonic sensor with a more sensitive 50 kHz transducer for difficult, soft or poorly reflecting targets. It measures liquids, solids and objects from 0.15 to 10.7 m with ±0.25% accuracy and 2.5 mm resolution and is easily set up for obstacle detection.
Outputs are 4–20 mA, 4–20 mA with two NPN switches, or 0–2.5 / 0–5 V. It runs on 12–28 V DC, mounts with a 2 in NPT thread and has a NEMA 12 housing intended for indoor use.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
