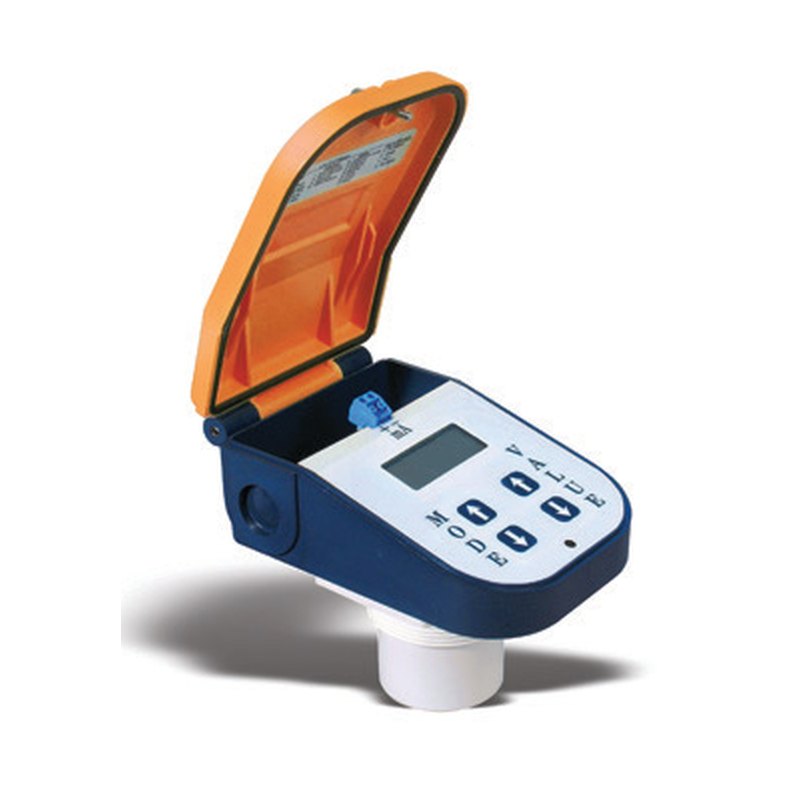

APG LPU-2127 loop-powered ultrasonic level transmitter with keypad and LCD, 0.3–7.6 m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1476 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | LPU-2127 |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Two-wire, loop-powered 4–20 mA | no separate power cable |
|---|---|
| Built-in keypad and LCD for programming without a computer | |
| PVDF (Kynar)-faced ceramic transducer, 2 in NPT mount | |
| Internal temperature compensation | |
Applications
| Continuous level in water, chemical and fuel tanks | |
| Distance measurement where only a 2-wire loop is available |
Key specifications
| Range | 0.3–7.6 m liquids; 0.3–3 m solids |
|---|---|
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Output | 4–20 mA, 2-wire loop powered |
| Supply | 12–28 V DC |
| Approvals | Class I Div 2 Groups C, D; Class I Zone 2 AEx nA IIB T6; IP65 |
Specification
| Operating range | 0.3–7.6 m (liquids); 0.3–3 m (solids) |
|---|---|
| Beam angle | 9° off axis |
| Frequency | 69 kHz |
| Accuracy | ±0.25% of detected range |
| Resolution | 2.5 mm |
| Response / sample time | 0.6 s (at 20 mA) to 3 s (at 4 mA) |
| Output | 4–20 mA loop powered; max. load 600 Ω at 24 V DC, 150 Ω at 12 V DC |
| Supply | 12–28 V DC |
| Connection | 2-terminal connector |
| Materials | PVDF transducer housing; PET upper housing |
| Process connection | 2 in NPT |
| Operating temperature | −40 to +60 °C |
| Protection / approvals | IP65; Class I Div 2 Groups C & D; Class I Zone 2 AEx nA IIB T6 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG LPU-2127 is a two-wire, loop-powered ultrasonic level transmitter with a built-in keypad and LCD, so it can be set up on site without a computer. It measures liquids from 0.3 to 7.6 m and solids up to 3 m with ±0.25% accuracy and 2.5 mm resolution.
It mounts with a 2 in NPT thread, has a PVDF-faced transducer and an IP65 housing, runs from a 12–28 V DC loop and is approved for Class I Div 2 and Zone 2 hazardous locations.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
