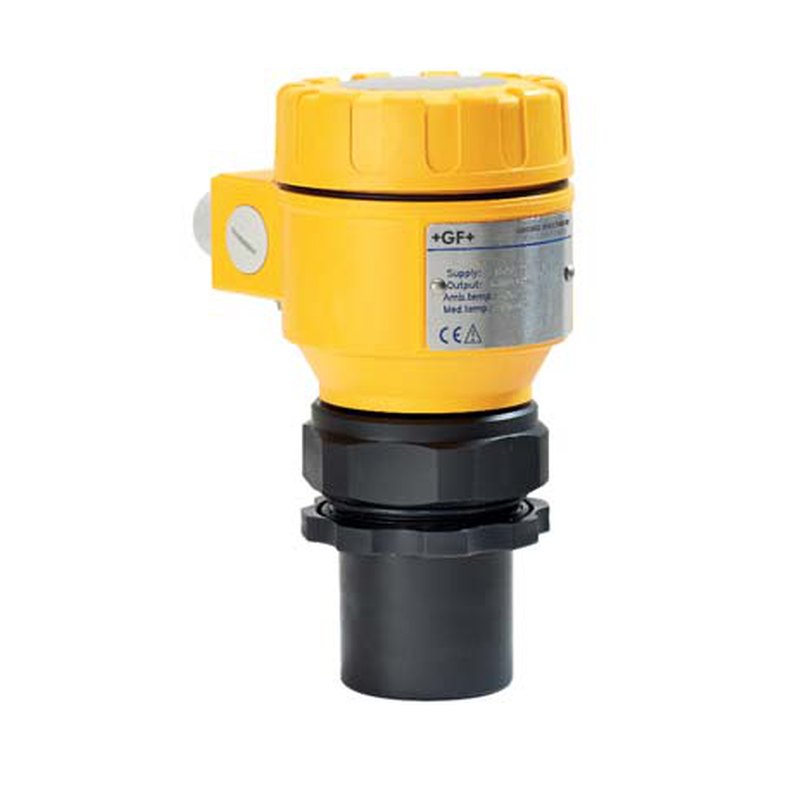

GF Signet 2260 two-wire ultrasonic level transmitter, 4 / 6 / 15 m, 4–20 mA, optional HART and relay
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA, HART, Relay / switch
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1479 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | GF Signet |
| Model | 2260 |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA, HART, Relay / switch |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Transducer, electronics and display in one housing | |
| Narrow 5–6° beam; level, volume and open channel flow | |
| Fully temperature-compensated electronics; 32-point linearization | |
| Plug-in keypad and graphic display with quick-set menu | |
| SPDT relay for high/low alarm; secondary lightning protection | |
| PP or PVDF sensor body for chemical resistance |
Applications
| Water and wastewater tanks | river water, seawater, potable, demineralized and treated water |
|---|---|
| Chemical storage tanks | |
| Open channel flow | |
Construction
| Sensor body | PP (EPDM seal) or PVDF (FPM seal) |
|---|---|
| Housing | PBT |
| Protection | Sensor IP68; housing IP67 |
| Approvals | CE, RoHS; ATEX versions (PVDF, HART) |
Key specifications
| Range | 0.2–4 m, 0.25–6 m or 0.45–15 m |
|---|---|
| Accuracy | ±(0.2% of measured distance + 0.05% of range) |
| Output | 2-wire 4–20 mA; optional HART and SPDT relay |
| Supply | 12–36 V DC |
| Sensor material | PP or PVDF |
| Protection | Sensor IP68, housing IP67; ATEX intrinsically safe option |
Measurement
| Accuracy | ±(0.2% of measured distance + 0.05% of range), under optimal conditions |
|---|---|
| Resolution | 1 mm below 2 m; 2 mm 2–5 m; 5 mm 5–10 m; 10 mm above 10 m |
| Process temperature | −30 to +90 °C |
| Ambient temperature | −25 to +70 °C |
| Process pressure | 0.3 to 3 bar absolute |
Electrical
| Output | 2-wire 4–20 mA, max. 600 Ω; HART (Rt ≥ 250 Ω) |
|---|---|
| Relay | SPDT, 250 V AC, 3 A AC1 |
| Supply | 12 to 36 V DC |
| Cable entry | 2 × M20 × 1.5 plastic glands, cable 6–12 mm |
Ranges
| Version | Range | Frequency | Beam angle | Process connection |
|---|---|---|---|---|
| 2260-…-4 | 0.2–4 m | 80 kHz | 6° | 1½ in BSP / NPT |
| 2260-…-6 | 0.25–6 m | 80 kHz | 5° | 2 in BSP / NPT |
| 2260-…-15 | 0.45–15 m | 40 kHz | 5° | DN125 / 5 in flange |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of GF Signet, used with permission (source) — background removed by Argonmark. All photo credits
Description
The GF Signet 2260 is a two-wire ultrasonic level transmitter that combines the transducer, electronics and a plug-in display in one housing. Three versions measure up to 4, 6 or 15 m with a narrow 5–6° beam and an accuracy of ±(0.2% of distance + 0.05% of range), and it can calculate volume and open channel flow using a 32-point linearization.
It gives a 4–20 mA loop output, with HART and an SPDT alarm relay as options, runs on 12–36 V DC and has a PP or PVDF sensor body (IP68) for chemical resistance. ATEX intrinsically safe versions are available.
Argonmark Ltd supplies GF Signet instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
