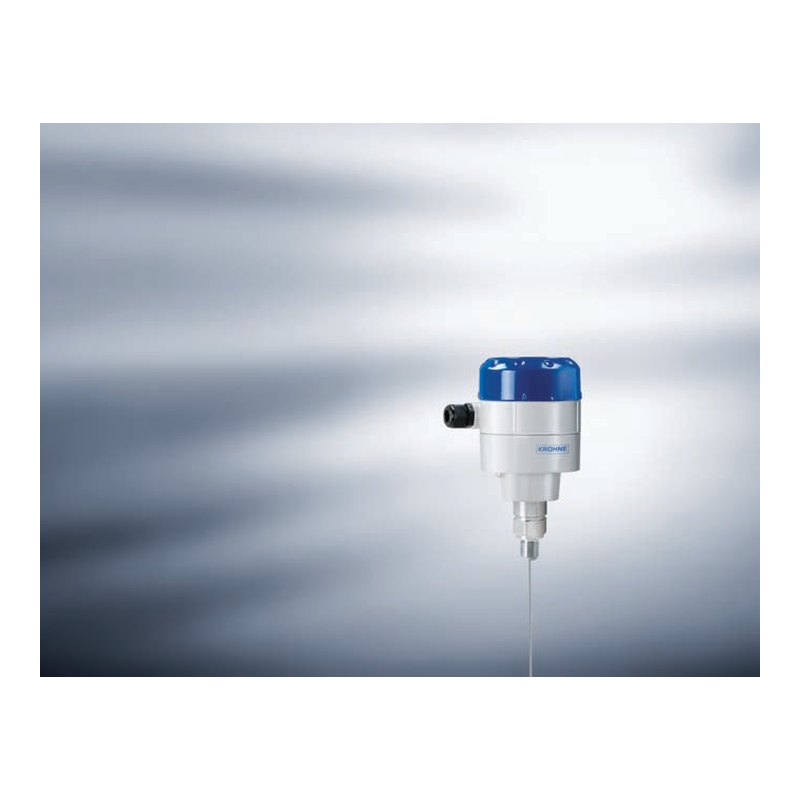

KROHNE OPTIFLEX 1100 C guided radar (TDR) level transmitter, 2-wire 4–20 mA, liquids to 20 m, solids to 10 m
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1480 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | KROHNE |
| Model | OPTIFLEX 1100 C |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA |
| Hazardous area | General purpose |
Datasheet
Technical features
| Low-cost 2-wire TDR level meter for general-purpose (non-hazardous) areas | |
| No calibration needed | cut the probe to length and run the 5-step quick set-up |
|---|---|
| Menu operated through the window without opening the housing; LCD in 9 languages | |
| Volume measurement with a 30-point strapping table | |
| Coaxial probe for low-viscosity liquids, Ø2 mm cable for liquids, Ø4 mm cable for powders and granulates; all probes can be shortened on site | |
Applications
| Buffer tanks, collectors and simple process vessels | |
| Water, oil, glycol and underground storage tanks; volume with strapping table | |
| Silos of plastic pellets, powders and granulates (quarrying, agriculture) | |
| OEM lubrication systems, washing and filling machines |
Key specifications
| Measuring range | Liquids up to 20 m; solids up to 10 m |
|---|---|
| Accuracy | ±10 mm (≤ 10 m); ±0.1% of distance (> 10 m) |
| Output | 4–20 mA, 2-wire loop powered |
| Process conditions | −50 to +100 °C; −1 to 16 barg |
| Wetted materials | 316L / 316 stainless steel, EPDM seal |
| Process connection | G ¾–1 A or ¾–1 NPT |
Converter
| Measuring principle | TDR (time domain reflectometry) |
|---|---|
| Ambient temperature | −40 to +80 °C (display −20 to +60 °C) |
| Storage temperature | −50 to +85 °C |
| Protection | IP66/67 |
| Housing | Polyester-coated aluminium |
| Cable entry | M20 × 1.5 (gland included) or ½ NPT |
| Supply | 14–30 V DC; load RL ≤ (U − 14 V) / 22 mA |
| Output | 4–20 mA or 3.8–20.5 mA; resolution ±1 µA; error 22 mA / 3.6 mA / hold |
| Display | 128 × 64 pixel LCD with 4-button keypad; 9 languages |
| Weight | 3.3 kg |
| Approvals | CE; vibration EN 60068-2-27/-29/-34; EMC EN 61326-1 |
Accuracy
| Accuracy | ±10 mm up to 10 m; ±0.1% of measured distance above 10 m (Ø4 mm cable: ±20 mm) |
|---|---|
| Resolution | 1 mm |
| Repeatability | ±2 mm |
| Max. rate of change | 10 m/min |
Probes
| Parameter | Coaxial Ø14 mm | Single cable Ø2 mm | Single cable Ø4 mm |
|---|---|---|---|
| Application | Low-viscosity liquids | Liquids | Solids (powders, granulates) |
| Measuring range | 0.73–4.067 m | 1–20 m | 1–10 m |
| Viscosity | ≤ 500 mPa·s | ≤ 10,000 mPa·s | – |
| Dielectric constant | ≥ 1.6 | ≥ 2.1 | ≥ 2.1 |
| Probe material | 1.4404 / 316L | 1.4401 / 316 | 1.4401 / 316 |
| Standard lengths | 730, 1,397, 2,065, 2,732, 3,400, 4,067 mm | 1–20 m | 1–10 m |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of KROHNE, used with permission (source) — background removed by Argonmark. All photo credits
Description
The KROHNE OPTIFLEX 1100 C is a cost-effective two-wire guided radar (TDR) level transmitter for liquids, pastes, powders and granulates in non-hazardous areas. It measures liquids up to 20 m and solids up to 10 m with ±10 mm accuracy, needs no calibration (only the probe length and a 5-step set-up) and can show volume using a 30-point strapping table.
It works at −50 to +100 °C and up to 16 barg with stainless steel probes and process connections (G or NPT ¾–1 in). It gives a loop-powered 4–20 mA output from a 14–30 V DC supply and has an IP66/67 aluminium housing with an LCD in nine languages.
Argonmark Ltd supplies KROHNE instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
