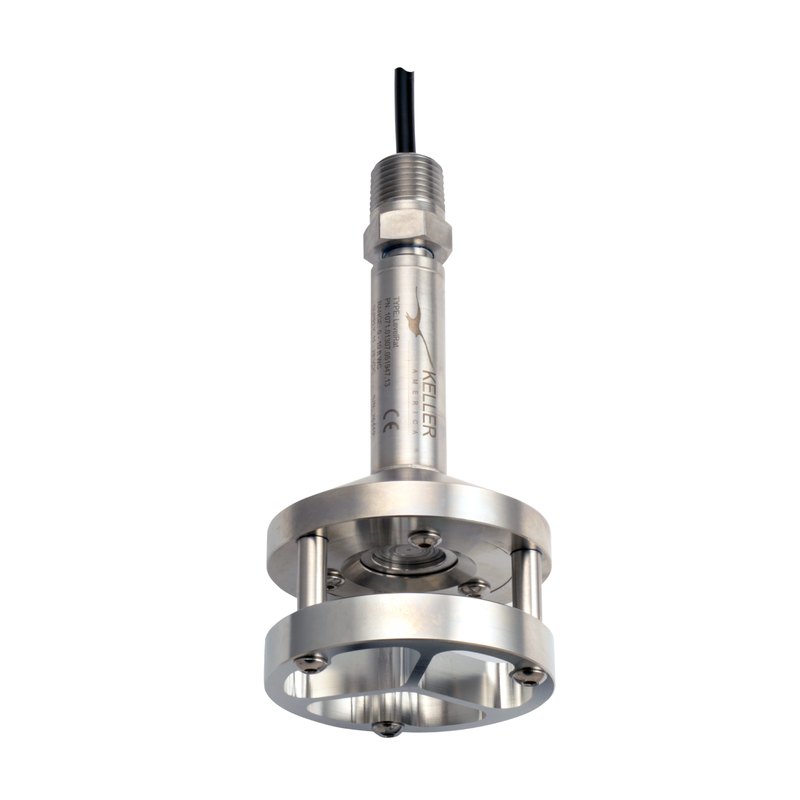

Keller LevelRat non-fouling submersible level transmitter for wastewater, intrinsically safe option
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA, Modbus, RS-485, Voltage
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1482 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Keller |
| Model | LevelRat |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA, Modbus, RS-485, Voltage |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Large non-fouling diaphragm resists clogging and puncture in sewage and sludge | |
| Optional protective spacer for extra diaphragm protection | |
| Lightning protection included on 4–20 mA models | |
| Optional RS485 Modbus interface (up to 128 transmitters on one bus); optional user-rangeable output | |
| 316L stainless steel standard, titanium for severe service | |
| Custom calibration for liquids other than water |
Applications
| Sewage lift stations and wet wells | |
| Wastewater treatment basins, sludge and grease-laden liquids | |
| Hazardous-area wet wells (IS version) |
Key specifications
| Range | 0–1.5 m to 0–30.5 m water (0–5 to 0–100 ft WC) |
|---|---|
| Accuracy | ±0.25% FS static; ±0.5% FS total error band |
| Output | 4–20 mA (IS approved), 4–20 mA + RS485, or 0–5 / 0–10 V + RS485 |
| Supply | 8–32 V DC (11–30 V for IS / lightning-protected) |
| Wetted materials | 316L SS (titanium optional), Kynar |
| Approvals | UL/cUL IS Class I Div 1 Groups A–D, Class II Div 1 E–G, Class III; IP68 |
Specification
| Ranges | Any range from 0–5 to 0–100 ft WC (≈ 0–1.5 to 0–30.5 m) |
|---|---|
| Static accuracy | ±0.25% FS at 25 °C |
| Total error band | ±0.5% FS over the compensated range |
| Outputs and supply | 4–20 mA IS: 11–30 V DC; 4–20 mA + RS485: 11–32 V DC with lightning protection, 8–32 V DC without; 0–5 V + RS485: 8–32 V DC; 0–10 V + RS485: 13–32 V DC |
| Start-up time | 600 ms |
| Communication | KELLER bus, Modbus RTU (RS485 versions) |
| Operating temperature | −10 to +60 °C |
| Compensated temperature | −10 to +80 °C |
| Protection | IP68 |
| Wetted materials | 316L stainless steel (titanium optional), Kynar |
| Cable and sealing | PE & EPDM (water, wastewater); Hytrel & Viton (hydrocarbons); Tefzel & Viton or EPDM (chemicals) |
| Certification | CE; 4–20 mA IS: UL/cUL Class I Div 1 Groups A–D, Class II Div 1 Groups E–G, Class III |
| Accessories | Protective spacer, stabilizing weight, conduit fitting, drying tube, bellows, cable hanger, termination enclosure, sour gas trap, surge protector, process meter |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Keller, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Keller LevelRat is a submersible level transmitter designed for wastewater, with a large non-fouling diaphragm that resists clogging and puncture in sewage, sludge and grease. It covers ranges from 0–5 ft (about 1.5 m) to 0–100 ft (about 30.5 m) of water with ±0.25% FS static accuracy and a ±0.5% FS total error band.
Outputs are 4–20 mA (UL/cUL intrinsically safe for Class I Div 1), 4–20 mA with RS485 Modbus, or 0–5/10 V with RS485. It is built in 316L stainless steel (titanium optional) to IP68, and lightning protection is included on 4–20 mA models.
Argonmark Ltd supplies Keller instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
