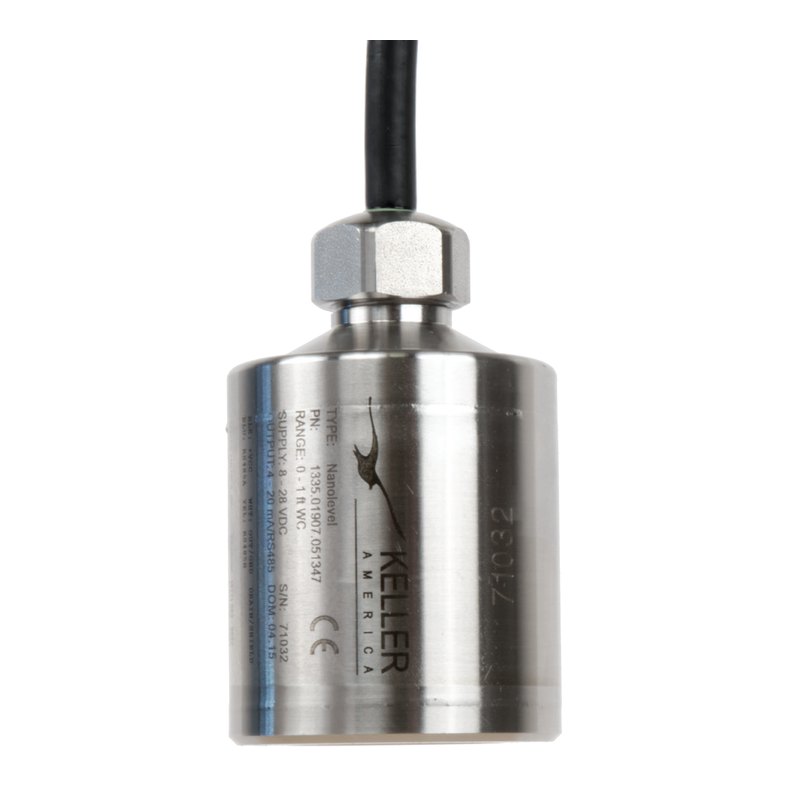

Keller Nanolevel ceramic submersible level transmitter for very low ranges, 0–100 mm to 0–3 m water
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA, Modbus, RS-485
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1485 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Keller |
| Model | Nanolevel |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA, Modbus, RS-485 |
| Hazardous area | General purpose |
Datasheet
Technical features
| Ceramic capacitive sensor gives excellent stability on full-scale ranges as low as 4 in (about 100 mm) of water | |
| 16-bit digital error correction | |
| Dual 4–20 mA and RS485 outputs; up to 128 transmitters on one bus; user-rangeable output (converter cable required) | |
| Works with any standard 2-wire 4–20 mA loop supplying 8–28 V DC |
Applications
| Pump control and level in shallow tanks | |
| Weirs and open channels | |
| Cooling tower basins |
Key specifications
| Range | 0–102 mm to 0–3.05 m water (0–4 to 0–120 in WC) |
|---|---|
| Accuracy | ±0.1% FS static (±0.05% opt.); ±0.25% total error band (±0.1% opt.) |
| Output | 4–20 mA + RS485 (Modbus) |
| Supply | 8–28 V DC |
| Sensor | Gold-plated ceramic capacitive diaphragm |
| Protection | IP68, 316L SS housing |
Specification
| Ranges | Any range from 0–4 to 0–120 in WC (≈ 0–102 mm to 0–3.05 m) |
|---|---|
| Static accuracy | ±0.1% FS (±0.05% FS optional) at 25 °C |
| Total error band | ±0.25% (±0.1% optional) of basic range over 10–50 °C |
| Output | 4–20 mA + RS485; digital resolution 0.002% |
| Supply | 8–28 V DC; load < (U − 8 V) / 0.022 A |
| Operating temperature | 0 to 60 °C |
| Compensated temperature | 10 to 50 °C |
| Protection | IP68 |
| Wetted materials | 316L stainless steel, gold-plated ceramic, nitrile, fluorocarbon |
| Cable | Polyethylene (general), Hytrel (hydrocarbons), Tefzel (chemicals) |
| Certification | CE |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Keller, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Keller Nanolevel is a submersible level transmitter for very low ranges, below 10 ft of water. Its gold-plated ceramic capacitive sensor stays stable on full-scale ranges as low as 4 in (about 100 mm) and up to 120 in (about 3 m), with ±0.1% FS static accuracy and a ±0.25% total error band (±0.05% / ±0.1% optional).
It suits pump control and level monitoring in shallow tanks, weirs and cooling towers, gives dual 4–20 mA and RS485 outputs, runs from any 8–28 V DC loop, and has a 316L stainless steel IP68 housing.
Argonmark Ltd supplies Keller instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
