Mercoid ULT explosion-proof ultrasonic level transmitter, 7.5 m or 10 m, 2-wire 4–20 mA, tank mapping
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1486 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Mercoid |
| Model | ULT (ULT-11, ULT-21) |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Non-contact measurement of compatible liquids (not for powders or bulk solids) | |
| Mapping software narrows the effective measuring zone to a 76 mm (3 in) column, ignoring ladders, pipes and other tank intrusions | |
| 6-digit LCD and 4-button menu; calibrate by tank dimensions or by filling and emptying | |
| Selectable failsafe on lost echo (4, 20, 21, 22 mA or last value) and diagnostics | |
| PVDF sensor, 303 SS process connection |
Applications
| Liquid level in fuel, chemical and water storage tanks in hazardous areas | |
| Tanks with ladders, pipes and other internal obstructions |
Key specifications
| Range | 7.5 m (ULT-11) or 10 m (ULT-21) |
|---|---|
| Accuracy | ±0.2% of maximum range |
| Resolution | 2 mm |
| Output | 4–20 mA or 20–4 mA, 2-wire |
| Supply | 18–28 V DC (loop) |
| Approvals | FM explosion-proof Class I Div 1 Groups B–D, Class II/III Div 1 Groups E–G; NEMA 4X (IP66); CE |
Specification
| Service | Compatible liquids; not for powder or bulk solids |
|---|---|
| Ranges | 7.5 m (ULT-11); 10 m (ULT-21) |
| Accuracy | ±0.2% of maximum range |
| Resolution | 2 mm |
| Blind zone | Under 20 cm |
| Beam width | 76 mm diameter (mapped) |
| Temperature | Ambient −40 to +60 °C; process −20 to +60 °C; compensated −40 to +60 °C |
| Pressure | 2 bar up to 25 °C, derated 0.115 bar per °C above |
| Supply | 18–28 V DC, 2-wire |
| Output | 4–20 mA or 20–4 mA; max. loop resistance 250 Ω at 24 V DC |
| Failsafe | After 30 s lost echo: 4, 20, 21, 22 mA or last value |
| Wetted materials | PVDF sensor; 303 SS process connection; fluoroelastomer O-ring |
| Process connection | 2 in NPT male (BSPT optional); vertical mounting |
| Conduit | 2 × ½ in NPT female (M20 optional) |
| Enclosure | NEMA 4X (IP66), explosion-proof Class I Div 1 Groups B, C, D; Class II/III Div 1 Groups E, F, G |
| Display | 6-character LCD; units in, cm, ft, m, % |
| Weight | 1.8 kg |
| Approvals | CE, FM |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

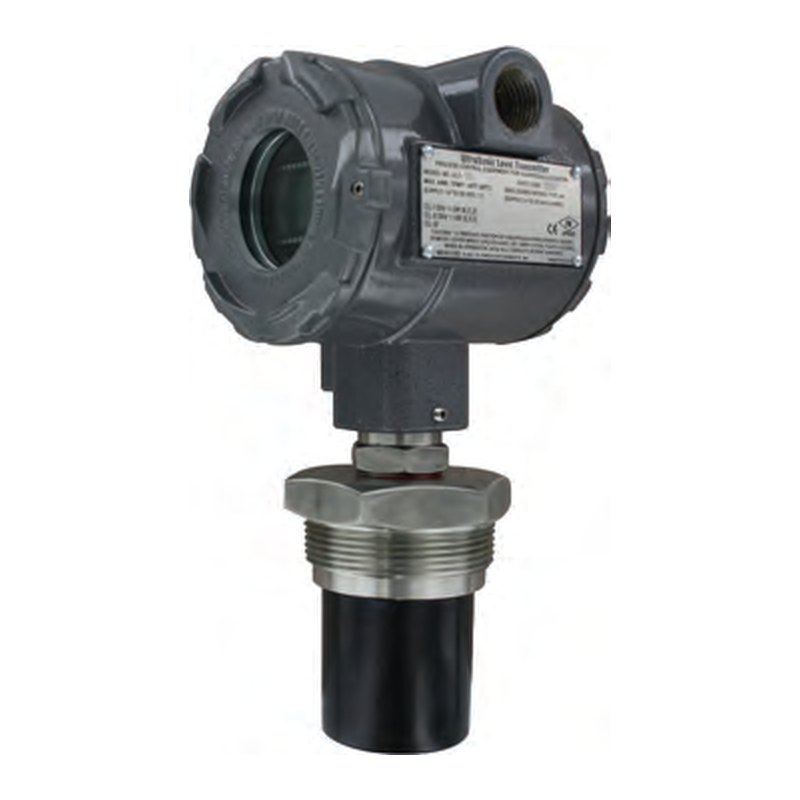

Photo: courtesy of Mercoid, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Mercoid ULT is an explosion-proof ultrasonic level transmitter for liquids, approved by FM for Class I Div 1 hazardous locations. It measures up to 7.5 m (ULT-11) or 10 m (ULT-21) with ±0.2% of range accuracy and 2 mm resolution, and its mapping software limits the measuring zone to a 76 mm column so ladders, pipes and other tank intrusions do not disturb the reading.
It is a two-wire 4–20 mA device powered from an 18–28 V DC loop, with a 6-digit LCD, simple four-button set-up and a selectable failsafe output on loss of echo. It mounts in a 2 in NPT port and has a PVDF sensor and an IP66 housing.
Argonmark Ltd supplies Mercoid instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
