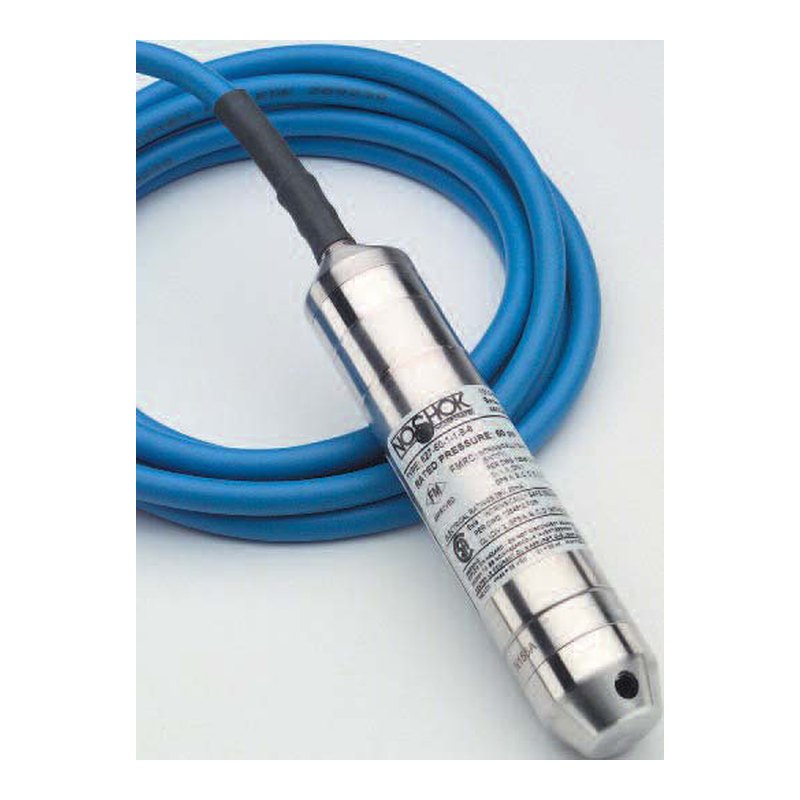

NOSHOK 627 Series intrinsically safe submersible level transmitter, FM/CSA, 4–20 mA, all-welded 316 SS
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1488 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | NOSHOK |
| Model | 627 Series |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Approved for hazardous locations | intrinsically safe, dust ignition-proof and non-incendive |
|---|---|
| All-welded 316 SS pressure chamber with no internal O-rings, gaskets or seals | |
| Diffused semiconductor / thin-film sensor for long-term stability | |
| Reverse polarity, over-voltage and short-circuit protected | |
| Nosecone, weighted nosecone or ½ in NPT adapter | |
Applications
| Water and wastewater in hazardous areas | |
| Chemical tanks | |
| Methane wells and landfill leachate | |
| Marine applications |
Key specifications
| Range | 0–50 inH2O (≈ 1.27 m water) to 0–400 psig (≈ 27.6 bar) |
|---|---|
| Accuracy | ±0.25% FS BFSL (±0.125% optional, ≥ 4 psi) |
| Output | 4–20 mA, 2-wire |
| Supply | 10–30 V DC |
| Wetted materials | Welded 316 SS (17-4PH diaphragm on high ranges); FEP or PU cable |
| Approvals | FM and CSA: IS Class I, II, III Div 1 Groups A–G; Class I Zone 0 AEx ia IIC; IP68 |
Specification
| Ranges | 0–50 inH2O to 0–400 inH2O; 0–5 psig to 0–400 psig (other ranges to order) |
|---|---|
| Proof / burst pressure | 2 × / 3 × range |
| Accuracy | ±0.25% FS BFSL; ±0.125% FS optional for ranges ≥ 4 psi |
| Hysteresis / repeatability | ≤ ±0.1% FS / ≤ ±0.05% FS |
| Stability | ≤ ±0.2% FS per year, non-accumulating |
| Output | 4–20 mA, 2-wire |
| Supply | 10–30 V DC; load ≤ (U − 10 V) / 0.020 A − cable resistance |
| Temperature | Compensated 0–50 °C (±0.02%/°C zero and span); ambient −10 to +50 °C; media −10 to +60 °C |
| Response time | ≤ 1 ms |
| Durability | > 100 million full-scale cycles |
| Wetted materials | 316 SS housing, diaphragm and cap; 17-4PH diaphragm on high ranges; FEP cable (to 150 psi) or polyurethane cable (200 psi and above) |
| Protection | IP68, NEMA 6P continuously submersible; EMC EN 61326 |
| Hazardous approvals | FM and CSA: IS Class I, II, III Div 1 Groups A–G; Class I Zone 0 AEx ia IIC; dust ignition-proof Class II/III Div 1 E–G; non-incendive Class I Div 2 A–D |
| Weight | ≈ 200 g with standard nosecone (cable extra) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of NOSHOK, used with permission (source) — background removed by Argonmark. All photo credits
Description
The NOSHOK 627 Series is an intrinsically safe submersible level transmitter approved by FM and CSA for Class I, II and III Div 1 and Class I Zone 0 hazardous locations. Its pressure chamber is welded 316 stainless steel with no internal O-rings, gaskets or seals, and its thin-film sensor gives ±0.25% FS accuracy (±0.125% optional) with ≤ 0.2% FS drift per year.
Ranges run from 0–50 inH2O (about 1.3 m of water) up to several hundred psig. It is a two-wire 4–20 mA device powered at 10–30 V DC, rated IP68 for continuous submersion, and available with a nosecone, weighted nosecone or NPT adapter.
Argonmark Ltd supplies NOSHOK instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
