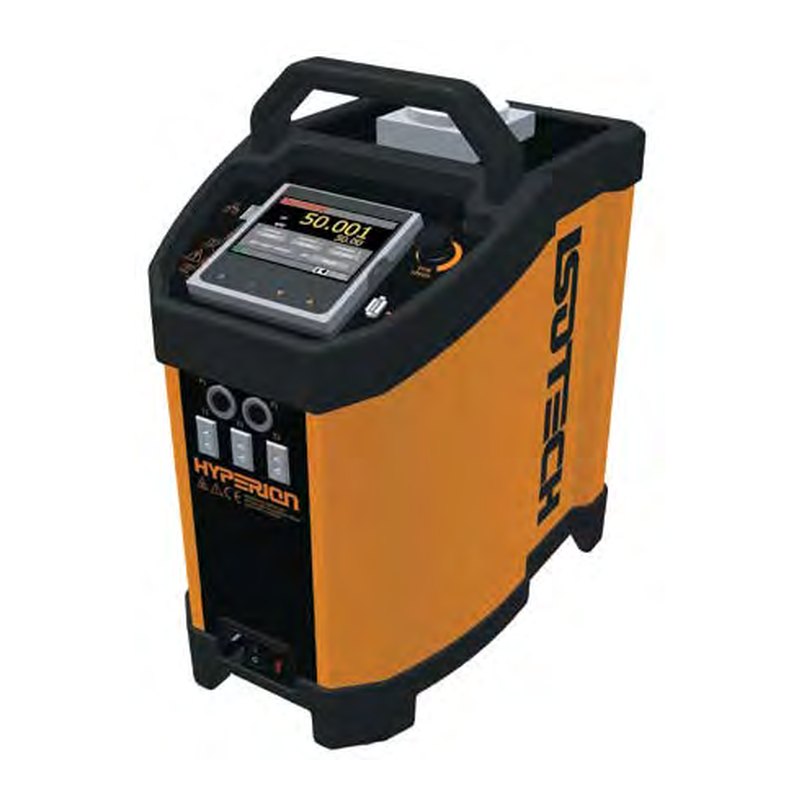

Isotech Hyperion 4936 multifunction temperature calibrator, −25 to 140 °C, dry block and liquid bath
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1491 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Isotech |
| Model | Hyperion 4936 (ISOCAL-6) |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Six functions in one unit | dry block, stirred liquid bath, stirred ice/water bath (Hyperion), infrared blackbody target, surface sensor calibration and ITS-90 fixed-point cell apparatus |
|---|---|
| Large 65 mm × 160 mm deep volume | calibrate several sensors at once, or odd-shaped probes directly in stirred liquid |
| Calibrate the whole loop (sensor plus instrument) with a heat source instead of an electrical simulator | |
| Basic (controller only), Site (adds reference-probe indicator and one test-thermostat input) and Advanced versions | |
| Advanced | up to 3 extra inputs for units under test (PRT, thermocouple, mA), automatic cycling, data logging to USB, offset elimination (block follows reference), Ethernet + USB, web server, tamper-proof data |
| I-Cal Easy LOG software included | |
Applications
| Calibration of PRTs, thermocouples, thermometers and temperature loops on site or in the lab | |
| 0 °C stirred ice-bath checks of reference standards | |
| Infrared thermometer and surface sensor checks |
Key specifications
| Temperature range | −25 to 140 °C (min. 45 °C below ambient) |
|---|---|
| Stability | ±0.005 °C (Advanced); ±0.03 °C (Basic/Site) |
| Calibration volume | 65 mm Ø × 160 mm deep |
| Uniformity (liquid) | Radial < 0.009 °C; axial < 0.011 °C |
| Power | 115 or 230 V AC, 200 W |
| Weight | 12 kg |
Performance
| Temperature range | −25 to 140 °C in 20 °C ambient (min. 45 °C below ambient; absolute min. −35 °C) |
|---|---|
| Stability, Advanced | ±0.005 °C |
| Advanced, RTD input accuracy | ±0.05 °C |
| Display accuracy (dry block) | 0.15 °C |
| Stability, Basic / Site | ±0.03 °C |
| Advanced, thermocouple inputs | E, J, K, N ±0.2 °C at 660 °C; R ±0.6 °C; S ±0.7 °C; T ±0.2 °C at 150 °C; CJC ±0.35 °C |
| Display resolution | Advanced 0.001 °C; Basic/Site 0.01 °C |
| Stability in other modes | Blackbody ±0.3 °C; surface sensor ±0.5 °C; ITS-90 cells ±0.0005 °C |
| Uniformity, liquid bath | Radial < 0.009 °C; axial < 0.011 °C (40 mm) |
| Uniformity, dry block | Radial < 0.008 °C between wells; axial < 0.040 °C (40 mm) |
| Heating time | −20 to 140 °C: 40 min |
| Cooling time | 140 to 20 °C: 90 min; 20 to −25 °C: 80 min |
General
| Insert | 65 mm Ø × 160 mm; standard insert 8 × 8 mm + 2 × 4.5 mm pockets, 157 mm deep; blank or custom drilled inserts |
|---|---|
| Dimensions | 384 H (incl. handle) × 212 W × 312 D mm |
| Power | 115 or 230 V AC 50/60 Hz, 200 W |
| Weight | 12 kg |
| Accessories | Liquid container kit (stirrer, probe guide, cap), thermometer support kit (8 probes, 5–8 mm); Blackbody target, surface sensor kit with angled PRT; ITS-90 cells (B8 water triple point, slim gallium) and cell holder; Standard PRT 935-14-61/DB, 24 V loop power interface, carrying case; UKAS calibration |
Versions
| Function | Advanced | Site | Basic |
|---|---|---|---|
| PC interface | Ethernet + USB host | Serial | Serial |
| Test thermostat inputs | Two | One | No |
| Independent indicator for reference probe | Yes | Yes | No |
| Inputs for units under test | Up to 3 (2 universal PRT/TC/process, 1 TC) | No | No |
| Automatic temperature cycling / data logging | Yes / to USB | No | No |
| Offset elimination | Yes | No | No |
| Built-in web server; tamper-proof data | Yes | No | No |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Isotech, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Isotech Hyperion 4936 is a portable multifunction temperature calibrator covering −25 °C to 140 °C. Its large 65 mm × 160 mm volume works as a dry block, a stirred liquid bath, a 0 °C stirred ice bath, an infrared blackbody, a surface sensor calibrator or a holder for ITS-90 fixed-point cells. The Advanced version holds ±0.005 °C, and radial uniformity in liquid is better than 0.009 °C.
Basic, Site and Advanced versions add a reference-probe indicator, test-thermostat inputs, inputs for units under test, automatic cycling and data logging. It runs on 115 or 230 V AC and weighs 12 kg.
Argonmark Ltd supplies Isotech instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
