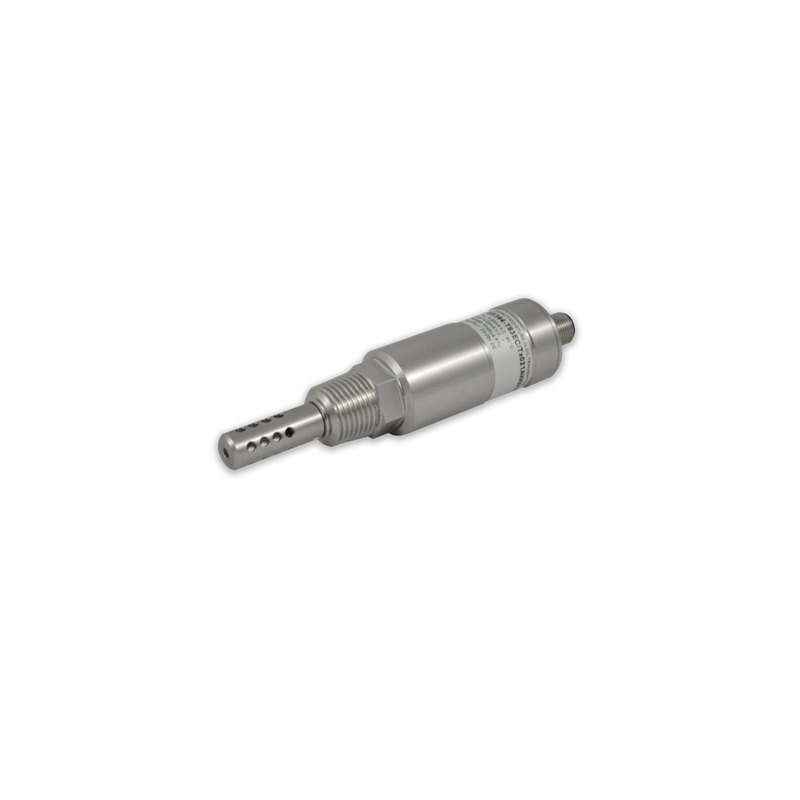

E+E EE364 moisture-in-oil sensor, water activity, ppm water content and temperature, 4–20 mA + Modbus
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Moisture & humidity
- Signal / Protocol: 4–20 mA, Modbus, RS-485
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1492 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | E+E Elektronik |
| Model | EE364 |
| Technical | |
| Type | Moisture & humidity |
| Signal / Protocol | 4–20 mA, Modbus, RS-485 |
| Hazardous area | General purpose |
Datasheet
Technical features
| Online monitoring of moisture in transformer, engine, lubrication and hydraulic oil and diesel fuel | |
| Calculates absolute water content in ppm (mineral transformer oil as standard; customer-specific oil parameters available) | |
| Compact stainless steel enclosure and filter cap; G ½ ISO or ½ in NPT process connection | |
| Two freely scalable 4–20 mA outputs plus Modbus RTU; M12 industrial connector | |
| Set-up and adjustment with optional adapter and free EE-PCS software | |
| Inspection certificate to DIN EN 10204-3.1 |
Applications
| Transformer oil moisture monitoring | |
| Lubrication and hydraulic oil condition monitoring for predictive maintenance | |
| Diesel fuel moisture |
General
| Supply | 10–28 V DC (10 V + 0.02 × RL); Class 2 in USA/Canada |
|---|---|
| Consumption | < 20 mA + load current |
| Connection | M12 × 1, 8-pole |
| Pressure range | 0–20 bar |
| Temperature | Oil −40 to +100 °C; ambient −40 to +80 °C; storage −40 to +60 °C |
| Materials | Enclosure and perforated filter stainless steel 1.4404 (316L) |
| Process connection | G ½ ISO or ½ in NPT |
| Protection | IP65 / NEMA 4X |
| EMC | EN 61326-1, EN 61326-2-3 industrial; FCC Part 15 Class A |
Key specifications
| Measured variables | Water activity (aw), water content (ppm), temperature |
|---|---|
| Range | 0–1 aw; 0–100,000 ppm (oil dependent); −40 to +100 °C |
| Accuracy | ±0.02 aw (0–0.9 aw), ±0.03 aw (0.9–1); ±0.2 °C |
| Output | 2 × 4–20 mA (3-wire) + RS485 Modbus RTU |
| Pressure rating | 0–20 bar |
| Enclosure | 316L stainless steel, IP65 / NEMA 4X |
Measurement
| Water activity range | 0–1 aw |
|---|---|
| Water content range | 0–100,000 ppm (actual range depends on oil type; ppm valid at 0–100 °C) |
| aw accuracy at 20 °C | ±0.02 aw (0–0.9 aw); ±0.03 aw (0.9–1 aw) |
| Response time | t90 typ. 10 min in still oil at 20 °C |
| Temperature range | −40 to +100 °C |
| Temperature accuracy | ±0.2 °C at 20 °C in oil |
| Temperature resolution | 0.01 °C |
Outputs
| Analog | 2 × 4–20 mA, 3-wire, RL < 500 Ω, resolution 2 µA |
|---|---|
| Digital | RS485, Modbus RTU (9,600 / 19,200 / 38,400 baud, FLOAT32) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of E+E Elektronik, used with permission (source) — background removed by Argonmark. All photo credits
Description
The E+E EE364 is a compact moisture-in-oil sensor for online monitoring of transformer, engine, lubrication and hydraulic oil and diesel fuel. It measures water activity from 0 to 1 aw with ±0.02 aw accuracy and oil temperature from −40 to +100 °C with ±0.2 °C accuracy, and calculates the absolute water content in ppm.
The data is available on two scalable 4–20 mA outputs and on RS485 with Modbus RTU. The 316L stainless steel housing is pressure-tight to 20 bar and rated IP65, and mounts with a G ½ or ½ in NPT thread.
Argonmark Ltd supplies E+E Elektronik instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
