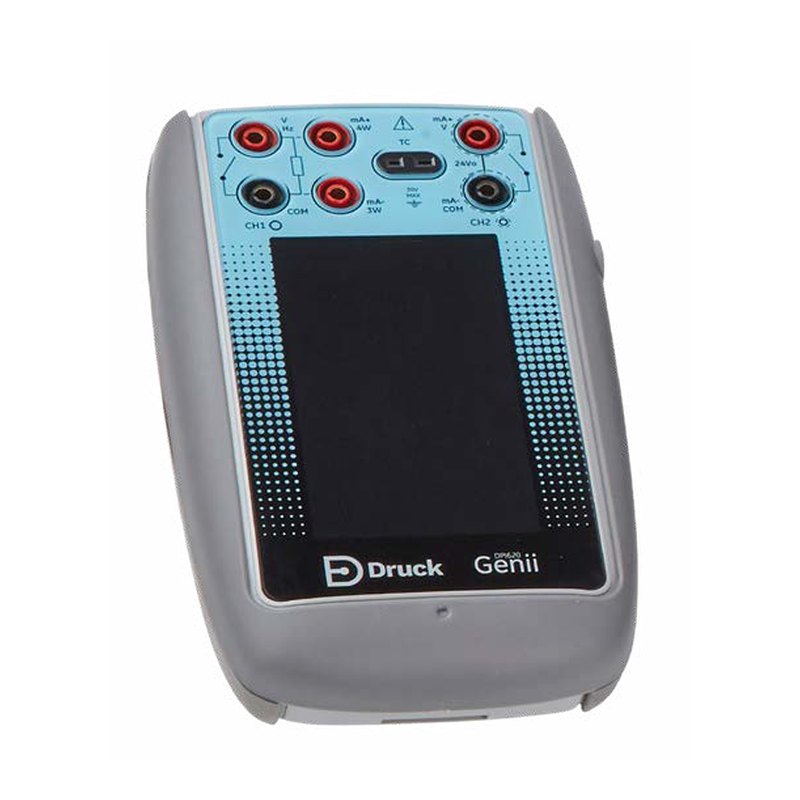

Druck DPI620G Genii modular multifunction calibrator and HART/Fieldbus communicator, intrinsically safe option
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Signal / Protocol: HART, Foundation Fieldbus
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1494 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Druck |
| Model | DPI620G (DPI620G-IS) |
| Technical | |
| Type | Calibration equipment |
| Signal / Protocol | HART, Foundation Fieldbus |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Modular system | DPI620G calibrator, PM620 pressure modules, MC620G module carrier and PV62xG pressure stations |
|---|---|
| Two channels | simulate device inputs and measure outputs at the same time, with error calculation |
| HART and Foundation Fieldbus communicators with full device description libraries and internal modems | |
| Internal loop power 24 or 28 V (15 V on IS); selectable 250 Ω HART resistor | |
| Documenting calibrator | calibration wizard, pass/fail analysis, data logging of up to 6 channels |
| Up to 6 simultaneous reading windows; Bluetooth option; 4Sight2 software licence included | |
Applications
| Field and workshop calibration of pressure, temperature and electrical transmitters, gauges and switches | |
| HART and Foundation Fieldbus device configuration and commissioning | |
| Calibration in Zone 1 hazardous areas (IS version) |
Pressure generation (PV62xG stations)
| PV621G | 95% vacuum to 20 bar, pneumatic, 2.65 kg |
|---|---|
| PV622G | 95% vacuum to 100 bar, pneumatic, 3.30 kg |
| PV623G | 0 to 1,000 bar, hydraulic (demineralized water or mineral oil), 3.75 kg |
| IS versions | PV62x-IS: ATEX/IECEx II 2G Ex ia IIC T4 Gb, −10 to +40 °C |
Key specifications
| Functions | Measure and source mA, mV, V, Ω, frequency, RTDs and thermocouples; pressure with PM620 modules |
|---|---|
| Pressure | 2.5 mbar to 1,000 bar with interchangeable modules; generation to 100 bar pneumatic / 1,000 bar hydraulic |
| Accuracy (1 year) | mA ±(0.012% rdg + 0.006% FS); 20 V ±(0.0145% rdg + 0.002% FS); pressure to 0.0125% FS |
| Communication | Optional HART and Foundation Fieldbus communicator; 24/28 V loop power |
| Display | 4.3 in colour touch screen, 480 × 800 |
| Approvals | IS version: ATEX/IECEx II 2G Ex ib IIC T4 Gb; ETL Class I Zone 1 |
General (safe-area version)
| Display | 110 mm (4.3 in) colour touch screen, 480 × 800, 2 mm toughened glass |
|---|---|
| Memory | 4 GB internal + 8 GB microSD (cards to 32 GB) |
| Languages | English, Chinese, French, German, Italian, Portuguese, Russian, Spanish, Dutch, Japanese |
| Operating / storage temperature | −10 to +50 °C / −20 to +70 °C |
| Protection | IP55 (IS version IP54) |
| Shock / vibration | EN 61010-1; MIL-PRF-28800F Class II; 1 m drop |
| Battery | Li-polymer 3.7 V, 4,600 mAh min.; ≈ 12 h measuring (CH1), ≈ 7 h dual function with 24 V loop at 12 mA |
| Connectivity | USB A, USB mini B, Bluetooth (B1 model) |
| Size / weight | 186 × 115.5 × 42.5 mm; 675 g (IS: 183 × 114 × 55 mm, 1.1 kg) |
| Approvals | CE, UKCA; EMC EN 61326-1 |
Intrinsically safe version (DPI620G-IS)
| Approvals | ATEX and IECEx II 2G Ex ib IIC T4 Gb (−10 ≤ Ta ≤ +50 °C); ETL Class I Zone 1 AEx/Ex ib IIC T4 Gb |
|---|---|
| Battery | Li-ion 3.65 V 4,000 mAh, detachable and hot-swappable in the hazardous area; ≈ 7 h measuring |
| Loop power | 15 V |
Electrical measure and source (total uncertainty, 1 year, 10–30 °C)
| Function | Range | Uncertainty (% rdg + % FS) | Resolution |
|---|---|---|---|
| Measure DC voltage | ±200 mV | 0.01 + 0.005 | 0.001 mV |
| Measure DC voltage | ±2,000 mV | 0.0095 + 0.005 | 0.01 mV |
| Measure DC voltage | ±20 V / ±30 V | 0.0145 + 0.002 / 0.004 | 0.00001 / 0.0001 V |
| Measure AC voltage (not B/H/IS) | 0–300 V AC | 1.5 + 0.1 | 0.01 V |
| Measure current | ±20 mA / ±55 mA | 0.012 + 0.006 / 0.016 + 0.005 | 0.0001 mA |
| Measure resistance (True Ω, 4-wire) | 0–400 Ω / 0–4,000 Ω | 0.009 + 0.0012 | 0.001 / 0.01 Ω |
| Measure frequency | 0–1,000 Hz / 1–50 kHz | 0.003 + 0.0002 / 0.0004 | 0.0001 Hz / 0.00001 kHz |
| Source DC voltage | 0–20 V at 3 mA (IS 12 V) | 0.0145 + 0.002 | |
| Source current | 0.2–24 mA (int. or ext. loop power) | 0.015 + 0.005 | 0.001 mA |
| Source resistance | 0–400 Ω (0.5 mA) | 0.008 + 0.003 | 0.01 Ω |
| Source frequency | 0–1,000 Hz / 1–50 kHz; square, sine, triangle | 0.003 + 0.00023 |
PM620T pressure modules (total uncertainty, 1 year, −10 to 50 °C)
| Range (absolute) | Total uncertainty |
|---|---|
| 0–0.35 bar | 0.030% FS |
| 0–1.2 bar | 0.020% FS |
| 0–2 bar to 0–100 bar | 0.0125% FS |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Druck, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Druck DPI620G (DPI 620 Genii) is a modular multifunction calibrator that measures and sources mA, mV, V, resistance, frequency, RTDs and thermocouples on two channels at once, and can include a full HART and Foundation Fieldbus communicator. With interchangeable PM620 pressure modules it measures from 2.5 mbar to 1,000 bar to 0.0125% FS, and with the PV62x base stations it generates pressure up to 100 bar pneumatic or 1,000 bar hydraulic.
It has a 4.3 in colour touch screen, documenting and data-logging functions and up to 12 hours of battery life. The intrinsically safe DPI620G-IS carries ATEX, IECEx and ETL approvals for Zone 1 hazardous areas.
Argonmark Ltd supplies Druck instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
