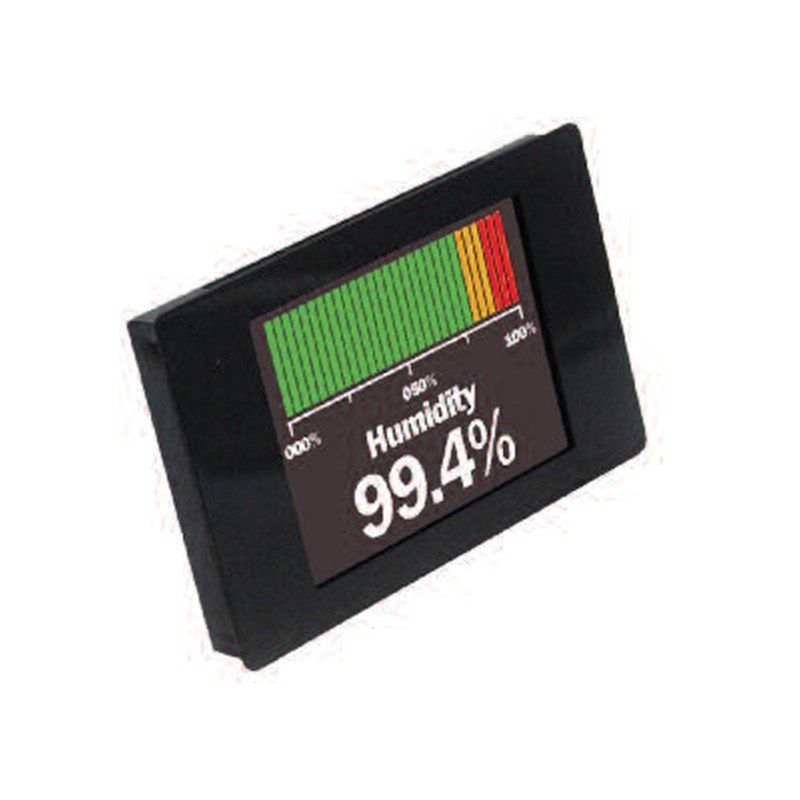

Dwyer SPPM smart programmable panel meter, colour touch screen, 0–40 V DC or 0–50 mA input
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Indicators & controllers
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1495 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Dwyer |
| Model | SPPM (SPPM-24/28/35, -C) |
| Technical | |
| Type | Indicators & controllers |
| Hazardous area | General purpose |
Datasheet
Technical features
| Fully field-configurable display | read and graph pressure, temperature, humidity, gas concentration or other variables |
|---|---|
| Configured over USB with downloadable Windows software | |
| Up to two transmitters on voltage-input models | |
| Optional thermocouple input board | |
| Screw terminal, pin or USB connection | |
Applications
| Local display of transmitter signals on panels and skids | |
| Trend display of pressure, temperature, humidity or gas readings |
Key specifications
| Input | 0–40 V DC (factory 0–10 V) or 0–50 mA (factory 4–20 mA), scalable |
|---|---|
| Accuracy | 0.1% |
| Display | 2.4, 2.8 or 3.5 in TFT colour touch screen, 320 × 240 |
| Power | 4–30 V DC or USB, 190 mA max. |
| Operating temperature | 0 to 40 °C |
| Mounting | Panel mount |
Specification
| Inputs | Current 0–50 mA, scalable (factory 4–20 mA); voltage 0–40 V DC, scalable (factory 0–10 V) |
|---|---|
| Accuracy | 0.1% |
| Resolution | 0.3 to 9.8 mV depending on input range |
| Sampling rate | 3 samples/s |
| Power | 4–30 V DC or via USB; 190 mA max. |
| Display | 2.4, 2.8 or 3.5 in TFT colour touch screen, 320 × 240 pixels |
| Temperature limits | 0 to 40 °C |
| Warm-up | 30 s |
| Connection | Screw terminals, pin connection or USB |
| Weight | 79 g |
| Approvals | CE, RoHS |
| Accessories | Thermocouple input board A-SPPM-TC, USB cable, 2.4 / 2.8 in display housings |
Models
| Model | Display | Input |
|---|---|---|
| SPPM-24 | 2.4 in | Voltage |
| SPPM-28 | 2.8 in | Voltage |
| SPPM-35 | 3.5 in | Voltage |
| SPPM-24-C | 2.4 in | Current |
| SPPM-28-C | 2.8 in | Current |
| SPPM-35-C | 3.5 in | Current |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Dwyer, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Dwyer SPPM is a programmable panel meter with a full-colour touch screen (2.4, 2.8 or 3.5 in) that can show and graph almost any transmitter signal, such as pressure, temperature, humidity or gas concentration. It accepts a scalable 0–40 V DC or 0–50 mA input with 0.1% accuracy, and voltage models can read two transmitters.
The display layout is configured over USB with Windows software. It runs on 4–30 V DC or USB power and mounts in a panel.
Argonmark Ltd supplies Dwyer instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
