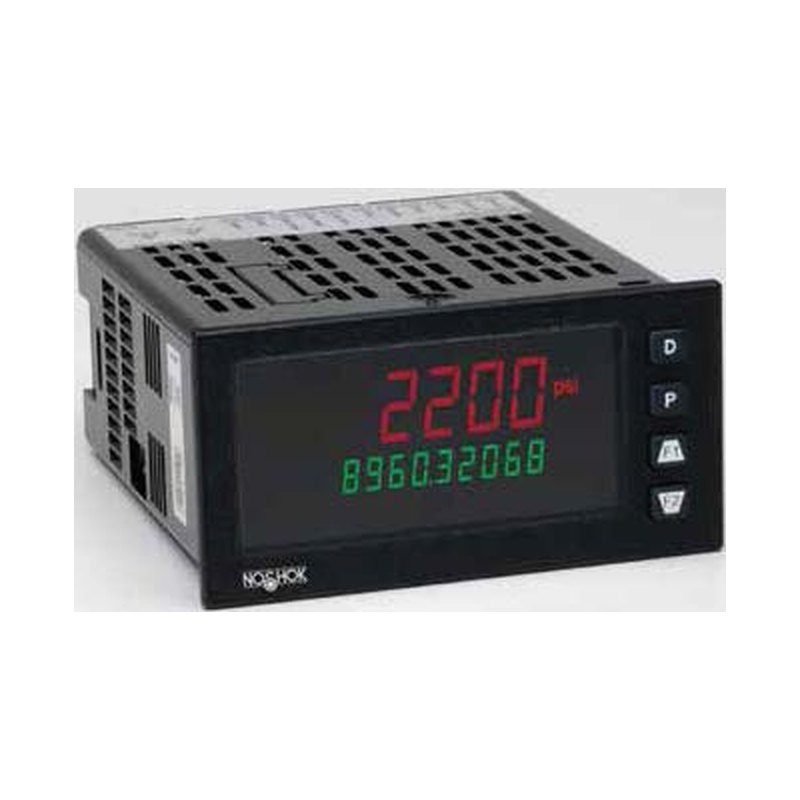

NOSHOK 2200 Series dual-display universal digital indicator, mA / V / thermocouple / RTD input
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Indicators & controllers
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1499 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | NOSHOK |
| Model | 2200 Series |
| Technical | |
| Type | Indicators & controllers |
| Hazardous area | General purpose |
Datasheet
Technical features
| Accepts current, voltage, thermocouple, RTD, resistance and process signals | |
| Dual display with tri-colour, variable-intensity digits | |
| Totalizer (second/minute/hour/day time base), batch from user input, 2–16 point linearization, min/max capture | |
| USB port for configuration from a computer | |
| Plug-in option cards for field upgrade | relays, NPN/PNP outputs, analog output, RS232/RS485, Modbus, DeviceNet, Profibus |
|---|---|
Applications
| Pump control and monitoring | |
| Liquid level and flow rate display with totalizing | |
| Heating/cooling temperature display; force measurement and cycle counting |
Key specifications
| Input | 4–20 mA; 0–5, 1–6, 0–10, 1–11 V DC; thermocouple J, K, T, E; Pt100 RTD |
|---|---|
| Display | Dual: tri-colour LED upper (red/green/orange) + 9-digit green lower |
| Accuracy | < 0.03% FS (reference range) |
| Update rate | 160 readings/s |
| Power | 40–250 V AC or 21.6–250 V DC |
| Excitation | Built-in 24 V DC sensor supply |
Specification
| Input signals | 4–20 mA; 0–5, 1–6, 0–10, 1–11 V DC; thermocouple J, K, T, E; RTD Pt100 |
|---|---|
| Sensor excitation | 24 V DC built in |
| Display | Upper tri-colour LED (red, green, orange); lower 9 digit, 9 mm green LED |
| Keypad | 4 keys, 2 programmable |
| Accuracy | < 0.03% FS (reference temperature range); < 0.12% FS (full operating range) |
| Update rate | 160/s |
| Filtering | 0 to 25 s selectable |
| Normal mode rejection | 60 dB at 50/60 Hz |
| User inputs | 2 programmable, 30 V DC max. |
| Power | 40–250 V AC 50/60 Hz, 20 VA; 21.6–250 V DC, 8 W |
| Memory | FRAM |
| Humidity / vibration / shock | < 85% non-condensing; 5–150 Hz 2 g; 25 g |
| Altitude | Up to 2,000 m |
| EMC | EN 61326-1 |
| Weight | 230 g |
| Option cards | Dual or quad relay; quad NPN or PNP open collector; analog output (mA or V DC); RS232 / RS485; Modbus RTU/ASCII; DeviceNet; Profibus |
| Enclosure option | NEMA 4 enclosure (ENC) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of NOSHOK, used with permission (source) — background removed by Argonmark. All photo credits
Description
The NOSHOK 2200 Series is a universal panel indicator that accepts 4–20 mA, voltage, thermocouple (J, K, T, E) and Pt100 RTD inputs and shows them on a dual display with tri-colour upper digits. It updates up to 160 times per second with better than 0.03% FS accuracy, and has a built-in 24 V DC supply to power the sensor.
Totalizing, batch counting, 2–16 point linearization and min/max capture are built in, and plug-in cards add relays, transistor outputs, an analog output or RS232/RS485, Modbus, DeviceNet or Profibus. It runs on 40–250 V AC or 21.6–250 V DC and is configured over USB.
Argonmark Ltd supplies NOSHOK instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
