NOSHOK 1950 compact 5-digit smart digital indicator, current / voltage / resistance input
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Indicators & controllers
- Signal / Protocol: RS-485, RS-232
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1500 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | NOSHOK |
| Model | 1950 Series |
| Technical | |
| Type | Indicators & controllers |
| Signal / Protocol | RS-485, RS-232 |
| Hazardous area | General purpose |
Datasheet
Technical features
| Full-size panel meter features in a compact 68 × 33 mm case | |
| All programming from the front panel; non-volatile memory keeps settings and max/min | |
| Factory calibrated to the transducer at no extra cost | |
| Field-upgradeable cards | single relay, dual sinking outputs, RS232 or RS485 |
|---|---|
Applications
| Display of pressure, flow, level, force and temperature signals | |
| Simple alarm and control with relay card |
Key specifications
| Input | Current, voltage or resistance (per model) |
|---|---|
| Display | 5-digit LCD, 12 mm (−9999 to 99999); reflective or red/green backlit |
| Accuracy | 0.1% of span |
| Power | 9–28 V DC (85–250 V AC supply optional) |
| Operating temperature | −35 to +75 °C |
| Protection | NEMA 4X / IP65 front |
Specification
| Inputs | Current, voltage or resistance |
|---|---|
| Display | 5 digit, 12 mm (0.48 in), −9999 to 99999; reflective LCD or selectable red/green backlight |
| Accuracy | 0.1% of span |
| Response time | < 500 ms |
| Power | 9–28 V DC unregulated; optional power supplies 115 V AC or 85–250 V AC |
| Connections | Rear terminal block, 30–14 AWG |
| Temperature | Operating −35 to +75 °C; storage −35 to +85 °C; 0–85% RH |
| Vibration / shock | 5–500 Hz, 5 g (IEC 68-2-6); 30 g (IEC 68-2-27) |
| EMC | EN 61326 |
| Front protection | NEMA 4X / IP65 (sealed bezel) |
| Weight | 100 g |
| Relay card | 1 Form C, 1 A at 30 V DC / 0.3 A at 125 V AC |
| Communication cards | RS485 (up to 32 meters per line, 300–38.4k baud) or RS232 |
| Dual sinking output card | N-channel open drain, 100 mA, 30 V DC max. |
| Enclosure options | Black painted steel or off-white fibreglass |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

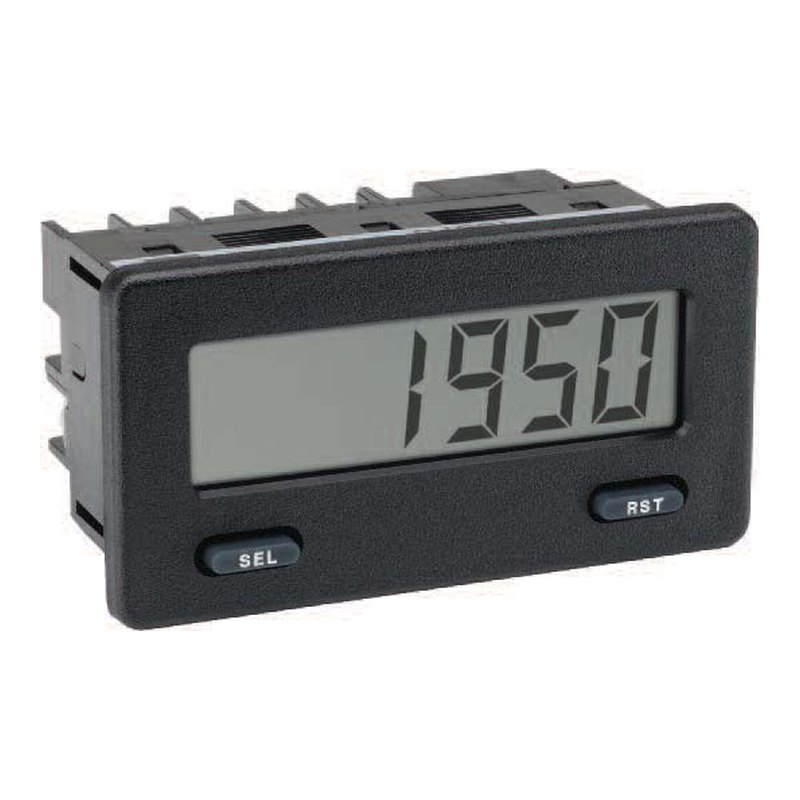

Photo: courtesy of NOSHOK, used with permission (source) — background removed by Argonmark. All photo credits
Description
The NOSHOK 1950 is a compact smart digital indicator that puts full panel-meter functions into a 68 × 33 mm case. It accepts current, voltage or resistance signals, displays −9999 to 99999 on a 12 mm LCD with 0.1% of span accuracy, and is programmed entirely from the front panel.
It runs on 9–28 V DC, works from −35 to +75 °C, has a NEMA 4X / IP65 sealed front, and accepts option cards for a relay, dual sinking outputs or RS232/RS485 communication.
Argonmark Ltd supplies NOSHOK instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
