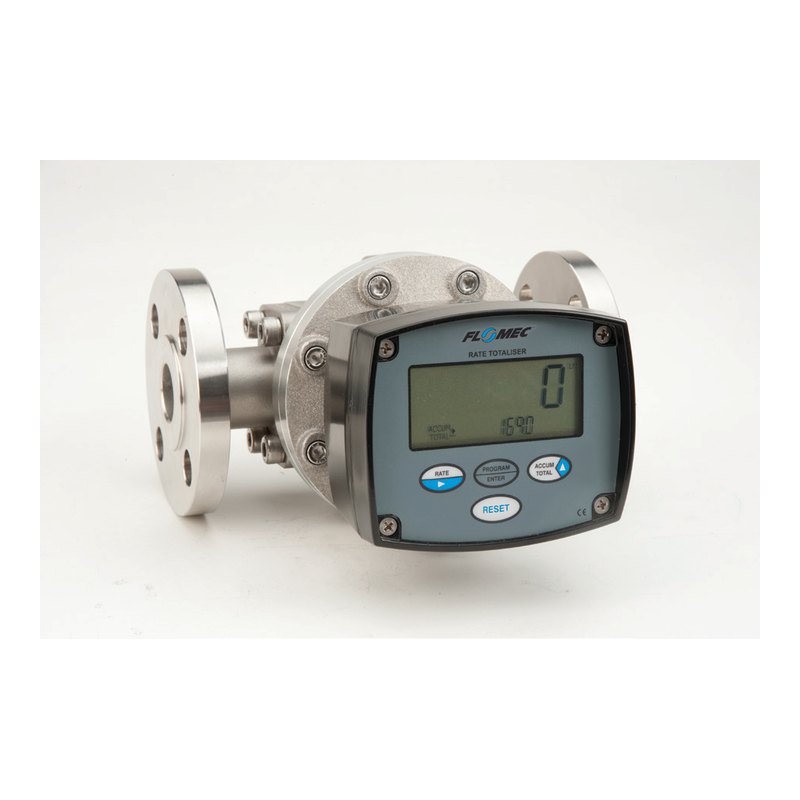

FLOMEC OM oval gear flow meters, ⅛ to 4 in, pulse output or mechanical register
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Flow
- Signal / Protocol: 4–20 mA, HART
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1501 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | FLOMEC |
| Model | OM series (OM004 to OM100E) |
| Technical | |
| Type | Flow |
| Signal / Protocol | 4–20 mA, HART |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Direct volumetric measurement of clean liquids, high and low viscosity | |
| No straight pipe runs or flow conditioning needed; only two moving parts | |
| Quadrature pulse option for bi-directional flow | |
| PPS or stainless steel rotors (Keishi-cut rotors for high viscosity) | |
| Integral rate/totalizers, 4–20 mA with HART, two-stage batch controllers, or mechanical registers | |
| BSP, NPT, ANSI 150 or PN16 connections |
Applications
| Fuel, diesel and Bunker C fuel oil metering, truck metering | |
| Oils, lubricants, molasses and oil-based paints | |
| Chemical feed lines, additive injection and batching |
Key specifications
| Flow range | 1 L/h (OM004) to 2,500 L/min (OM100E) |
|---|---|
| Accuracy | ±0.5% of reading (±1% small sizes); ±0.2% with linearizing RT14; repeatability ±0.03% |
| Sizes | ⅛ in to 4 in |
| Body | Aluminium or 316L stainless steel |
| Output | Reed switch, Hall effect NPN, quadrature; optional 4–20 mA, HART, batch controller; or mechanical register |
| Approvals | IP66/67; optional ATEX/IECEx Ex d I/IIB and intrinsically safe instruments |
Electrical (pulse meters)
| Reed switch output | 30 V DC × 200 mA max. (thermal shock max. 10 °C/min) |
|---|---|
| Hall effect output | 3-wire NPN open collector, 5–24 V DC, 20 mA max. |
| Optional outputs | 4–20 mA, scaled pulse, quadrature pulse, flow alarms, two-stage batch control |
| Temperature range | −40 to +150 °C (depends on seals and instrument; 80 °C with integral instruments, 120 °C with cooling fin) |
| O-rings | FKM (−15 °C min.), PTFE-encapsulated FKM, or nitrile (−40 °C min.) |
| Protection | IP66/67 |
Mechanical register meters
| Accuracy | ±1% (M register); ±0.5% (V register, 3–4 in) |
|---|---|
| Registers | M: 4-digit resettable, NEMA 4 (IP65); V: 5-digit resettable, NEMA 3S (IP54) |
| Ambient temperature | −15 to +80 °C |
| Max. pressure drop | 1 bar |
Sizes (flow at 3 cP)
| Model | Size | Flow range | Pulse resolution (Hall, pulses/L) | Max. pressure (threaded, Al / SS) |
|---|---|---|---|---|
| OM004 | ⅛ in (4 mm) | 1.0–36 L/h | 2,800 (high-res 11,200) | 15 / 34 bar |
| OM006 | ¼ in (6 mm) | 2–100 L/h | 1,050 (high-res 4,200) | 15 / 34 bar |
| OM008 | ⅜ in (8 mm) | 15–550 L/h | 710 | 15 / 34 bar |
| OM015 | ½ in (15 mm) | 1–40 L/min | 168 | 68 / 68 bar |
| OM025 | 1 in (25 mm) | 10–150 L/min | 107 | 68 / 68 bar |
| OM040 | 1½ in (40 mm) | 15–250 L/min | 56 | 30 / 30 bar |
| OM050 | 2 in (50 mm) | 30–450 L/min (SS) / 30–500 L/min (PPS) | 26 | 20 / 38 bar |
| OM080 | 3 in (80 mm) | 35–750 L/min | – | 12 bar |
| OM080E | 3 in (80 mm) | 50–1,000 L/min | – | 12 bar |
| OM100 | 4 in (100 mm) | 75–1,500 L/min | – | 10 bar |
| OM100E | 4 in (100 mm) | 150–2,500 L/min | – | 10 bar |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of FLOMEC, used with permission (source) — background removed by Argonmark. All photo credits
Description
FLOMEC OM meters are oval gear positive displacement flow meters for clean liquids of high or low viscosity, in sizes from ⅛ in to 4 in covering 1 L/h up to 2,500 L/min. They measure volume directly with only two moving parts, need no straight pipe runs, and typically reach ±0.5% of reading accuracy with ±0.03% repeatability (±0.2% with a linearizing rate totalizer).
Bodies are aluminium or 316L stainless steel with PPS or stainless rotors. Outputs include reed switch, Hall effect and quadrature pulses, or integral displays with 4–20 mA, HART and batch control; mechanical register versions need no power. Explosion-proof (ATEX/IECEx) and intrinsically safe options are available.
Argonmark Ltd supplies FLOMEC instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
