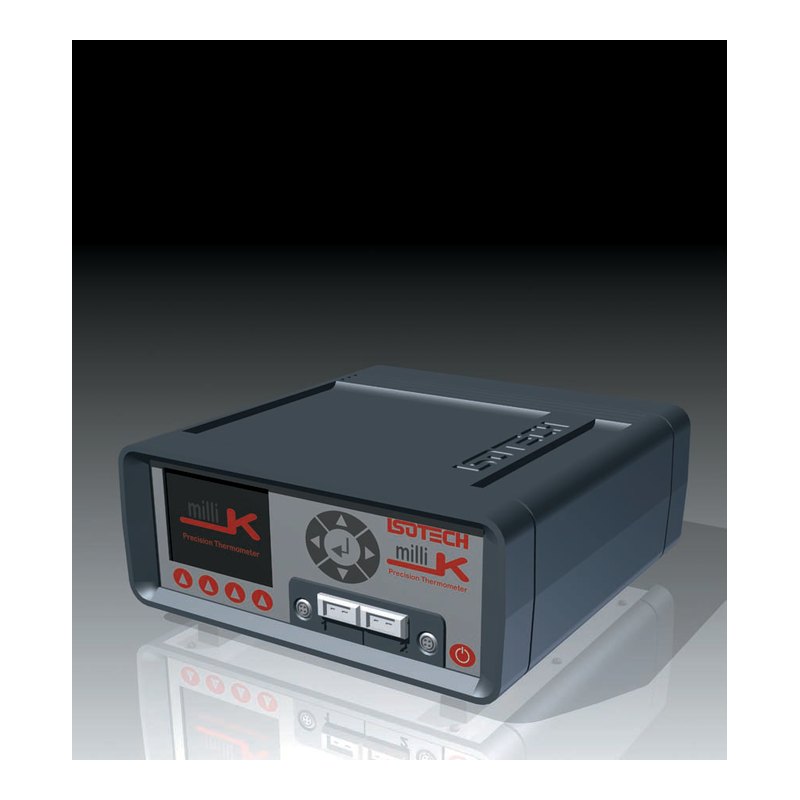

Isotech milliK precision thermometer, SPRT / PRT / thermistor / thermocouple / 4–20 mA, −270 to 1,820 °C
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Signal / Protocol: RS-232, USB
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1509 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Isotech |
| Model | milliK |
| Technical | |
| Type | Calibration equipment |
| Signal / Protocol | RS-232, USB |
| Hazardous area | General purpose |
Datasheet
Technical features
| Reads SPRTs, PRTs, thermistors, thermocouples and 4–20 mA transmitters, with isolated 24 V DC loop supply | |
| Controls Isotech dry blocks and baths through a programmable list of set points | |
| Logs over 180 days of time-stamped readings to internal memory or USB drive | |
| Fast current reversal and solid-state switching eliminate thermal EMF errors; lead-wire correction up to 30 m | |
| Galvanically isolated sensor channels and separately isolated mA input | |
| Works with I-CAL Easy and Isotech selector switches for automatic calibration of up to 32 sensors |
Applications
| Laboratory and field calibration of PRTs, thermocouples, thermistors and transmitters | |
| Automated calibration systems with baths and dry blocks | |
| Pharmaceutical, food, aerospace and power-plant temperature calibration |
General
| Display | 89 mm QVGA colour TFT; numeric and chart modes; °C, °F, K, Ω, mV, mA |
|---|---|
| Statistics | Mean of 2–100 readings with standard deviation |
| Interfaces | 10/100 Ethernet, USB 2.0 host, 2 × RS232 |
| Operating conditions | 0–45 °C (full specification 15–30 °C) |
| Power | 88–264 V AC 47–63 Hz, 6 W; or 4 × AA cells |
| Size / weight | 255 × 255 × 114 mm; 2.25 kg |
Key specifications
| Inputs | 2 sensor channels (SPRT, PRT, thermistor, thermocouple) + isolated 4–20 mA channel |
|---|---|
| Range | −270 to 1,820 °C (sensor dependent) |
| Accuracy | PRT 5 ppm (3 mK at 0 °C); thermocouple 2 µV; 4–20 mA ±0.005% |
| Resolution | 0.0001 °C (0.00001 Ω) |
| Interface | Ethernet, USB host, 2 × RS232 |
| Power | 88–264 V AC or 4 × AA |
Inputs
| Channels 1 and 2 | SPRTs 0–115 Ω, PRTs 0–460 Ω, thermistors 0–32 / 130 / 490 kΩ, thermocouples ±115 mV |
|---|---|
| Channel 3 | 4–20 mA (0–30 mA), isolated 24 V DC supply |
| Sensor currents | PRT 1 mA and 1.428 mA (reversing); thermistor 5 µA |
| Measurement time | 950 ms |
| Conversions | PRT: IEC 60751, Callendar-van Dusen, ITS-90; thermocouple: IEC 584-1 B, E, J, K, N, R, S, T, L, Au-Pt; thermistor: Steinhart-Hart, polynomial |
| Connectors | Lemo 6-pin gold (PRT); miniature thermocouple socket; 4 mm sockets (mA) |
| Cable length | Up to 10 Ω per core or 10 nF (≈ 100 m 4-core PTFE) |
Accuracy (initial / 1 year)
| SPRTs / PRTs | 5 ppm / 7 ppm; 3 mK / 4 mK at 0 °C; 5 mK / 7 mK over range |
|---|---|
| Thermistors | 50 ppm / 150 ppm |
| Thermocouples (voltage) | 2 µV / 4 µV |
| Thermocouple types | K ±0.05 °C; J ±0.04 °C; T ±0.05 °C; N ±0.06 °C; E ±0.03 °C; R ±0.17 °C; S ±0.19 °C; B ±0.23 °C; Au-Pt ±0.12 °C (initial) |
| 4–20 mA | ±0.005% / ±0.02% |
| Resolution | 0.00001 Ω (PRT); 0.00001 mV; 0.001 mA; 0.0001 ° |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Isotech, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Isotech milliK is a precision thermometer that reads SPRTs, PRTs, thermistors and thermocouples on two isolated channels plus a 4–20 mA transmitter input, covering −270 to 1,820 °C. Accuracy is 5 ppm for PRTs (3 mK at 0 °C), 2 µV for thermocouples and ±0.005% for current, with 0.0001 °C resolution.
It can also run Isotech baths and dry blocks through a list of set points, log more than 180 days of readings, and with selector switches and software build automatic calibration systems for up to 32 sensors. It runs from mains or AA cells and has Ethernet, USB and RS232 interfaces.
Argonmark Ltd supplies Isotech instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
