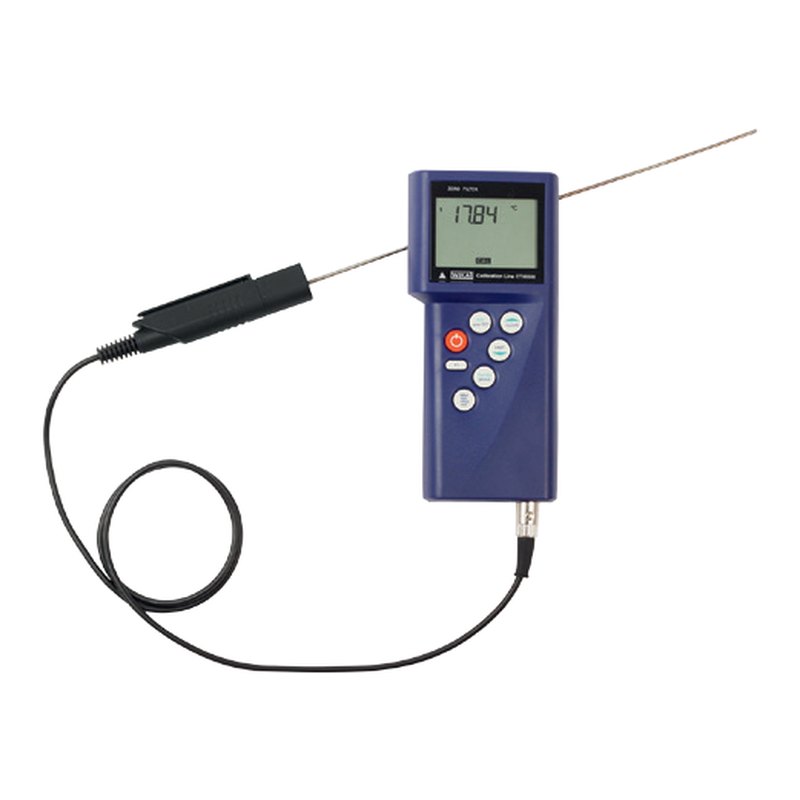

WIKA CTH65I0 intrinsically safe hand-held precision thermometer, Pt100, 0.03 K, Ex ib IIB T4
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Signal / Protocol: USB
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1510 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CTH65I0 (Ex version of CTH6500) |
| Technical | |
| Type | Calibration equipment |
| Signal / Protocol | USB |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Intrinsically safe for use in Zone 1 gas hazardous areas | |
| Reference-grade accuracy of 0.03 K for calibration and quality assurance | |
| Probe calibration by code, or physical 1-, 2- or 3-point adjustment of probe and display | |
| Fast (4/s) or slow (1/s) measuring rate; min/max, hold, tare, zero adjustment; real-time clock | |
| Large 4½-digit two-line backlit display; USB interface | |
| 3.1 calibration certificate as standard (DAkkS optional) |
Applications
| Calibration and checking of thermometers in hazardous areas | |
| Commissioning, maintenance and service in oil, gas and chemical plants | |
| Reference measurement in pharmaceutical, biotech and food processes |
Key specifications
| Inputs | 1 or 2 Pt100 channels |
|---|---|
| Range | −200 to +600 °C (probe dependent) |
| Accuracy | 0.03 K (−50 to 199.99 °C); 0.05 K (−200 to −50 °C); else 0.05% of reading |
| Resolution | 0.01 K to 200 °C, then 0.1 K |
| Approval | ATEX II 2G Ex ib IIB T4 Gb (Zone 1) |
| Power | 9 V battery, ≈ 20 h |
Specification
| Probe type | Pt100 |
|---|---|
| Inputs | 1 or 2 |
| Measuring range | −200 to +600 °C |
| Accuracy | 0.03 K (−50 to +199.99 °C); 0.05 K (−200 to −50.01 °C); otherwise 0.05% of reading |
| Display | 4½-digit 2-line LCD, backlit; resolution 0.01 K up to 200 °C, then 0.1 K |
| Measuring rate | 4/s (fast) or 1/s (slow) |
| Power | 9 V battery or rechargeable; ≈ 20 h |
| Operating / storage temperature | 0 to 40 °C / −10 to +50 °C |
| Interface | USB via interface cable |
| Case | Impact-resistant ABS, 200 × 93 × 44 mm, 350 g |
| Approvals | ATEX II 2G Ex ib IIB T4 Gb (T4 at 0–40 °C); EMC EN 61326; EAC |
| Calibration | 3.1 certificate per DIN EN 10204; DAkkS optional; recalibration 1 year |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CTH65I0 is the intrinsically safe version of the CTH6500 hand-held precision thermometer, approved Ex ib IIB T4 for Zone 1 gas hazardous areas. With one or two Pt100 inputs it measures −200 to +600 °C to 0.03 K between −50 and 200 °C, so it can serve as a reference for calibration, commissioning and maintenance work.
Probes can be matched by code or by one- to three-point adjustment. It has fast and slow measuring modes, min/max, hold and tare functions, a backlit two-line display, a USB interface and about 20 hours of battery life, and ships with a 3.1 calibration certificate.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
Questions & answers
Customer questions
No questions asked yet. Ask about specification, compatibility, lead time or anything else about this item.
Reviews
No reviews yet. Bought or used this item? Be the first to share your experience.
-
