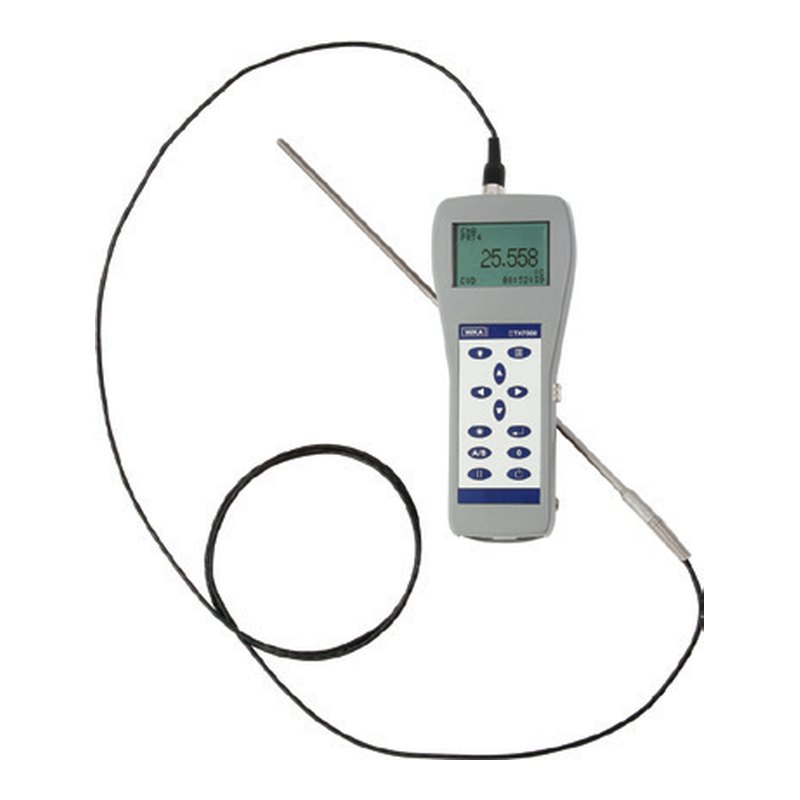

WIKA CTH7000 two-channel hand-held precision thermometer, Pt100 / thermistor, 0.015 K, −200 to 962 °C
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Signal / Protocol: USB
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1511 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CTH7000 |
| Technical | |
| Type | Calibration equipment |
| Signal / Protocol | USB |
| Hazardous area | General purpose |
Datasheet
Technical features
| Bench-top accuracy in a battery-powered hand-held reference thermometer | |
| SMART probe connector stores calibration data in the plug: swap probes between instruments without re-entering coefficients | |
| ITS-90 and Callendar-van Dusen coefficients for calibrated probes, EN 60751 for uncalibrated | |
| Statistics | min/max, average, standard deviation; hold, zero, one-shot measurement |
|---|---|
| Logs about 8,000 values; USB port for PC control and logging (ULog software) | |
| Displays ohms as well as temperature, for checking probes | |
Applications
| Reference instrument for calibrating thermometers in factories and calibration laboratories | |
| On-site temperature calibration and differential temperature measurement |
Key specifications
| Inputs | 2: Pt100 / Pt25 PRTs and NTC thermistors; single or differential |
|---|---|
| Range | −200 to +962 °C (probe dependent) |
| Accuracy | 0.015 K (PRT) |
| Resolution | 0.001 °C |
| Stability | < 0.005 °C per year |
| Power | NiMH rechargeable, ≈ 20 h |
Specification
| Probe types | Pt100 and Pt25 resistance thermometers, NTC thermistors |
|---|---|
| Inputs | 2 (5-pin DIN or SMART connector) |
| Probe current | 1 mA DC (Pt100); auto-select 1 mA, 10 µA, 3 µA (thermistors) |
| Temperature range | −200 to +962 °C depending on probe |
| Accuracy, PRT | 0.015 K |
| Accuracy, thermistor | ±0.006 Ω (0–400 Ω); ±0.01% rdg (400 Ω–50 kΩ); ±0.02% rdg (50–400 kΩ) |
| Display | 4½-digit 2-line backlit LCD; resolution 0.001 °C |
| Memory | ≈ 8,000 values; real-time clock |
| Power | NiMH rechargeable battery, ≈ 20 h; built-in charging socket |
| Operating / storage temperature | 15 to 25 °C / −20 to +50 °C |
| Interface | USB |
| Size / weight | 232 × 97 × 53 mm; 500 g |
| Calibration | 3.1 certificate per DIN EN 10204; DAkkS or UKAS optional |
Standard probes
| Probe | Range |
|---|---|
| Pt100, 6 mm × 350 mm | −50 to +250 °C or −70 to +450 °C |
| Pt100, 6 mm × 450 mm | −70 to +650 °C |
| Pt100, 3 mm × 30 mm | −50 to +200 °C |
| NTC thermistor 10 kΩ, 4 mm × 300 mm | −50 to +125 °C |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CTH7000 is a two-channel hand-held precision thermometer for Pt100/Pt25 resistance thermometers and NTC thermistors, measuring from −200 to +962 °C (depending on probe) with 0.015 K accuracy, 0.001 °C resolution and drift below 0.005 °C per year. It can show both channels or the difference between them.
SMART probe connectors keep each probe's calibration coefficients in the plug, so probes can be swapped between instruments without re-entering data. It logs about 8,000 readings, calculates statistics, connects to a PC over USB and runs about 20 hours on its rechargeable battery.
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
