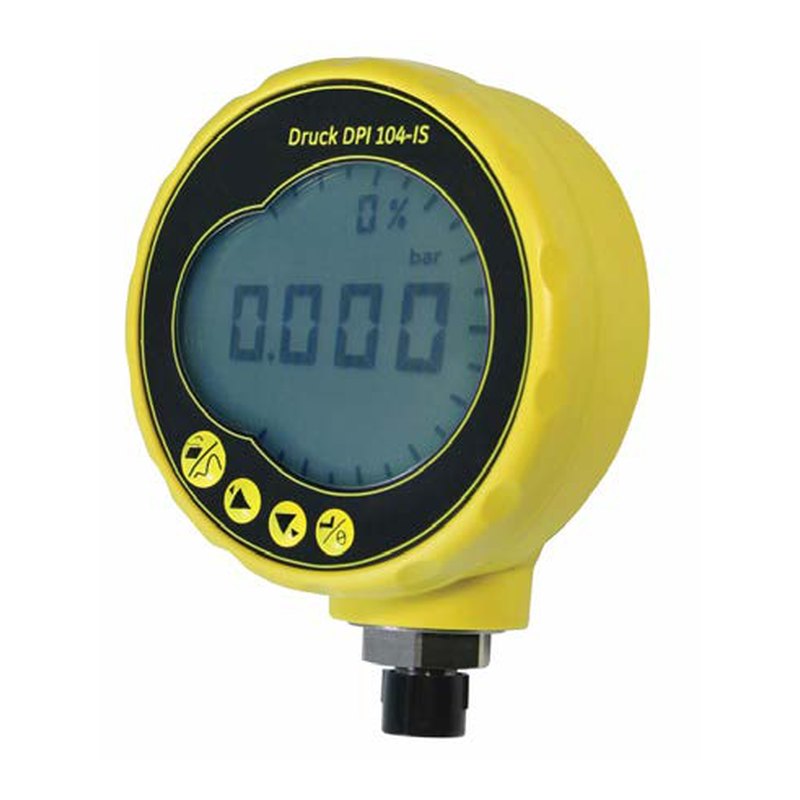

Druck DPI 104 pressure calibration kit: 0.05% digital test gauge with pneumatic or hydraulic hand pump
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Signal / Protocol: RS-232, Voltage
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1512 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Druck |
| Model | DPI 104 kit (with PV210 / PV211 / PV212 / PV411) |
| Technical | |
| Type | Calibration equipment |
| Signal / Protocol | RS-232, Voltage |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Complete field kit | DPI 104 digital test gauge, hand pump, adaptor kit, hose and pressure relief valve in a transit case |
|---|---|
| Gauge temperature-compensated from −10 to 50 °C; % indication and bar graph | |
| Pressure switch test captures open and close points | |
| Min/max, tare, alarm and menu lock; 0–5 V output proportional to pressure | |
| Stainless steel 316 or Inconel welded pressure cavity for aggressive media | |
| Intrinsically safe DPI104-IS gauge for hazardous areas | |
Applications
| Field calibration of pressure gauges, transmitters and switches | |
| Process pressure monitoring and leak testing | |
| Hazardous-area pressure checks (IS gauge) |
Key specifications
| Gauge accuracy | 0.05% FS (−10 to 50 °C) |
|---|---|
| Gauge ranges | 0–0.7 bar to 0–1,400 bar |
| Pumps | Pneumatic to 2 or 20 bar; hydraulic to 1,000 bar; combined pneumatic/hydraulic to 700 bar |
| Display | 5 digits + bar graph; 11 pressure units |
| Outputs | 0–5 V, alarm, switch test, RS232 |
| Approvals | IS gauge: ATEX/IECEx Ex ia IIC T4 Ga; ETL Class I Zone 0 |
DPI 104 gauge
| Accuracy | 0.05% FS incl. non-linearity, hysteresis, repeatability and temperature effects (−10 to 50 °C); 0.15% FS on 0.7 bar range |
|---|---|
| Burst pressure | 2 × working pressure (1,400 bar range: 2,000 bar) |
| Units | kPa, MPa, kg/cm², mbar, bar, psi, inHg, inH2O, mH2O, mmH2O, mmHg |
| Voltage output | 0–5 V, 0.1% FS |
| Alarm output | Open drain FET, 250 mA, 24 V DC |
| Pressure port | ¼ NPT or BSP male (to 700 bar); 9/16-18 UNF cone (1,000 and 1,400 bar) |
| Enclosure | ABS/PC, Type 4 / IP65; 316 SS or Inconel wetted parts |
| Battery | 9 V, ≈ 6 months at 1 h/day |
| Operating / storage temperature | −10 to +50 °C / −20 to +70 °C |
| Size / weight | 95 mm diameter, 55 mm deep; 350 g |
| Hazardous area (DPI104-IS) | ATEX, IECEx, UKEX Ex ia IIC T4 Ga; ETL Class I Zone 0 AEx ia IIC T4 Ga |
Kits
| Low-pressure pneumatic | PV210 pump, gauge up to 2 bar |
|---|---|
| Pneumatic | PV211 pump, gauge up to 20 bar |
| Hydraulic | PV212 pump, gauge up to 1,000 bar |
| Pneumatic and hydraulic | PV411 pump, gauge up to 700 bar |
Gauge ranges
| Range | Type | Resolution | Max. working pressure |
|---|---|---|---|
| 0–0.7 bar | Gauge | 0.01 mbar | 0.77 bar |
| 0–2 bar | Gauge or absolute | 0.1 mbar | 2.2 bar |
| 0–7 bar | Gauge or absolute | 0.1 mbar | 7.7 bar |
| 0–20 bar | Gauge or absolute | 1 mbar | 22 bar |
| 0–70 bar | Gauge or absolute | 1 mbar | 77 bar |
| 0–200 bar | Sealed gauge | 10 mbar | 220 bar |
| 0–350 bar | Sealed gauge | 10 mbar | 385 bar |
| 0–700 bar | Sealed gauge | 10 mbar | 770 bar |
| 0–1,000 bar | Sealed gauge | 100 mbar | 1,100 bar |
| 0–1,400 bar | Sealed gauge | 100 mbar | 1,540 bar |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Druck, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Druck DPI 104 calibration kit pairs the DPI 104 digital test gauge (0.05% FS accuracy) with a hand pump, hose, adaptors and relief valve in a transit case. Kits generate pressure pneumatically to 2 or 20 bar, hydraulically to 1,000 bar, or with a combined pneumatic/hydraulic pump to 700 bar, and gauge ranges run from 0.7 bar to 1,400 bar.
The gauge has a five-digit display with bar graph, 11 units, pressure switch testing, min/max, tare and alarm functions, a 0–5 V output and RS232. It is IP65 with 316 SS or Inconel wetted parts, runs about six months on a 9 V battery, and is available as an intrinsically safe version for Zone 0.
Argonmark Ltd supplies Druck instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
