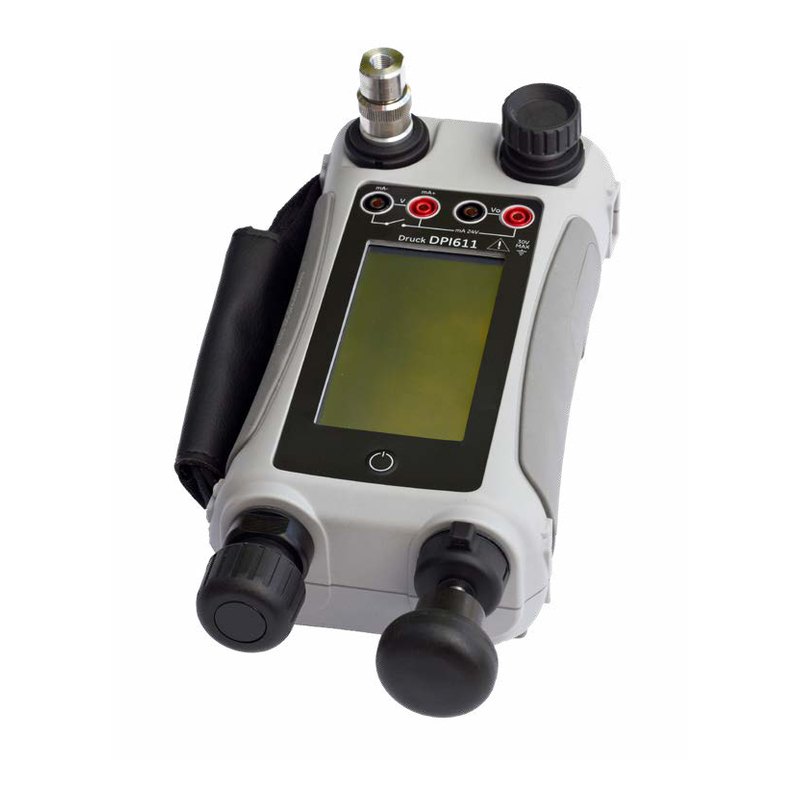

Druck DPI 611 hand-held pressure calibrator, built-in pump 95% vacuum to 20 bar, 0.0185% FS
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1513 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Druck |
| Model | DPI 611 |
| Technical | |
| Type | Calibration equipment |
| Hazardous area | General purpose |
Datasheet
Technical features
| Self-contained | pressure generation, pressure and electrical measurement and loop power in one hand-held unit |
|---|---|
| Pressure/vacuum selector, volume adjuster and precision vent valve for fine control | |
| Tool-less quick-fit pressure adaptors (G⅛ and ⅛ NPT supplied) | |
| Step, ramp, span-check and nudge mA output; switch test with hysteresis; relief valve test; leak test | |
| Scaling (incl. flow square root), max/min/mean, pass/fail error calculation and documentation | |
| Optional IDOS external pressure modules; USB; 4Sight2 Lite licence included | |
Applications
| Field calibration of pressure transmitters, gauges and switches | |
| Loop checks, valve positioner and safety system testing | |
| Relief valve and leak testing |
Key specifications
| Pressure ranges | −1 to 1, 2, 7, 10 or 20 bar gauge |
|---|---|
| Accuracy | 0.0185% FS; total uncertainty 0.025% FS (1 year) |
| Generation | Built-in pneumatic pump: 95% vacuum to 20 bar in under 30 s |
| Electrical | Measure mA, mV, V, switch; source mA; 24 V loop power and 10 V supply |
| Display | 4.3 in colour touch screen |
| Power | 8 × AA (18–26 h) or mains adaptor |
Electrical (total uncertainty, 1 year, 10–30 °C)
| Measure DC voltage | ±200 mV, ±2,000 mV, ±20 V, ±30 V: 0.018% rdg + 0.005% FS |
|---|---|
| Measure current | ±20 mA: 0.015% rdg + 0.006% FS; ±55 mA: 0.018% rdg + 0.006% FS |
| Source current | 0–24 mA (external or internal loop power): 0.018% rdg + 0.006% FS |
| Supplies | 24 V loop power and 10 V regulated, 25 mA max. |
| Temperature effect | 0.001% FS/°C outside 10–30 °C |
General
| Pressure media | Most gases compatible with aluminium, brass, stainless steel, nitrile, polyurethane, PTFE, acetal, nylon |
|---|---|
| Overpressure | 150% FS; internal relief valve |
| Display | 110 mm colour touch screen, 480 × 272; up to 3 reading windows |
| Memory | 8 GB for procedures, results and data logs |
| Operating temperature | −10 to +50 °C (0–40 °C on mains adaptor) |
| Protection | IP54 |
| Shock / vibration | EN 61010-1; MIL-PRF-28800F Class 2 |
| Power | 8 × AA alkaline, 18–26 h; mains adaptor 100–260 V AC |
| Connectivity | USB A, USB mini B |
| Size / weight | 270 × 130 × 120 mm; 1.96 kg with batteries |
Pressure ranges (gauge)
| Model | Range | Accuracy | Total uncertainty (1 year) |
|---|---|---|---|
| DPI611-05G | −1 to 1 bar | 0.0185% FS | 0.025% FS |
| DPI611-07G | −1 to 2 bar | 0.0185% FS | 0.025% FS |
| DPI611-10G | −1 to 7 bar | 0.0185% FS | 0.025% FS |
| DPI611-11G | −1 to 10 bar | 0.0185% FS | 0.025% FS |
| DPI611-13G | −1 to 20 bar | 0.0185% FS | 0.025% FS |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Druck, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Druck DPI 611 is a hand-held pressure calibrator that combines a built-in pneumatic pump, a precision pressure sensor, electrical measurement and loop power. It generates from 95% vacuum to 20 bar in under 30 seconds, measures pressure to 0.0185% FS (0.025% FS total uncertainty over a year) and measures and sources mA and voltage with a 24 V loop supply.
A touch-screen dashboard runs tasks such as transmitter calibration, switch tests with hysteresis, relief-valve and leak tests, and stepped or ramped mA output, and records pass/fail results. It runs 18–26 hours on AA cells, is IP54 and weighs under 2 kg.
Argonmark Ltd supplies Druck instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
