Mensor CPC2000 portable low-pressure controller, 1 to 1,000 mbar, internal pump, 0.1% FS
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Signal / Protocol: RS-232, USB
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1515 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Mensor |
| Model | CPC2000 |
| Technical | |
| Type | Calibration equipment |
| Signal / Protocol | RS-232, USB |
| Hazardous area | General purpose |
Datasheet
Technical features
| Portable calibrator that generates and controls very low positive or negative pressures automatically | |
| Automatic zero at switch-on and at set intervals eliminates zero drift | |
| Measure, control and automatic step modes; leak test shows pressure drop and time | |
| 10 pressure units; menu in English, German, Spanish and French | |
| WIKA-Cal software support; 3.1 certificate (DAkkS optional) |
Applications
| Calibration of low-pressure gauges, switches and transmitters in HVAC, filtration and clean rooms | |
| Medical technology pressure testing | |
| Precise measurement of small gauge and differential pressures |
Key specifications
| Ranges | 0–1, 10, 50, 100, 500 or 1,000 mbar gauge |
|---|---|
| Accuracy | 0.1% FS (0.3% FS on 0–1 mbar) |
| Pressure generation | Internal electric pump, positive and negative |
| Control | Steps 0–50% or 100%; ≈ 5 s per step |
| Interface | RS-232 and USB |
| Power | 24 V DC adaptor or Li-ion battery (≈ 8 h) |
Specification
| Ranges | 0–1, 0–10, 0–50, 0–100, 0–500, 0–1,000 mbar gauge |
|---|---|
| Accuracy (k = 2, incl. 1-year stability) | 0.3% FS (1 mbar range); 0.1% FS (other ranges) |
| Overpressure protection | 5 × (≤ 100 mbar); 2 × (> 100 mbar) |
| Units | Pa, kPa, hPa, bar, mbar, psi, inH2O, inHg, mmHg, Torr |
| Pressure medium | Ambient air; wetted parts Ni, Al, CuBe, PUR |
| Connections | Hose nipples for 6 mm tube |
| Display | Backlit multi-line graphic, 4–5 digits |
| Control | Steps 0–50% adjustable or 100%; ≈ 5 s depending on volume |
| Interface | RS-232 and USB; 1 value/s |
| Power | 24 V DC 1 A, 24 VA; Li-ion battery ≈ 8 h |
| Operating / storage temperature | 10 to 40 °C / −10 to +70 °C; 30–80% RH |
| Protection | IP20 |
| Size / weight | 102.6 × 257 × 271 mm; 4.6 kg |
| Warm-up | ≈ 15 min |
| Approvals | CE (EN 61326-1); EAC and others optional |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Mensor, used with permission (source) — background removed by Argonmark. All photo credits
Description

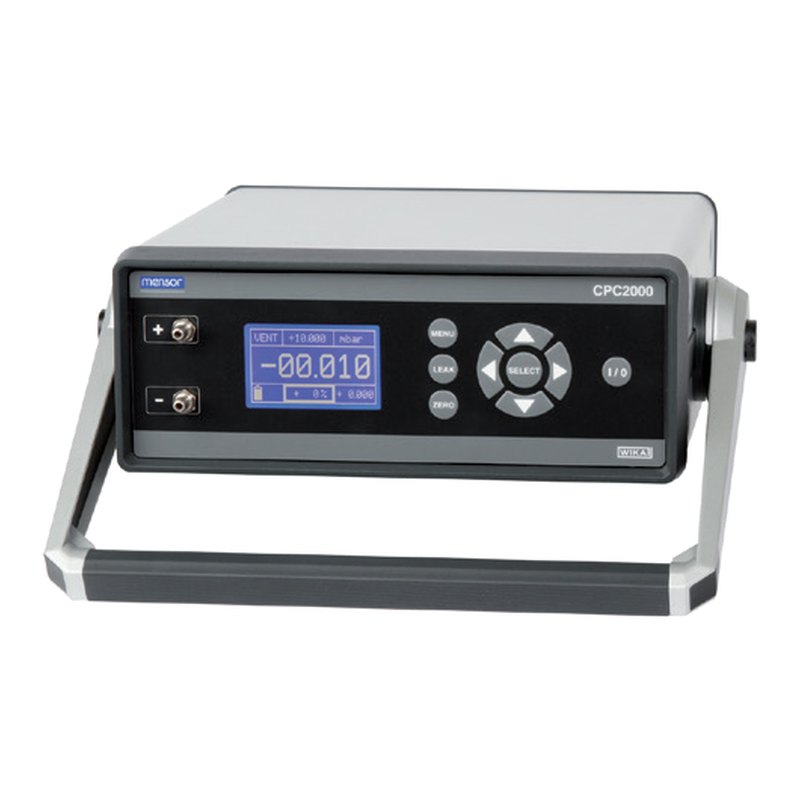

The Mensor CPC2000 is a portable low-pressure controller with an internal electric pump that generates and controls positive or negative pressures from 1 mbar up to 1,000 mbar full scale with 0.1% FS accuracy. It zeroes itself automatically, steps the pressure up or down in user-set increments and has a leak-test function that shows the pressure drop over time.
It runs from a 24 V adaptor or an internal Li-ion battery for about eight hours, connects to a PC over RS-232 or USB, and suits calibration work in HVAC, filtration, clean rooms and medical technology.
Argonmark Ltd supplies Mensor instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
