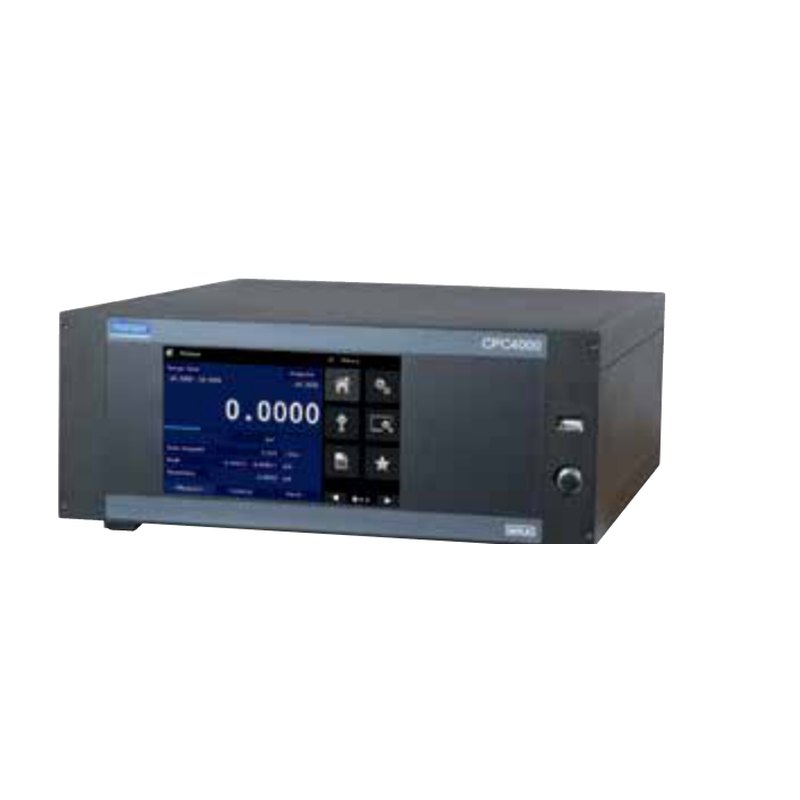

Mensor CPC4000 industrial pressure controller, up to 210 bar, 0.02% FS, interchangeable sensors
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Signal / Protocol: RS-232, USB
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1516 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Mensor |
| Model | CPC4000 (with CPR4000 sensors) |
| Technical | |
| Type | Calibration equipment |
| Signal / Protocol | RS-232, USB |
| Hazardous area | General purpose |
Datasheet
Technical features
| Single-channel multi-range controller; plug-in CPR4000 reference sensors ordered separately within the regulator range | |
| Optional barometric reference for absolute/gauge emulation | |
| Precision, high-speed and custom control modes; up to 24 stored sequences of 99 steps | |
| Desktop case or 19 in rack mount; 40 µm filters on all ports | |
| Optional Automatic Contamination Prevention System (A-CPS) protects the controller from dirty devices under test | |
| Mensor and WIKA SCPI command sets; WIKA-Cal software |
Applications
| Automated calibration of pressure transmitters, gauges and switches in workshops and labs | |
| Production testing of pressure devices |
General
| Display | 7 in colour LCD, resistive touch; 4–6 digits |
|---|---|
| Interfaces | Ethernet, IEEE-488, USB, RS-232; response ≈ 100 ms |
| Power | 100–120 or 220–240 V AC 50/60 Hz, 150 VA |
| Compensated temperature | 15–45 °C; storage −20 to +70 °C; 5–95% RH |
| Weight | ≈ 12.7 kg |
| Approvals | CE (EN 61326-1 class A, EN 61010-1); A2LA calibration certificate |
Key specifications
| Ranges | Gauge 0–0.35 to 0–210 bar; bi-directional to −1…210 bar; absolute 0–1 to 0–211 bar |
|---|---|
| Accuracy | 0.02% FS (0.02% IS-50 optional) |
| Control stability | < 0.005% FS (precision mode) |
| Control time | ≈ 10 s (10% FS step, 50 ml) |
| Interface | Ethernet, IEEE-488, USB, RS-232 |
| Display | 7 in colour touch screen |
Reference sensors (CPR4000)
| Accuracy (k = 2, 1 year) | 0.02% FS; optional 0.02% IS-50 (0.02% of half scale below 50% FS, 0.02% of reading above) |
|---|---|
| Precision | 0.008% FS |
| Barometric reference (option) | 552–1,172 mbar abs., 0.02% of reading |
| Units | 39 plus 2 user-defined |
Controller
| Control stability | < 0.005% FS of primary range (precision mode) |
|---|---|
| Control time | 10 s for 10% FS step in 50 ml (high-speed mode) |
| Overshoot | < 1% FS (high speed); typ. < 0.1% FS (precision) |
| Minimum control pressure | 0.0017 bar over exhaust or 0.05% FS |
| Test volume | 50–1,000 cm³ |
| Regulator modules | LPSVR ±0.17 bar; MPSVR ±0.35 bar; HPSVR −1 to 5 bar; EPSVR −1 to 10 bar; higher-pressure modules to 210 bar |
| Pressure media | Dry, clean air or nitrogen (ISO 8573-1 class 5.5.4) |
| Supply port | 110% FS or 0.69 bar, whichever greater |
| Connections | 7/16-20 SAE ports, ⅛ NPT, 10-32 UNF barometric port; adaptors optional |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Mensor, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Mensor CPC4000 is an automatic pressure controller for calibrating and testing pressure instruments, with interchangeable CPR4000 reference sensors covering gauge ranges from 0.35 to 210 bar, bi-directional ranges from −1 bar, and absolute ranges to 211 bar. Accuracy is 0.02% FS, with control stability better than 0.005% FS and about 10 seconds to reach a new set point.
It has a 7 in touch screen, stores up to 24 test sequences, and offers Ethernet, IEEE-488, USB and RS-232 for automation. A barometric reference allows absolute/gauge emulation, and the optional A-CPS keeps contamination from devices under test out of the controller.
Argonmark Ltd supplies Mensor instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
