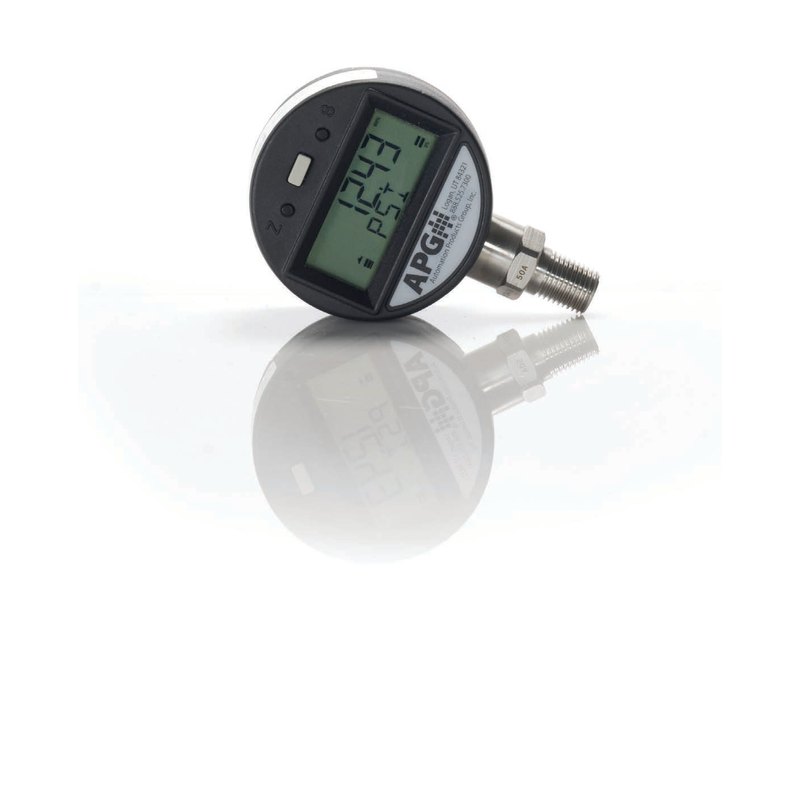

APG PG5 general-purpose digital pressure gauge, vacuum to 690 bar, ±0.25% FS
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure gauges & indicators
- Signal / Protocol: 4–20 mA, Voltage
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1518 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | PG5 |
| Technical | |
| Type | Pressure gauges & indicators |
| Signal / Protocol | 4–20 mA, Voltage |
| Hazardous area | General purpose |
Datasheet
Technical features
| Full 5-digit display, compact and easy to use | |
| Tare, peak hold and max/min as standard; selectable units | |
| Gauge, compound, vacuum, absolute and sealed-gauge versions | |
| Optional outputs | 4–20 mA, 0–2 V, 0–5 V |
|---|---|
| Bottom or rear port, O2-clean and remote-sensor versions | |
Applications
| Process pressure monitoring | |
| Test and calibration benches | |
| Hydraulic and pneumatic systems |
Key specifications
| Range | Vacuum to 10,000 psi (690 bar) |
|---|---|
| Accuracy | ±0.25% FS (±0.1% on selected ranges) |
| Display | 0.4 in (10 mm) 5-digit LCD |
| Outputs | 4–20 mA, 0–2 V, 0–5 V |
| Power | One 9 V battery (≈ 700 h) or 9–28 V DC |
| Approvals | CE; NIST certificate option |
Performance and options
| Accuracy (BFSL, linearity and hysteresis) | ±0.25% FS; ±0.1% FS with NIST certificate on selected ranges |
|---|---|
| Stability | One-year zero drift < ±1% FS |
| Thermal effects | Zero and span ±0.036% FS/°C |
| Life | 10 million cycles minimum |
| Pressure types | Gauge, compound and absolute (≤ 500 psi), vacuum, sealed gauge (≥ 500 psi) |
| Units | psi, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm² |
| Functions | Auto zero, tare, peak hold, max/min, sample rate, range adjustment, adjustable resolution, auto-off |
| Temperature | Compensated −7 to +54 °C; operating −18 to +71 °C; storage −40 to +71 °C |
| Process connections | ¼-18 NPT male standard; 7/16-20 SAE, ⅛ NPT, ¼ BSP; bottom or rear port; O2-clean and remote-sensor options |
| Analog output options | 4–20 mA loop powered (9–28 V DC), 0–2 V or 0–5 V; 14-bit, reverse-polarity protected |
PG5 specific
| Display | 0.4 in (10 mm) 5-digit LCD |
|---|---|
| Power | One 9 V battery (≈ 700 h) or 9–28 V DC |
| Wetted materials | 316L SS up to 5,000 psi; 15-5 SS above |
| Case | Injection-moulded |
| Size / weight | 67.6 × 39.4 mm; 163 g |
Common ranges
| Range (psi) | Approx. bar | Reference |
|---|---|---|
| 0–15 | 1 | Gauge or absolute |
| 0–30 | 2 | Gauge |
| 0–100 | 7 | Gauge |
| 0–300 | 20 | Gauge |
| 0–500 | 35 | Gauge |
| 0–1,000 | 69 | Sealed gauge |
| 0–5,000 | 345 | Sealed gauge |
| 0–10,000 | 690 | Sealed gauge |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG PG5 is a general-purpose digital pressure gauge reading from vacuum up to 10,000 psi (690 bar) with ±0.25% FS accuracy (±0.1% on selected ranges) and less than 1% FS drift per year. Its 0.4 in (10 mm) 5-digit LCD is easy to read, and tare, peak hold and max/min functions are standard, with units selectable from psi to bar, kPa and water column.
It runs on one 9 V battery (≈ 700 h) or 9–28 V DC, and options include 4–20 mA, 0–2 V, 0–5 V outputs, gauge, absolute, vacuum and sealed-gauge references, and several process connections.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
