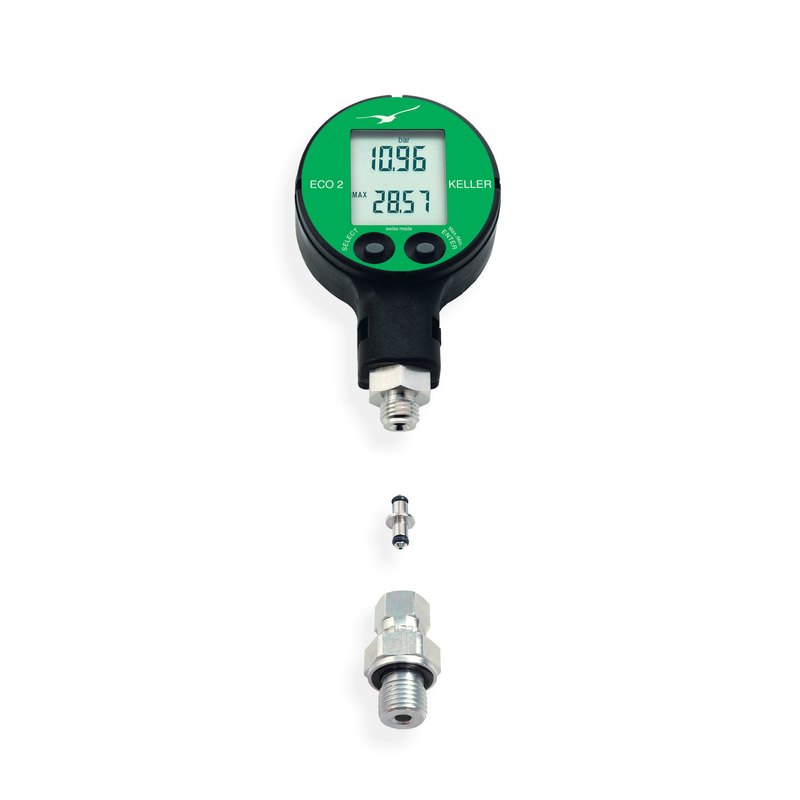

Keller ECO 2 compact digital pressure gauge, −1…30 bar or 0…300 bar, max/min, intrinsically safe option
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure gauges & indicators
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1521 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Keller |
| Model | ECO 2 / ECO 2 Ei |
| Technical | |
| Type | Pressure gauges & indicators |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Compact, economical piezoresistive digital gauge with high resolution and repeatability | |
| Measures twice per second; lower display shows max or min since last reset | |
| Zero function for relative measurement or barometric compensation | |
| Units | bar, mbar/hPa, kPa, MPa, psi, kp/cm² |
|---|---|
| 360° swivel fitting seals up to 300 bar with minimal torque; G¼ male process connection | |
Applications
| Pressure checks on hydraulic, pneumatic and water systems | |
| Field service and maintenance | |
| Hazardous-area pressure checks (Ei version) |
Key specifications
| Ranges | −1…30 bar (overpressure 60 bar) or 0…300 bar (overpressure 400 bar) |
|---|---|
| Accuracy | < 0.5% FS at room temperature; total error band < 1% FS (0–50 °C) |
| Resolution | 10 mbar / 100 mbar |
| Display | Dual: actual pressure + max or min |
| Power | 3 V CR2430 battery, ≈ 1,000 h |
| Approvals | ECO 2 Ei: ATEX II 1 G Ex ia IIC T5 Ga; IECEx |
Specification
| Ranges | −1…30 bar (zero set at vacuum, relative after ZERO) or 0…300 bar (zero at atmosphere) |
|---|---|
| Resolution | 10 mbar (30 bar) / 100 mbar (300 bar) |
| Overpressure | 60 bar / 400 bar |
| Accuracy at room temperature | < 0.5% FS (linearity, repeatability, hysteresis, display resolution) |
| Total error band (0–50 °C) | < 1% FS |
| Operating / storage temperature | 0…50 °C / −20…70 °C |
| Power | 3 V lithium CR2430; ≈ 1,000 h continuous; auto-off after 15 min (can be disabled) |
| Wetted materials | AISI 316L; swivel nickel-plated brass with nitrile O-rings; adapter galvanised steel, NBR seal |
| Connection | 7/16 in UNF male with swivel to G¼ male |
| Protection | IP65 |
| Size / weight | 59 × 95 × 32 mm; ≈ 100 g (adapter 40 g) |
| Ex version | ECO 2 Ei: II 1 G Ex ia IIC T5 Ga (LCIE 01 ATEX 6001 X); IECEx LCIE 18.0035X |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Keller, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Keller ECO 2 is a compact and economical digital pressure gauge with a piezoresistive sensor, available for −1…30 bar or 0…300 bar. It reads twice per second with accuracy better than 0.5% FS and shows the current pressure together with the maximum or minimum since the last reset; a zero function allows relative readings or barometric compensation.
Its 316L stainless steel sensor is fitted with a 360° swivel and G¼ connection, the housing is IP65, and it runs about 1,000 hours on a coin cell. The ECO 2 Ei version is intrinsically safe (Ex ia IIC T5) for Zone 0.
Argonmark Ltd supplies Keller instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
