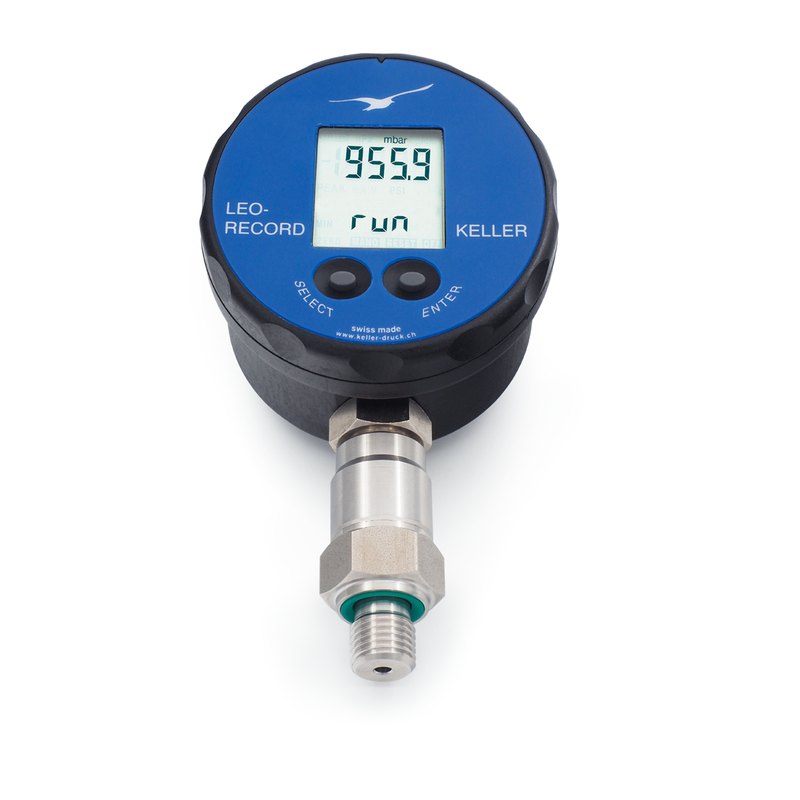

Keller LEO-Record digital pressure gauge with data logger, −1…3 to 0…1,000 bar, 0.05% FS
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: RS-485
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1522 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Keller |
| Model | LEO-Record / LEO-Record-Ei |
| Technical | |
| Type | Level |
| Signal / Protocol | RS-485 |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Records pressure and temperature over long periods in non-volatile memory | |
| Constant-interval or event-triggered recording (above/below a value, on change); linear or ring memory | |
| Very low power consumption; roughly two years on one battery | |
| Capacitive low-range versions including differential (PD) with reference capillary | |
| KOLIBRI Desktop software | configuration, live chart, export to CSV/Excel; water level calculation |
|---|---|
| Intrinsically safe LEO-Record-Ei for explosive atmospheres | |
Applications
| Long-term pressure monitoring and logging | |
| Water supply line and leakage monitoring | |
| Oil field pressure monitoring; gas line pressure checks |
Mechanical
| Wetted materials | 316L stainless steel (piezo: 316L diaphragm, FKM seal; capacitive: gold-plated alumina, 316L, nitrile) |
|---|---|
| Connection | G¼ male or ¼-18 NPT male |
| Medium / ambient temperature | −40…85 °C / −10…60 °C |
| Protection | IP65; optional rubber cover |
| Size / weight | 76 × 125 × 54 mm; 250 g (capacitive 350 g) |
Key specifications
| Ranges | Piezoresistive −1…3 to 0…1,000 bar; capacitive 0…30 mbar to 0…300 mbar |
|---|---|
| Accuracy | ±0.05% FS (piezo); total error band ±0.1% FS (0–50 °C) |
| Logging | Pressure and temperature, up to 57,000 time-stamped values |
| Interface | RS485 (KOLIBRI software) |
| Power | 3.6 V lithium (≈ 2 years at 10 s interval) or 8–28 V DC |
| Approvals | LEO-Record-Ei: II 2G Ex ia IIC T4 Gb; IP65 |
Performance
| Accuracy at 20–25 °C | ≤ ±0.05% FS (piezoresistive); ≤ ±0.1% FS (capacitive) |
|---|---|
| Total error band (0–50 °C) | ≤ ±0.1% FS (piezoresistive); ≤ ±0.2% FS (capacitive) |
| Long-term stability | ≤ ±0.1% FS per year |
| Range reserve | ±10% |
| Temperature measurement | ±1 °C typ. |
| Line pressure (PD) | ≤ 2 bar; effect ≤ ±0.005% FS/bar |
Logger and electrical
| Memory | 57,000 values with timestamp (interval ≤ 15 s); 28,000 (interval > 15 s); shortest interval 1 s |
|---|---|
| Battery | 3.6 V lithium SL-760; ≈ 2 years at 10 s storage interval |
| External supply | 8–28 V DC (not for Ei version) |
| Interface | RS485 half-duplex, 2 readings/s |
| Display | 2 rows × 5 digits; bar, mbar, hPa, kPa, MPa, psi, mH2O, cmH2O, kp/cm² + 5 user units |
Piezoresistive ranges
| Relative (bar) | Absolute (bar abs.) | Proof (bar) | Resolution (bar) |
|---|---|---|---|
| −1…3 | 0…4 | 10 | 0.001 |
| −1…10 | 0…11 | 30 | 0.001 |
| −1…30 | 0…31 | 90 | 0.01 |
| – | 0…61 | 180 | 0.01 |
| – | 0…101 | 300 | 0.01 |
| – | 0…300 | 600 | 0.1 |
| – | 0…700 | 1,200 | 0.1 |
| – | 0…1,000 | 1,200 | 0.1 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Keller, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Keller LEO-Record is a digital pressure gauge with a built-in data logger that records pressure and temperature over long periods. Piezoresistive versions cover −1…3 bar up to 0…1,000 bar with ±0.05% FS accuracy (±0.1% FS total error band from 0 to 50 °C), and capacitive versions cover very low ranges from 30 mbar, including differential pressure.
It stores up to 57,000 time-stamped values, at fixed intervals or triggered by events, and runs about two years on one lithium battery. Data is read out over RS485 with KOLIBRI software. The LEO-Record-Ei version is intrinsically safe (Ex ia IIC T4).
Argonmark Ltd supplies Keller instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
