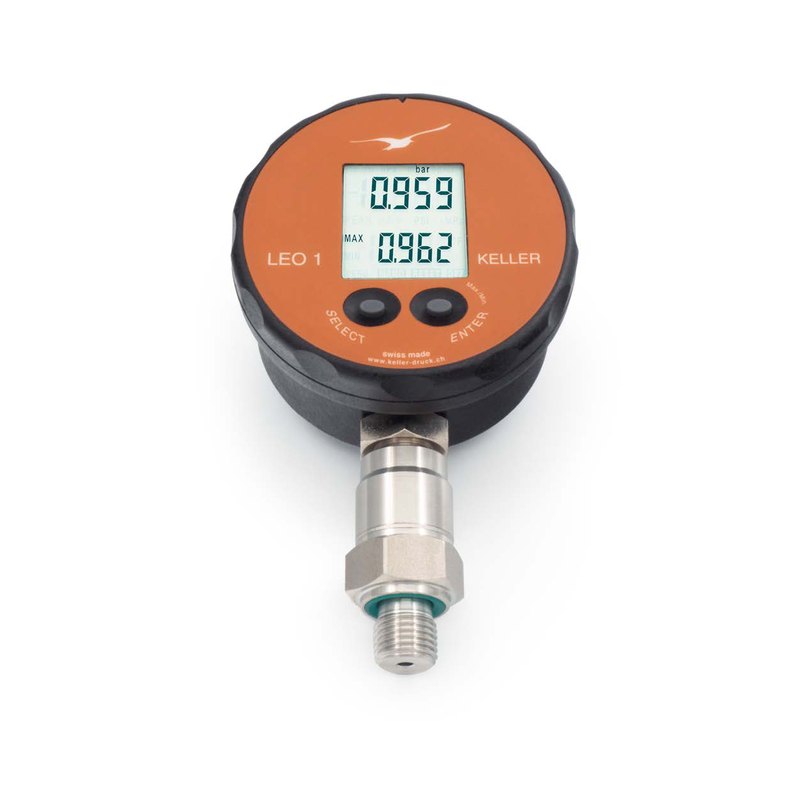

Keller LEO1 digital pressure gauge with fast peak detection (≥ 1 kHz), −1…3 to 0…1,000 bar, 0.1% FS
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure gauges & indicators
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1523 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Keller |
| Model | LEO1 / LEO1-Ei |
| Technical | |
| Type | Pressure gauges & indicators |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Peak mode samples at ≥ 1 kHz to catch fast pressure spikes and surges | |
| Insulated, encapsulated piezoresistive sensor; min/max display | |
| Zero by key; automatic shutdown; selectable units bar, mbar, hPa, kPa, MPa, psi, kp/cm² | |
| > 10 million pressure cycles | |
| Intrinsically safe LEO1-Ei version |
Applications
| Detecting pressure spikes and surges in pumps and hydraulic systems | |
| HVAC service and fluid technology | |
| Reference display on calibration hand pumps |
Key specifications
| Ranges | −1…3 bar to 0…1,000 bar (relative or absolute) |
|---|---|
| Accuracy | ±0.1% FS; total error band ±0.2% FS (0–50 °C) |
| Measuring rate | 2/s standard; ≥ 1,000/s peak mode |
| Display | 2 × 4½ digits: pressure + min/max |
| Power | 3 V CR2430, up to 1,000 h |
| Approvals | LEO1-Ei: ATEX/IECEx intrinsically safe; IP65 |
Specification
| Accuracy at 20–25 °C | ≤ ±0.1% FS |
|---|---|
| Total error band (0–50 °C) | ≤ ±0.2% FS |
| Long-term stability | ±0.2% FS per year |
| Range reserve | ≥ ±10% |
| Measuring rate | 2/s (mano mode); ≥ 1,000/s (peak mode) |
| Battery | 3 V CR2430; up to 1,000 h (mano), 150 h (peak) |
| Wetted materials | 316L stainless steel (≤ 400 bar), 318LN above; FKM external seal |
| Connection | G¼ male or ¼ NPT male |
| Medium / ambient temperature | −40…85 °C / −10…60 °C |
| Protection | IP65 |
| Size / weight | 76 × 113 × 48 mm; ≈ 220 g |
| Ex version | LEO1-Ei: LCIE 01 ATEX 6001 X; IECEx LCIE 18.0035 X |
Ranges
| Relative (bar) | Absolute (bar abs.) | Proof (bar) | Resolution (bar) |
|---|---|---|---|
| −1…3 | 0…4 | 12 | 0.001 |
| −1…10 | 0…11 | 30 | 0.002 |
| −1…30 | 0…31 | 90 | 0.01 |
| – | 0…61 | 180 | 0.01 |
| – | 0…101 | 300 | 0.02 |
| – | 0…300 | 600 | 0.1 |
| – | 0…700 | 1,200 | 0.2 |
| – | 0…1,000 | 1,200 | 0.2 |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Keller, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Keller LEO1 is a digital pressure gauge with a fast peak-detection mode that samples at 1 kHz or more to catch pressure spikes and surges. It covers −1…3 bar up to 0…1,000 bar with ±0.1% FS accuracy and a ±0.2% FS total error band from 0 to 50 °C, and shows pressure together with min/max values.
Its 316L stainless steel sensor mounts with G¼ or ¼ NPT, the housing is IP65, and the battery lasts up to 1,000 hours in normal mode. The LEO1-Ei is an intrinsically safe version for hazardous areas.
Argonmark Ltd supplies Keller instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
