Keller LEO 3 loop-powered pressure transmitter with digital display, 4–20 mA + RS485, −1…3 to 0…1,000 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA, RS-485
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1525 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Keller |
| Model | LEO 3 |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA, RS-485 |
| Hazardous area | General purpose |
Datasheet
Technical features
| Microprocessor transmitter with display powered from the 4–20 mA loop | |
| Analog output scalable from the front keys (set 4 mA and 20 mA at applied pressure) | |
| RS485 Keller bus | up to 128 devices; CCS30 software for logging and configuration |
|---|---|
| Max/min, reset, zero set/restore; units bar, mbar/hPa, kPa, MPa, psi, kp/cm² | |
| Measuring rate up to 90 per second | |
Applications
| Local pressure display with 4–20 mA transmission to PLC/DCS | |
| Test benches and process skids needing both display and signal |
Key specifications
| Ranges | Relative −1…3 / −1…10 / −1…30 bar; absolute 0…4 to 0…1,000 bar |
|---|---|
| Accuracy | ≤ 0.1% FS at room temperature |
| Output | 4–20 mA 2-wire (scalable) + RS485 Keller bus |
| Supply | 8–28 V DC (loop powered) |
| Display | Dual LCD: pressure + output or min/max |
| Protection | IP65 |
Specification
| Ranges | PR −1…3, −1…10, −1…30 bar; PA 0…30, 0…100, 0…300, 0…700, 0…1,000 bar; PAA 0…4, 0…10, 0…30 bar |
|---|---|
| Overpressure | 8 / 20 / 60 / 200 / 600 / 1,100 / 1,100 bar (by range) |
| Display resolution | 1 to 200 mbar depending on range |
| Interface resolution | 0.0125% FS |
| Accuracy at room temperature | ≤ 0.1% FS (linearity, repeatability, hysteresis) |
| Compensated temperature | 0…50 °C |
| Output | 4–20 mA 2-wire / RS485 |
| Supply | 8–28 V DC |
| Measuring / display rate | Up to 90/s / 2/s |
| Connections | G¼ pressure; Binder 723 electrical (rear) |
| Protection | IP65 |
| Size / weight | 76 × 125 × 50 mm; ≈ 210 g |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

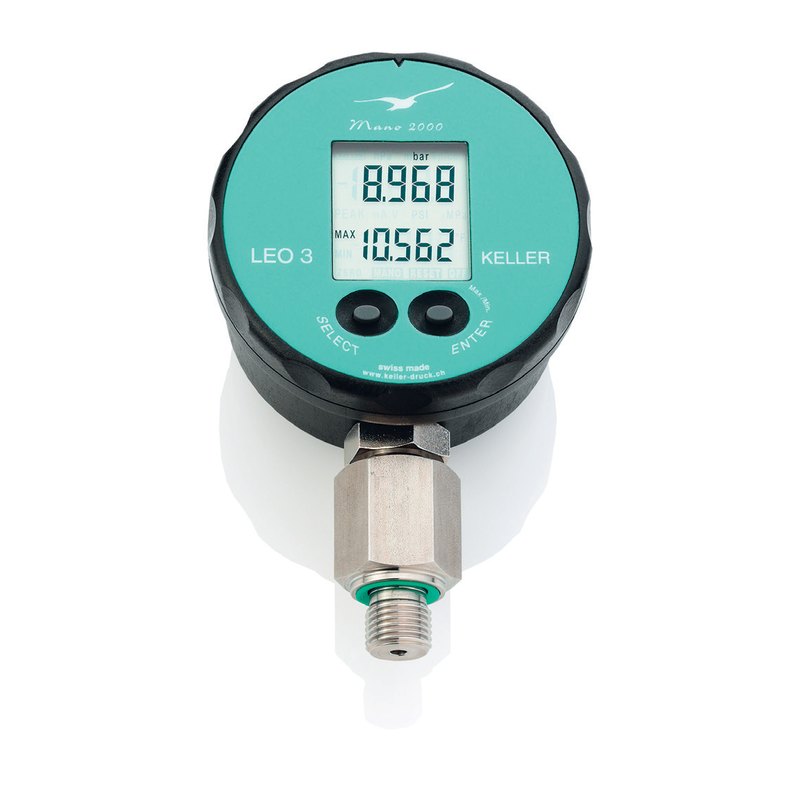

Photo: courtesy of Keller, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Keller LEO 3 is a pressure transmitter with a built-in two-line digital display, powered entirely from its 4–20 mA loop. It covers relative ranges from −1…3 bar and absolute ranges up to 0…1,000 bar with ≤ 0.1% FS accuracy, showing pressure on the top line and the output signal or min/max on the bottom line.
The analog output can be re-scaled from the front keys, and an RS485 Keller-bus interface connects up to 128 devices to PC software for logging and configuration. It has a G¼ connection, a rear Binder plug and an IP65 housing.
Argonmark Ltd supplies Keller instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
