WIKA CPG1500 precision digital pressure gauge, to 0.025% FS, up to 10,000 bar, data logger, Bluetooth, intrinsically safe
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure gauges & indicators
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1528 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | WIKA |
| Model | CPG1500 |
| Technical | |
| Type | Pressure gauges & indicators |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Analog-gauge simplicity with digital calibration-instrument accuracy | |
| Integrated data logger (cycle 1–3,600 s or 1/3/10/50 per second) | |
| Bluetooth (LE 4.0 / Classic 2.1) for WIKA-Cal, WIKA-DCS and the myWIKA app | |
| Min/max alarm, tare, damping, mean value, pressure rate, level indication | |
| Case rotates 330°; 26 units plus user units | |
| Intrinsically safe for Zone 0 |
Applications
| Oil and gas maintenance and pressure testing | |
| On-site calibration by service companies | |
| Hydrostatic and pressure tests with data logging |
Key specifications
| Ranges | Gauge 0…0.1 to 0…10,000 bar; absolute to 0…40 bar abs.; vacuum/compound −1…40 bar |
|---|---|
| Accuracy | 0.025%, 0.05%, 0.1% or 0.5% FS (range dependent) |
| Display | 5½-digit with 20-segment bar graph, backlit |
| Logging | Up to 1,000,000 values; up to 50 readings/s |
| Power | 3 × AA, typically 2,000–2,500 h |
| Approvals | ATEX/IECEx II 1G Ex ia IIC T4 Ga; CSA Class I Zone 0 (to 6,000 bar); IP65 |
Accuracy
| Gauge pressure | 0.025% or 0.05% FS (1–1,000 bar); 0.1% FS (1–2,500 bar); 0.5% FS (4,000–10,000 bar) |
|---|---|
| Absolute pressure | 0.025%, 0.05% or 0.1% FS (1–40 bar abs.) |
| Vacuum and ± ranges | 0.025%, 0.05% or 0.1% FS |
| Conditions | k = 2 total uncertainty incl. 1-year stability; 0.025/0.05% at ≤ 3 readings/s; compensated −10 to 50 °C |
General
| Measuring rate | Up to 50/s |
|---|---|
| Display range | −199,999 to 199,999; resolution 4 to 5½ digits |
| Wetted parts | 316 stainless steel (≤ 1,000 bar); 1.4534 above 1,000 bar; Elgiloy cell 40–1,000 bar |
| Media | Liquids and gases compatible with 316 stainless steel |
| Power | 3 × 1.5 V AA; 2,000–2,500 h (no backlight or Bluetooth) |
| Operating / storage temperature | −10 to +50 °C / −20 to +70 °C |
| Protection | IP65 |
| Weight | ≈ 680 g with batteries |
| Hazardous area | ATEX II 1G Ex ia IIC T4 Ga (Zone 0), II 2G Ex ia IIC T4 Gb; IECEx option; CSA Class I Zone 0 Ex ia IIC T4 Ga (to 6,000 bar) |
Pressure ranges (bar)
| Type | Ranges |
|---|---|
| Gauge | 0…0.1, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60, 100, 160, 200, 250, 400, 600, 700, 1,000, 1,600, 2,500, 4,000, 5,000, 6,000, 7,000, 8,000, 9,000, 10,000 |
| Absolute | 0…0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 7, 10, 16, 20, 25, 40 bar abs. |
| Vacuum / compound | −0.25…+0.25 up to −1…40 bar |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

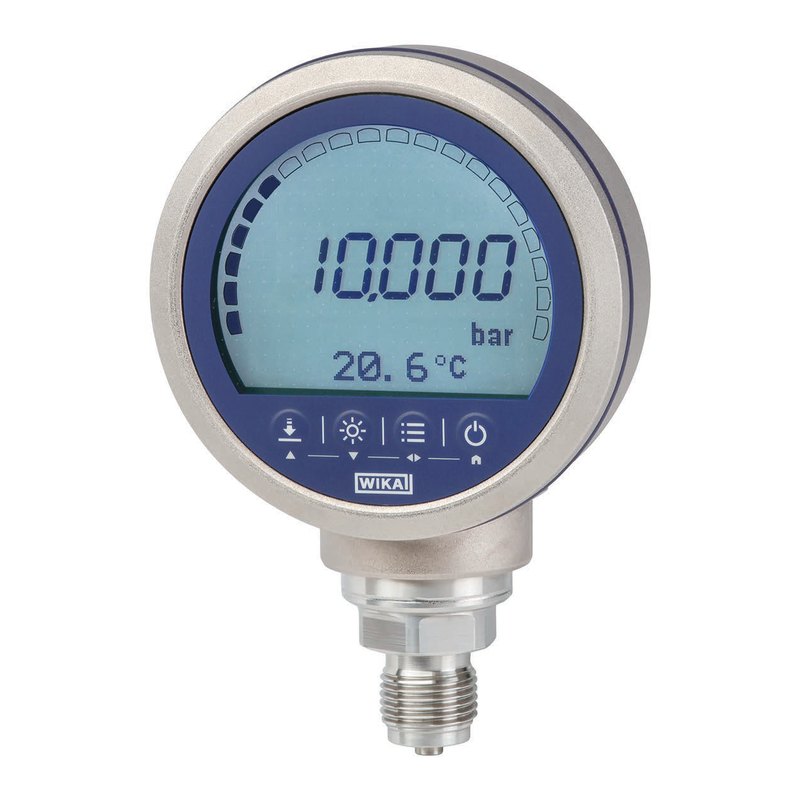

Photo: courtesy of WIKA, used with permission (source) — background removed by Argonmark. All photo credits
Description
The WIKA CPG1500 is a precision digital pressure gauge that combines the easy reading of an analog gauge with calibration-grade accuracy of up to 0.025% FS. Ranges extend from 0…0.1 bar to 0…10,000 bar gauge, plus absolute and vacuum/compound ranges, and it logs up to one million readings at rates up to 50 per second.
It connects over Bluetooth to WIKA-Cal software and a smartphone app, runs 2,000–2,500 hours on three AA cells, and has an IP65 case that rotates 330°. Intrinsically safe versions are approved for Zone 0 (ATEX, IECEx, CSA).
Argonmark Ltd supplies WIKA instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
