Mensor CPG2300 portable digital pressure gauge, single or dual sensor, 0.015% FS, optional 4–20 mA
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure gauges & indicators
- Signal / Protocol: RS-232
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1529 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Mensor |
| Model | CPG2300 (formerly DPG2300) |
| Technical | |
| Type | Pressure gauges & indicators |
| Signal / Protocol | RS-232 |
| Hazardous area | General purpose |
Datasheet
Technical features
| Precision hand-held reference for field calibration of pressure and DP transmitters | |
| Dynamic temperature compensation from 0 to 50 °C | |
| Absolute, gauge, bi-directional or vacuum ranges | |
| Min/max, null, pressure rate per second/hour/3 hours; 17 units plus 1 user unit | |
| Calibration password protection; backlit 128 × 64 LCD |
Applications
| Field calibration of pressure and differential pressure transmitters in gas transmission | |
| Calibration laboratories, utilities and nuclear plants | |
| Semiconductor and pharmaceutical clean rooms |
Key specifications
| Ranges | Channel A 0…0.36 to 0…6,000 psig (25 mbar–414 bar); channel B 0…3 to 0…1,000 psig |
|---|---|
| Accuracy | 0.015% FS total uncertainty (ranges ≥ 1 psig); 0.030% FS below |
| Sensors | 1 or 2 independent sensors, displayed together |
| Electrical | Optional 4–20 mA measurement (0.015% rdg) with 24 V loop power |
| Interface | RS-232 |
| Power | Rechargeable battery, ≈ 20 h |
Specification
| Total uncertainty | 0.015% FS (≥ 1 psig); 0.030% FS (< 1 psig); includes calibration standard, repeatability, hysteresis, creep, linearity and temperature effects |
|---|---|
| Stability | Better than 0.015% FS for 180 days with periodic re-zeroing |
| Calibration interval | 180 days |
| Channel A ranges | 0…0.36 up to 0…6,000 psig; 0…7.5 up to 0…6,000 psia; bi-directional from ±0.18 psig |
| Channel B ranges | 0…3 up to 0…1,000 psig; 0…7.5 up to 0…1,000 psia |
| Overpressure | 150% FS or more |
| Resolution | 5 digits |
| Reading rate / response | ≈ 4.6 per s / < 250 ms |
| Temperature | Compensated and operating 0–50 °C; storage −20 to +70 °C |
| Electrical option | 4–20 mA measurement, 0.015% of reading, with 24 V DC loop supply |
| Communication | RS-232, 9,600 baud |
| Fittings | ¼ in FNPT pressure ports |
| Media | Clean dry non-corrosive gases (ranges ≥ 5 psi: media compatible with aluminium, 316 SS, brass, Buna N, Viton) |
| Power | 9–14.5 V DC; rechargeable battery ≈ 20 h, recharge < 8 h |
| Size / weight | T-shaped 218 × 109 × 41 mm; ≈ 0.7 kg |
| Approvals | CE |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

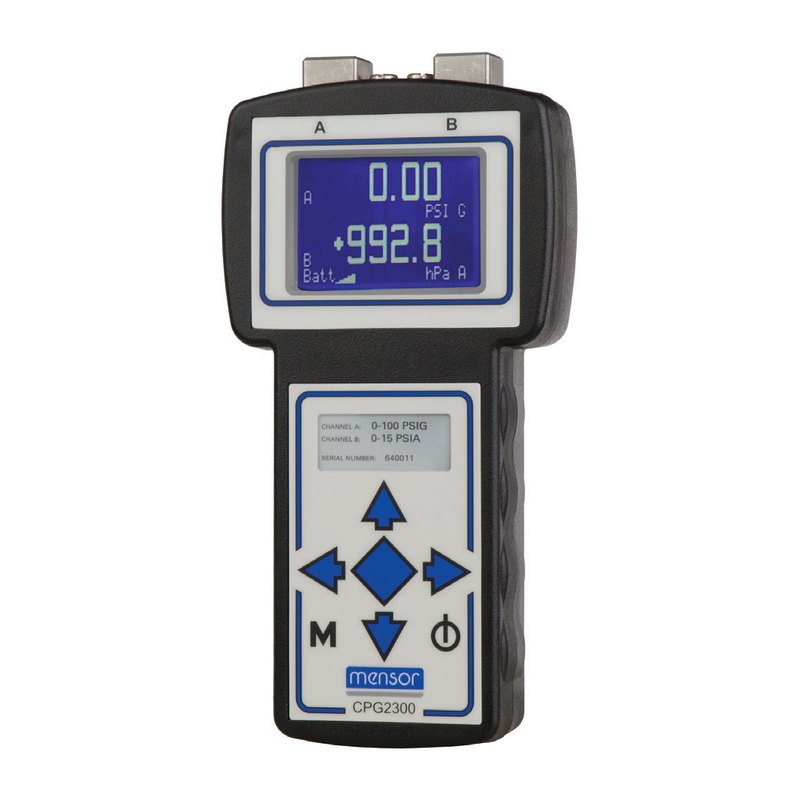

Photo: courtesy of Mensor, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Mensor CPG2300 is a portable digital pressure gauge with one or two independent precision sensors and a total uncertainty of 0.015% FS (ranges of 1 psig and above), compensated from 0 to 50 °C. Channel A ranges run from 0…0.36 psi up to 0…6,000 psi and channel B from 0…3 to 0…1,000 psi, in gauge, absolute, bi-directional or vacuum versions.
An optional 4–20 mA input with 24 V loop power makes it a complete transmitter calibrator, and min/max, null and pressure-rate functions help with troubleshooting. It has RS-232 and a rechargeable battery good for about 20 hours.
Argonmark Ltd supplies Mensor instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
