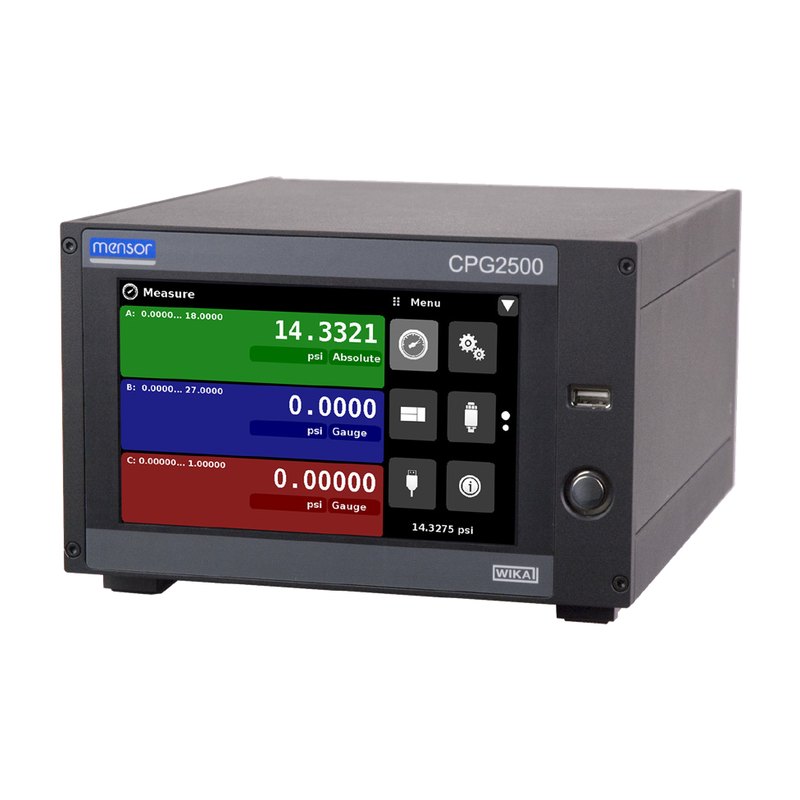

Mensor CPG2500 precision pressure indicator, 0.01% FS, two removable sensors, up to 700 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure gauges & indicators
- Signal / Protocol: RS-232, USB
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1530 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Mensor |
| Model | CPG2500 (with CPR2550 / CPR2580 sensors) |
| Technical | |
| Type | Pressure gauges & indicators |
| Signal / Protocol | RS-232, USB |
| Hazardous area | General purpose |
Datasheet
Technical features
| Laboratory and production reference indicator with removable, interchangeable transducers | |
| Optional internal barometric reference (0.01% of reading) for gauge/absolute emulation | |
| Up to 11-point linearization per sensor; 33 readings/s (standard sensors) | |
| 35 units plus 2 user-defined; rate, alternate units, min/max | |
| Bench top with tilt feet or 19 in rack mount (single or dual) |
Applications
| Calibration laboratories | reference standard for gauges and transmitters |
|---|---|
| Production test of pressure devices | |
| Barometric reference measurement | |
Key specifications
| Ranges | Gauge 25 mbar to 700 bar; absolute 0.5 to 701 bar abs.; bi-directional |
|---|---|
| Accuracy | 0.01% FS standard (0.01% IS-50 option); premium sensors to 0.008% IS-33 |
| Precision | 0.004% FS |
| Sensors | 1 or 2 removable reference transducers + optional barometer |
| Interface | IEEE-488, RS-232, USB, Ethernet |
| Display | 7 in colour touch screen |
Reference transducers
| CPR2550 standard | 0.01% FS: gauge 25 mbar–700 bar, bi-directional to −1…700 bar, absolute 0.5–701 bar abs.; 0.01% IS-50: 1–400 bar |
|---|---|
| CPR2580 premium | 0.008% IS-33, 0.008% IS-50, 0.01% FS or 0.014% FS depending on range (absolute to ≈ 2,170 bar) |
| Precision | 0.004% FS |
| Calibration interval | 365 days (180 days below 1 bar or above 400 bar) |
| Barometric reference (option) | 8–17 psia (552–1,172 mbar), 0.01% of reading |
Instrument
| Display | 7 in colour LCD, touch keypad; 4–7 digits |
|---|---|
| Languages | 11 including English, Chinese, Japanese, Russian |
| Pressure connections | 7/16-20 SAE female (⅛ FNPT adaptors); autoclave F250C above 6,000 psi |
| Overpressure | 110% FS typical; external relief valves optional |
| Interfaces | IEEE-488, RS-232, USB, Ethernet; Mensor and WIKA SCPI command sets |
| Power | 100–120 / 200–240 V AC, 24 VA |
| Operating temperature | 15–40 °C; storage 0–70 °C |
| Weight | 5.7 kg |
| Approvals | CE (EN 61326-1, EN 61010-1); A2LA ISO/IEC 17025 calibration certificate |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Mensor, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Mensor CPG2500 is a precision pressure indicator for laboratories and production, using up to two removable reference transducers with 0.01% FS accuracy (premium sensors to 0.008% IS-33) and 0.004% FS precision. Ranges cover gauge pressures from 25 mbar to 700 bar, bi-directional ranges, and absolute ranges, with an optional internal barometer for gauge/absolute emulation.
It has a 7 in colour touch screen, 35 pressure units, rate and min/max functions, and IEEE-488, RS-232, USB and Ethernet interfaces. It can be used on the bench or rack-mounted.
Argonmark Ltd supplies Mensor instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
