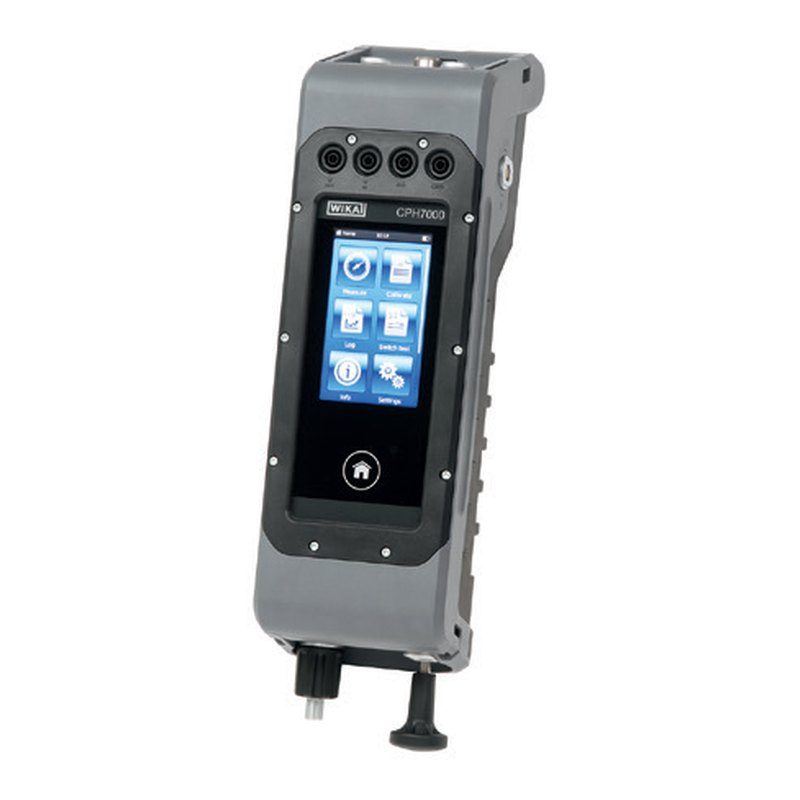

Mensor CPH7000 portable process calibrator, built-in pump −0.85 to 25 bar, 0.025% of span, mA/V, data logger
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Calibration equipment
- Signal / Protocol: Bluetooth
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1531 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Mensor |
| Model | CPH7000 (with CPT7000 sensors) |
| Technical | |
| Type | Calibration equipment |
| Signal / Protocol | Bluetooth |
| Hazardous area | General purpose |
Datasheet
Technical features
| Calibrates and simulates pressure transmitters, gauges and process transmitters on site | |
| Apps for measure, calibrate (guided assistant, up to 100 calibrations stored), logger and switch test with hysteresis | |
| Up to 2 external CPT7000 reference sensors; optional Pt100 probe and ambient module (pressure, humidity, temperature) | |
| Optional barometric reference for gauge/absolute emulation | |
| Paperless calibration via wireless transfer to WIKA-Cal; delivered in a service case |
Applications
| On-site calibration of pressure transmitters, gauges and switches by service companies | |
| Measurement and control laboratories; quality assurance |
General
| Measuring rate | 50 values/s |
|---|---|
| Languages | English, German, Spanish, French, Italian, Russian, Arabic, Chinese |
| Power | Rechargeable battery; adaptor 100–240 V AC to 12 V DC |
| Operating / storage temperature | 0–40 °C / −40 to +70 °C |
| Case | PC + ABS, IP54 |
| Weight | ≈ 1.9 kg (2.5 kg with pump and internal sensor) |
| CPT7000 external sensor | Stainless steel, IP65/67; compensated 10–60 °C |
| Calibration | 3.1 certificate; DAkkS optional |
Key specifications
| Pressure | Internal sensor −1…1 to −1…25 bar gauge / 0…1 to 0…25 bar abs.; external CPT7000 sensors for higher ranges |
|---|---|
| Accuracy | 0.025% of span (pressure); mA 0.01% ±1 µA |
| Generation | Manual pump −0.85 to +25 bar (optional pneumatic unit) |
| Electrical | Measure/supply 0–30 mA; measure 0–30 V DC; 24 V DC supply |
| Display | Colour touch screen; 50 readings/s |
| Interface | WIKA-Wireless (Bluetooth) to WIKA-Cal |
Internal reference sensor
| Gauge ranges | −1…+1, −1…5, −1…10, −1…20, −1…25 bar |
|---|---|
| Absolute ranges | 0…1, 0…1.6, 0…6, 0…10, 0…20, 0…25 bar abs. |
| Accuracy | 0.025% of span (k = 2, compensated 10–50 °C) |
| Overpressure | 3 × |
| Resolution | 5 digits |
| Connection | G⅛ female |
Electrical
| Current | Measure and supply 0–30 mA; 1 µA resolution; measure 0.01% ±1 µA, supply 0.01% ±2 µA; input 20 Ω |
|---|---|
| Voltage | Measure 0–30 V DC, 0.01% of reading ±1 mV; input 1 MΩ; supply 24 V DC |
| Protection | Overvoltage, short-circuit and reverse-polarity protected; up to 60 V |
| Barometric reference (option) | 850–1,100 mbar, ±1 mbar |
| Pt100 probe (option) | −50 to +250 °C, 1/10 DIN class B ±0.1 °C |
| Ambient module (option) | 0–100% RH ±1.8%; −40 to +125 °C ±0.2 °C |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Mensor, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Mensor CPH7000 is a portable process calibrator that combines optional built-in pressure generation from −0.85 to +25 bar, a reference pressure sensor accurate to 0.025% of span, and electrical measurement and supply of 0–30 mA and 24 V. It can power a transmitter while measuring or simulating its output, and up to two external CPT7000 sensors extend the pressure ranges.
Touch-screen apps guide the user through calibrations (storing up to 100), logging at up to 50 readings per second, and switch tests with hysteresis. Results transfer wirelessly to WIKA-Cal software for paperless certificates.
Argonmark Ltd supplies Mensor instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
