APG PT-400 heavy-duty intrinsically safe pressure transducer, vacuum to 2,070 bar, 4–20 mA / voltage / Modbus
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA, Modbus, RS-485, Voltage
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1532 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | PT-400 |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA, Modbus, RS-485, Voltage |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Built for vibration and shock | laser-welded, fully potted electronics, wires tied down |
|---|---|
| Surge and lightning protection per IEC 61000-4-5; reverse polarity protection | |
| Zero and span adjustment inside sealed access points; single seal | |
| Overpressure 2 × FS; burst up to 3 × FS; response < 5 ms | |
| Many electrical connections | cable, ½ NPT conduit, bayonet, M12, DIN 43650, junction box |
Applications
| Fracking, acidizing, cementing and wellhead pressure | |
| Gas compressors, engine compression, pump monitoring | |
| Tank level, chemical processing and wastewater treatment |
Key specifications
| Range | Vacuum to 30,000 psi (2,070 bar) |
|---|---|
| Accuracy | ±0.25% FS BFSL (±0.1% option; ±0.5% above 10,000 psi) |
| Output | 4–20 mA, 0–5, 0.5–4.5, 1–5, 0–10 V DC, or RS-485 Modbus RTU |
| Supply | 9–28 V DC (12.5–28 V for 0–10 V) |
| Wetted materials | 316L SS (≤ 1,000 psi), 17-4 SS, Incoloy (> 10,000 psi, NACE MR0175) |
| Approvals | cCSAus Class I Div 1 / Zone 0 Ex ia IIB T4 (4–20 mA); ATEX/IECEx Ex ia IIB T4 Ga (to 10,000 psi) |
Specification
| Accuracy | ±0.25% FS BFSL (1% for ≤ 1 psi); ±0.1% with NIST certificate; ±0.5% above 10,000 psi |
|---|---|
| One-year zero drift | < ±0.5% FS |
| Overpressure / burst | 2 × FS / up to 3 × FS or limit of fitting |
| Frequency response | < 5 ms |
| Pressure types | Absolute (10–200 psi), gauge (≤ 500 psi), sealed (200–30,000 psi), compound, vacuum |
| Outputs | 4–20 mA 2-wire; 0–5, 0.5–4.5, 1–5, 0–10 V DC 3-wire; RS-485 Modbus RTU with temperature (incl. level calculation version) |
| Supply | 9–28 V DC (0–10 V output: 12.5–28 V DC) |
| Compensated temperature | 0–60 °C (≤ 10 psi); −10 to 70 °C (10–1,000 psi); −17 to 54 °C (> 1,000 psi); wider options |
| Operating / storage temperature | −40 to +85 °C / −40 to +82 °C |
| Process connections | ¼ NPT M, ½ NPT M, ¼ NPT F, ½ NPT F, 1½ in tri-clamp, F250C / F560C40 high pressure |
| Weight | ≈ 283 g |
| Hazardous area | CSA/cCSAus: 4–20 mA Class I Div 1 Groups C, D, Ex ia IIB T4, Class I Zone 0 AEx ia IIB T4; voltage outputs Class I Div 2, Ex nL IIB T4; ATEX II 1G Ex ia IIB T4 Ga; IECEx Ex ia IIB T4 Ga (to 10,000 psi) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

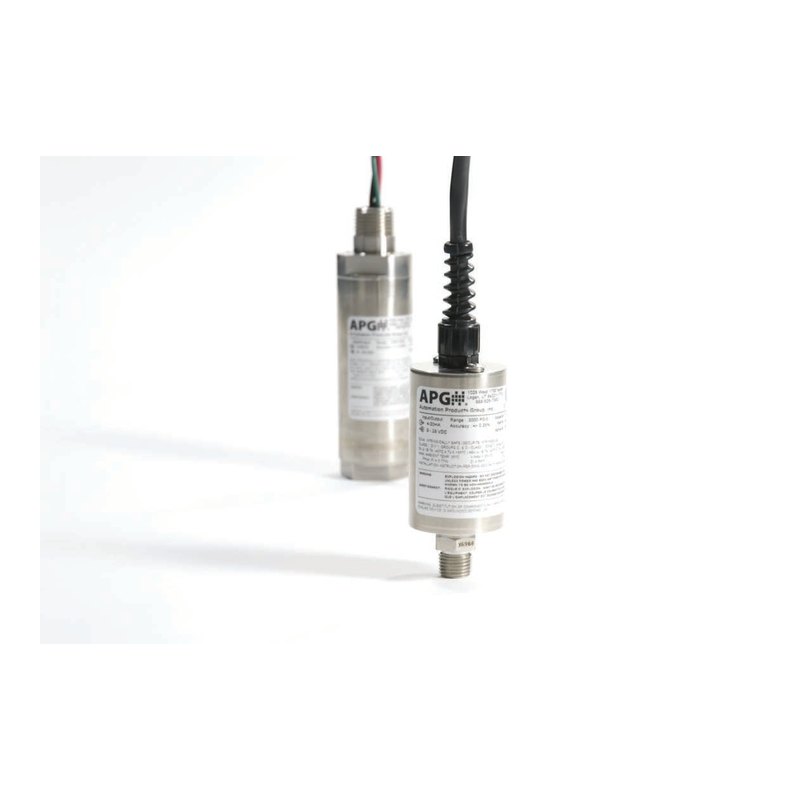

Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG PT-400 is a heavy-duty pressure transducer for high-vibration, high-shock and hazardous locations, covering vacuum up to 30,000 psi (about 2,070 bar) with ±0.25% FS accuracy. Laser-welded construction, fully potted electronics and IEC 61000-4-5 surge protection make it suitable for drilling rigs, fracking units, large pumps and engines.
Outputs include 4–20 mA, several voltage ranges and RS-485 Modbus. Wetted parts are 316L or 17-4 stainless steel, or Incoloy (NACE MR0175) for the highest pressures. The 4–20 mA version is intrinsically safe for Class I Div 1 / Zone 0 with CSA, ATEX and IECEx approvals up to 10,000 psi.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
