APG PT-L1/L3/L10 amplified-output industrial pressure transducers, vacuum to 690 bar, 4–20 mA / 0–5 / 0–10 V
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA, Voltage
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1533 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | PT-L1 / PT-L3 / PT-L10 (also L11, L12, L21) |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA, Voltage |
| Hazardous area | General purpose |
Datasheet
Technical features
| Cost-effective amplified transducer for OEM and general industrial use | |
| Single-piece stainless steel process fitting and sensor; high overpressure capability | |
| Field zero and span adjustment | |
| Gauge, compound, vacuum, absolute and sealed-gauge references | |
| Many process and electrical connections; tamper-resistant and welded can options; high-vibration option |
Applications
| OEM equipment, hydraulics and pneumatics | |
| Pump, compressor and process pressure monitoring | |
| Tank level by hydrostatic pressure |
Key specifications
| Range | Vacuum to 10,000 psi (690 bar) |
|---|---|
| Accuracy | ≤ 0.25% FS BFSL (±0.1% NIST option; ±0.5% at 10,000 psi) |
| Output | 4–20 mA (L1), 0–5 V (L3), 0–10 V (L10); 1–5, 1–6, 1–10 V options |
| Supply | 10–36 V DC (4–20 mA); 9–33 V DC (0–5 V); 14–33 V DC (0–10 V) |
| Wetted materials | Single-piece 316L, 17-4 or 15-5 stainless steel |
| Compensated temperature | −17 to 54 °C (−40 to 82 °C or −17 to 85 °C optional) |
Specification
| Accuracy | BFSL ≤ 0.25% FS; NIST to ±0.1% on selected ranges |
|---|---|
| Outputs | 4–20 mA, 0–5, 1–5, 1–6, 0–10, 1–10 V DC |
| Supply | 4–20 mA: 10–36 V DC; 0–5 / 1–5 / 1–6 V: 9–33 V DC; 0–10 V: 14–33 V DC |
| Protection | Reverse polarity |
| Compensated temperature | −17 to 54 °C standard; −40 to 82 °C or −17 to 85 °C optional |
| Materials | 316L SS (to 5,000 psi), 17-4 or 15-5 SS (≥ 1,000 psi) |
| Process connections | ¼ NPT M/F, 7/16 SAE, ⅛ NPT, ¼ / ⅜ / ½ BSPP, autoclave M-250C, 7/16-20 UNJF |
| Electrical connections | Cable pigtail, 4-pin bayonet, M12, 6-pin circular or bayonet |
| Remote access | RST-5003 internet module (4–20 mA version) |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

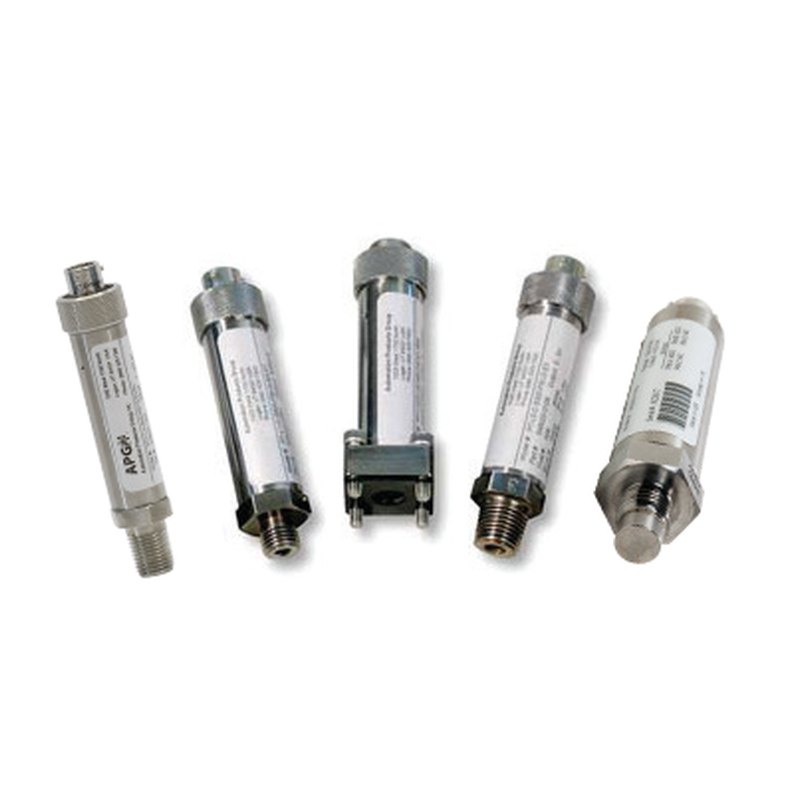

Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG PT-L1, PT-L3 and PT-L10 are economical amplified-output pressure transducers for OEM and general industrial use, covering vacuum up to 10,000 psi (about 690 bar) with ≤ 0.25% FS accuracy. The sensor and process fitting are a single piece of stainless steel, giving high overpressure capability, and zero and span can be adjusted in the field.
Outputs are 4–20 mA (L1), 0–5 V (L3) or 0–10 V (L10), with other voltage options, and many process threads, electrical connectors and extended temperature ranges are available.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
