APG PT-L9/L13/L14 millivolt-output pressure transducers, vacuum to 690 bar, 10 / 3 / 5 mV/V
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: mV/V
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1534 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | APG |
| Model | PT-L9 / PT-L13 / PT-L14 |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | mV/V |
| Hazardous area | General purpose |
Datasheet
Technical features
| Low-cost, reliable millivolt transducer for general-purpose measurement with external signal conditioning | |
| Single-piece stainless steel fitting and sensor; tamper-resistant body | |
| Optional extended temperature compensation to 121 °C | |
| Gauge, compound, vacuum, absolute and sealed references | |
| Reverse polarity protection |
Applications
| Data acquisition and test stands with bridge amplifiers | |
| OEM pressure measurement |
Key specifications
| Range | Vacuum to 10,000 psi (690 bar) |
|---|---|
| Accuracy | ≤ 0.25% FS BFSL (±0.1% NIST option; ±0.5% at 10,000 psi) |
| Output | L9 10 mV/V, L13 3 mV/V, L14 5 mV/V (±2%) |
| Excitation | Calibrated at 10 V DC |
| Wetted materials | Single-piece 316L, 17-4 or 15-5 stainless steel |
| Compensated temperature | −17 to 54 °C (to −40…121 °C optional) |
Specification
| Accuracy | BFSL ≤ 0.25% FS; NIST to ±0.1% on selected ranges |
|---|---|
| Output | 10 mV/V (L9), 3 mV/V (L13), 5 mV/V (L14), ±2% |
| Excitation | All models calibrated for 10 V DC |
| Field adjustment | None |
| Compensated temperature | −17 to 54 °C standard; −40 to 82 °C or −40 to 121 °C optional |
| Materials | 316L SS (to 5,000 psi), 17-4 or 15-5 SS (≥ 1,000 psi) |
| Process connections | ¼ NPT M/F, 7/16-20 SAE, ¼ / ⅜ / ½ BSPP, autoclave M-250C, 7/16-20 UNJF |
| Electrical connections | Cable pigtail, 4-pin or 6-pin bayonet |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

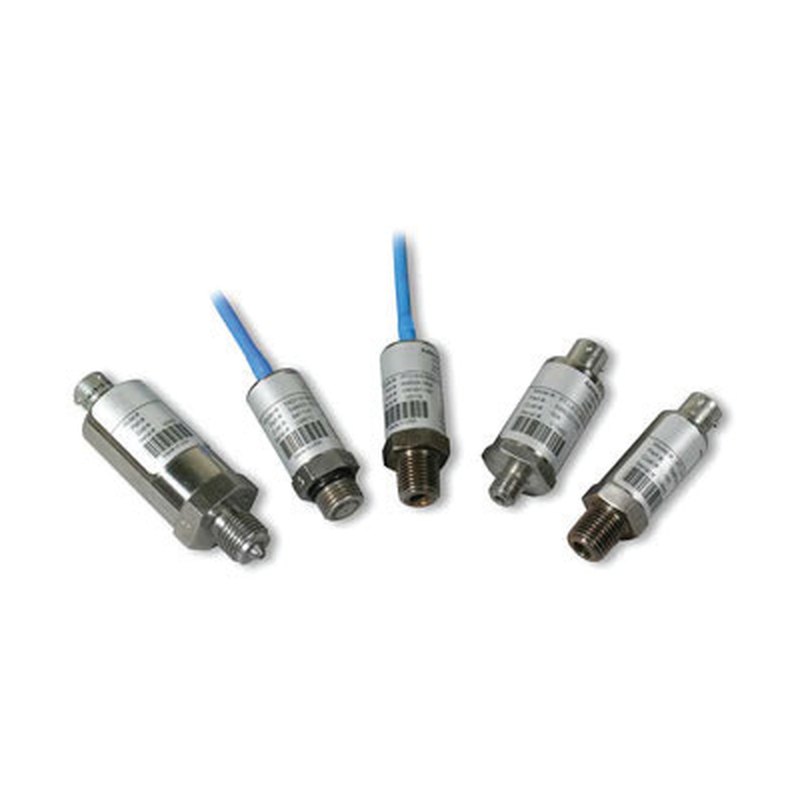

Photo: courtesy of APG, used with permission (source) — background removed by Argonmark. All photo credits
Description
The APG PT-L9, PT-L13 and PT-L14 are millivolt-output pressure transducers for general-purpose measurement where a separate amplifier or data-acquisition system conditions the signal. They cover vacuum up to 10,000 psi (about 690 bar) with ≤ 0.25% FS accuracy and give 10, 3 or 5 mV/V at 10 V excitation.
The sensor and fitting are single-piece stainless steel in a tamper-resistant body, with optional temperature compensation up to 121 °C and a choice of process threads and connectors.
Argonmark Ltd supplies APG instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
