Druck UNIK 5000 configurable pressure sensor / transmitter, 70 mbar to 700 bar, to ±0.04% FS, mV / mA / V outputs
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA, Voltage, mV/V
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1542 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Druck |
| Model | UNIK 5000 (PMP / PTX / PDCR 5000) |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA, Voltage, mV/V |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Built to order from standard modules | choose range, accuracy grade, output, electrical and pressure connector |
|---|---|
| Micromachined silicon sensor with analogue electronics: excellent stability, low power and fast response | |
| Stainless steel construction (316L / Hastelloy C276 wetted); high overpressure capability | |
| Wet/dry and wet/wet differential versions; barometric ranges | |
| Zero and span adjustment (±5% FS) with demountable connectors; shunt calibration on mV and configurable versions | |
| Many electrical options | cable, depth cable (IP68), MIL bayonet, DIN 43650, M12, ½ NPT conduit |
Applications
| OEM and industrial pressure measurement | |
| Level measurement with submersible depth versions | |
| Test and measurement, aerospace and hazardous-area process installations |
Physical
| Pressure media | Fluids compatible with 316L stainless steel and Hastelloy C276 |
|---|---|
| Pressure connectors | G¼ female/male variants, G⅛, ¼ NPT, ⅛ NPT, M12, M14, M20, depth cone, quick release, VCR, NW16 flange, R⅜, R¼ and more |
| Protection | IP65 to IP68 depending on electrical connector |
| Hazardous area | Ex ia IIC T5 Ga / Ex ia I Ma (mining), −40 ≤ Ta ≤ +80 °C; FM/CSA Class I Div 1 Groups A–D T5; options vary by connector |
Key specifications
| Ranges | Gauge 70 mbar–70 bar; sealed gauge 10–700 bar; absolute 100 mbar–700 bar; differential 70 mbar–35 bar |
|---|---|
| Accuracy | ±0.2% (Industrial), ±0.1% (Improved), ±0.04% FS BSL (Premium) |
| Outputs | mV (10 mV/V), 4–20 mA, 0–5 V, 0–10 V, 0.5–4.5 V ratiometric, configurable voltage |
| Frequency response | Up to 3.5 kHz |
| Operating temperature | −55 to +125 °C (connector dependent) |
| Approvals | Optional Ex ia IIC T5 Ga (ATEX, IECEx, FM, CSA, INMETRO, NEPSI and others) |
Measurement
| Gauge | Any zero-based range 70 mbar to 70 bar |
|---|---|
| Sealed gauge | 10 to 700 bar |
| Absolute | 100 mbar to 700 bar |
| Differential | Wet/dry 70 mbar–35 bar; wet/wet 350 mbar–35 bar (uni- or bi-directional); line pressure max. 70 bar |
| Barometric | Minimum span 350 mbar |
| Overpressure | 10 × FS (≤ 150 mbar); 6 × (≤ 700 mbar); 4 × FS for other ranges (to 200 bar / 1,200 bar) |
| Accuracy (non-linearity, hysteresis, repeatability) | Industrial ±0.2% FS BSL; Improved ±0.1%; Premium ±0.04% (mV passive ±0.25% / ±0.5%) |
| Long-term stability | ±0.05% FS typical (±0.1% max) per year |
| Temperature error band | Industrial ±0.75% FS (−10 to 50 °C) to ±2.25% (−40 to 125 °C); Improved/Premium ±0.5% to ±1.5% |
| Line pressure effect (differential) | < ±0.03% span/bar zero and span |
Supply and outputs
| mV passive / linearised | 10 mV/V; 2.5–12 V / 7–12 V supply |
|---|---|
| 4–20 mA | 7–28 V (32 V non-hazardous) |
| 0–5 V (3- or 4-wire) | 7–16 V supply |
| 0–10 V 4-wire | 12–16 V supply |
| 0.5–4.5 V ratiometric | 5.0 ±0.5 V |
| Configurable voltage | Spans 2–20 V within ±10 V; 7–36 V supply |
| Power-up time | 10 ms (500 ms configurable versions) |
| Insulation | 100 MΩ at 500 V DC |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

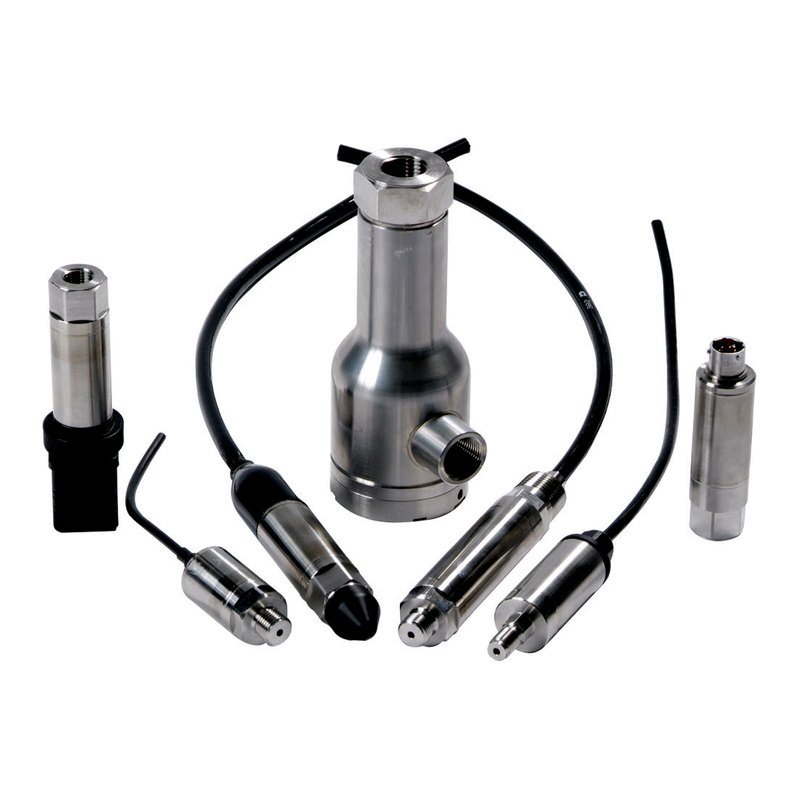

Photo: courtesy of Druck, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Druck UNIK 5000 is a configurable pressure-sensing platform built to order from standard modules, covering ranges from 70 mbar to 700 bar in gauge, sealed gauge, absolute, differential and barometric versions. Its micromachined silicon sensor gives accuracy grades of ±0.2%, ±0.1% or ±0.04% FS, long-term stability of 0.05% FS per year and frequency response up to 3.5 kHz.
Outputs include mV/V, 4–20 mA, several voltage ranges and fully configurable voltage. A wide choice of pressure and electrical connectors includes IP68 depth versions, operation spans −55 to +125 °C, and intrinsically safe Ex ia approvals are available for many regions.
Argonmark Ltd supplies Druck instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
