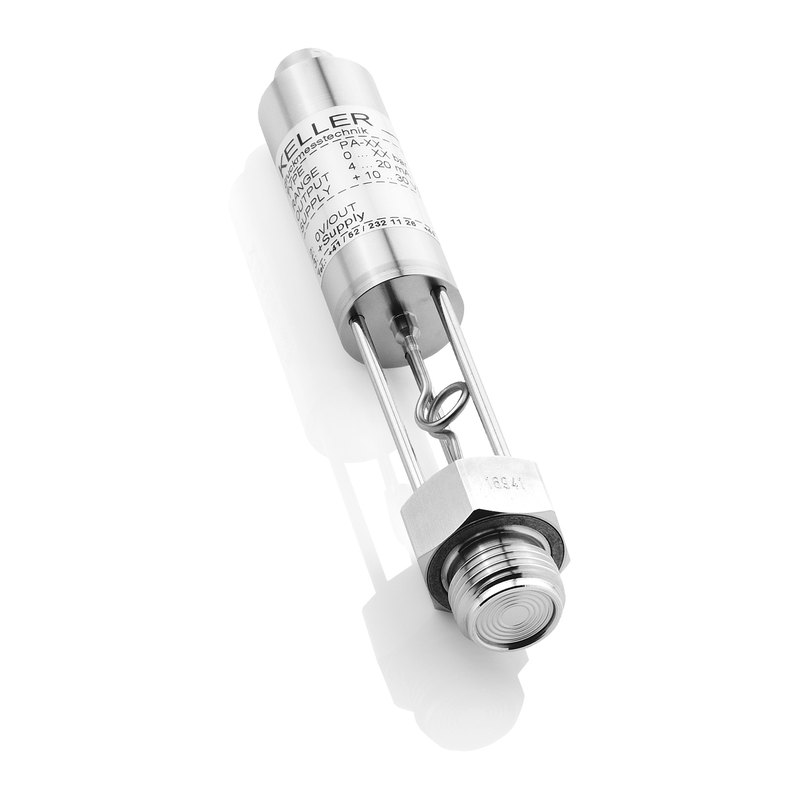

Keller 35 X HTC high-temperature pressure transmitter, media to 300 °C, 3 to 1,000 bar, flush diaphragm
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA, RS-485, Voltage
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1547 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Keller |
| Model | 35 X HTC |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA, RS-485, Voltage |
| Hazardous area | General purpose |
Datasheet
Technical features
| Flush diaphragm with oil-filled capillary acting as a cooling spiral for media up to 300 °C | |
| Electronics temperature readable via PROG30; must stay below 120 °C | |
| Microprocessor polynomial compensation; RS485 digital output on all versions | |
| Analog output re-rangeable; 100 Hz output rate; 0.002% FS resolution | |
| Other pressure-port materials available for aggressive media |
Applications
| Biotechnology and food-industry hot processes | |
| High-temperature liquid and steam-heated media pressure | |
| Plastics and hot-oil systems |
Key specifications
| Ranges | Gauge 3, 10, 30 bar; absolute 10–1,000 bar |
|---|---|
| Accuracy | Error band 0.5% FS (20–300 °C media); linearity 0.05% FS |
| Output | RS485 + 4–20 mA (2-wire) or 0–10 V (3-wire) |
| Supply | 8–28 V DC (13–28 V for 0–10 V) |
| Media temperature | 0 to 300 °C (electronics max. 120 °C) |
| Wetted materials | 316L stainless steel, copper; flush diaphragm, G½ |
Specification
| Ranges / overpressure | PR 3/10/30 bar; PAA 10/30/100/300/1,000 bar; overpressure 5–1,100 bar |
|---|---|
| Error band (20–300 °C media) | 0.5% FS |
| Linearity | 0.05% FS BSL |
| Resolution / output rate | 0.002% FS / 100 Hz |
| Long-term stability | 0.2% FS typ. |
| Load | 4–20 mA: < (U − 7 V) / 0.02 A; 0–10 V: > 5 kΩ |
| Electrical connection | Binder 723, DIN 43650 or MIL C-26482 plug |
| Temperature | Media 0–300 °C; electronics 0–120 °C |
| Endurance | 10 million cycles; vibration 20 g |
| Protection | IP65 (IP67 optional) |
| Wetted materials | 316L (1.4435), copper |
| Mounting | Horizontal, with cooling spiral exposed to room temperature |
| Weight | ≈ 300 g |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Keller, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Keller 35 X HTC is a high-temperature pressure transmitter for media up to 300 °C. Pressure acts on a flush diaphragm and is carried through an oil-filled capillary, which doubles as a cooling spiral, to the silicon sensor, keeping the electronics below 120 °C. Ranges run from 3 bar up to 1,000 bar with a 0.5% FS error band across the media temperature range.
A microprocessor compensates the sensor mathematically and provides RS485 plus a 4–20 mA or 0–10 V output that can be re-ranged in software. It mounts with a G½ connection and is rated IP65.
Argonmark Ltd supplies Keller instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
