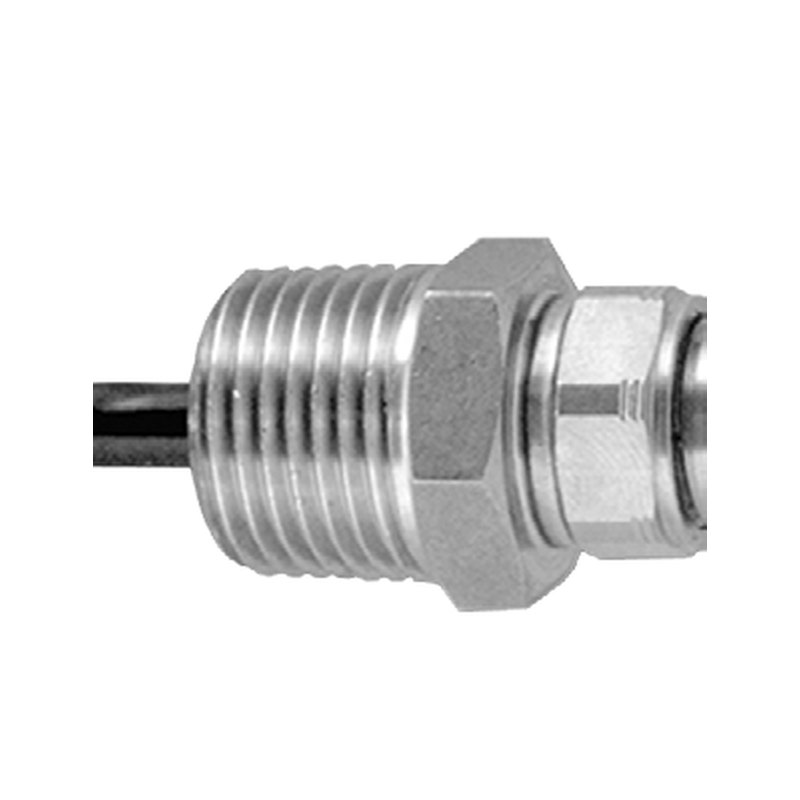

Keller Preciseline high-precision digital pressure transmitter, 0.1% FS, 4–20 mA / 0–10 V + RS485, to 1,000 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA, Modbus, RS-485, Voltage
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1548 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Keller |
| Model | Preciseline (and Preciseline SDI) |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA, Modbus, RS-485, Voltage |
| Hazardous area | General purpose |
Datasheet
Technical features
| Microprocessor-compensated piezoresistive transmitter with high accuracy over −10 to 80 °C | |
| Dual analog + RS485 outputs; up to 128 transmitters on one bus; user-rangeable analog output | |
| Lightning protection included on 4–20 mA models | |
| IP68 cabled versions for submersion; M12 and MIL connector versions | |
| Preciseline SDI | SDI-12 / Modbus for low-power data loggers (USGS accuracy option) |
|---|---|
Applications
| Water and wastewater pressure and level | |
| Telemetry and SCADA pressure monitoring | |
| Test benches and industrial process pressure |
Key specifications
| Ranges | Gauge/absolute 0…2 to 0…450 psi (0.14–31 bar); sealed 0…500 to 0…15,000 psi (34–1,034 bar) |
|---|---|
| Accuracy | ±0.1% FS static (±0.05% opt.); ±0.25% total error band (±0.1% opt.) |
| Output | 4–20 mA, 0–5 V or 0–10 V + RS485 (Keller bus / Modbus RTU); SDI-12 version |
| Supply | 8–32 V DC (11–32 V with lightning protection) |
| Wetted materials | 316L SS (titanium optional) |
| Approvals | NSF/ANSI 61, 372 (≤ 450 psi); CE; IP68 cabled |
Specification
| Ranges | Relative or absolute 0…2 to 0…450 psi; sealed 0…500 to 0…15,000 psi |
|---|---|
| Proof pressure | 3 × FS (≤ 1,500 psi); 2 × (≤ 9,000 psi); 1.2 × (≤ 15,000 psi) |
| Static accuracy (25 °C) | ±0.1% FS (±0.05% optional) |
| Total error band (−10 to 80 °C) | ±0.25% of basic range (±0.1% optional) |
| Digital resolution | 0.002% FS |
| Outputs and supply | 4–20 mA + RS485: 11–32 V DC (lightning protected) or 8–32 V DC; 0–5 V + RS485: 8–32 V DC; 0–10 V + RS485: 13–32 V DC; RS485 only |
| Start-up time | 250 ms |
| Process connection | ¼-18 NPT male |
| Electrical | 3 m cable (IP68), M12 (IP67) or MIL-DTL-26482 (IP65) |
| Operating temperature | −10 to 60 °C (cable); −20 to 85 °C (connectors) |
| Wetted materials | 316L SS; titanium optional; Viton for ranges > 450 psi |
| Shock / vibration | 20 g (11 ms) / 20 g (5–2,000 Hz) |
| Certification | CE (EN 61326); NSF/ANSI 61 and 372 (≤ 450 psi) |
Preciseline SDI
| Range | 0…5 to 0…450 psig |
|---|---|
| Output | SDI-12 V1.3 or RS485 Modbus RTU; pressure resolution 0.0005% FS |
| Accuracy | ±0.1% FS TEB; USGS option ±0.01 ft up to 10 ft WC or ±0.1% of reading above |
| Supply | 6–32 V DC; < 0.1 mA sleep, < 5.5 mA active |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Keller, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Keller Preciseline is a high-precision digital pressure transmitter with ±0.1% FS static accuracy and a ±0.25% total error band over −10 to 80 °C (±0.05% / ±0.1% optional). Ranges run from 0…2 psi up to 0…15,000 psi (about 1,000 bar) in gauge, absolute and sealed-gauge versions.
It provides a 4–20 mA or 0–10 V signal together with RS485 (Keller bus or Modbus RTU), includes lightning protection on 4–20 mA models, and has 316L stainless steel wetted parts with NSF/ANSI 61 approval for drinking water. A Preciseline SDI version adds SDI-12 for low-power data loggers.
Argonmark Ltd supplies Keller instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
