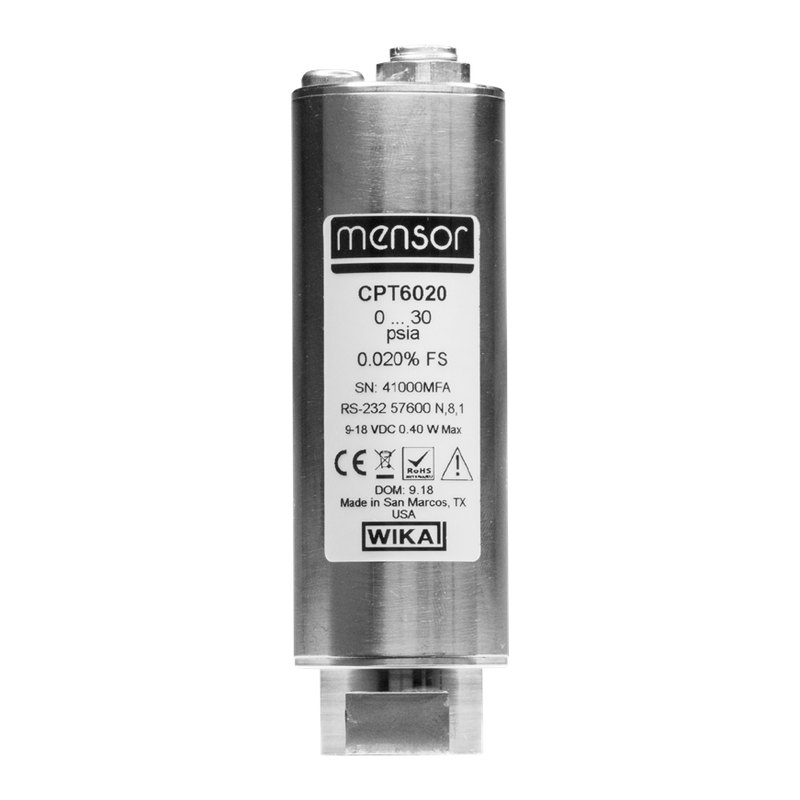

Mensor CPT6020 precision pressure transducer, 0.020% FS, 25 mbar to 1,001 bar, RS-232 / RS-485
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: RS-485, RS-232
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1550 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Mensor |
| Model | CPT6020 |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | RS-485, RS-232 |
| Hazardous area | General purpose |
Datasheet
Technical features
| Self-contained silicon sensor characterised over full pressure and temperature range | |
| Digital output only | up to 1,200 m from host via RS-485 multi-drop |
|---|---|
| 8-digit resolution (100 ppb); 39 units plus 1 user unit | |
| Can be used as a barometric reference (552–1,172 mbar abs., 0.02% of reading) | |
| Compact, rugged; SAE J514 / AN-4 or Autoclave F250C connections; A2LA calibration certificate | |
Applications
| OEM pressure controllers, flow and humidity calibrators | |
| Aerospace wind tunnels and automotive sensor test | |
| Hydrology, oceanography and transfer standards |
Key specifications
| Ranges | Gauge 25 mbar–100 bar; bi-directional ±12.5 mbar to −1…100 bar; absolute 350 mbar–1,001 bar |
|---|---|
| Accuracy | 0.020% FS (k = 2, incl. temperature effects) |
| Output | RS-232 or RS-485 digital, 50 readings/s |
| Supply | 9–18 V DC, < 26 mA |
| Compensated temperature | −20 to 75 °C |
| Construction | 316L stainless steel, IP67 |
Specification
| Accuracy | 0.020% FS (total uncertainty, k = 2) |
|---|---|
| Gauge ranges | 0…25 mbar to 0…100 bar |
| Bi-directional ranges | ±12.5 mbar to −1…100 bar |
| Absolute ranges | 0…350 mbar to 0…1,001 bar abs. |
| Calibration interval | 185 days |
| Resolution | 100 ppb or better |
| Measuring rate | 50 values/s |
| Overpressure | 2 × proof, 3 × burst; static < 50 psig (gauge) |
| Wetted materials | ≤ 5 psi: silicon, 316 SS, glass-filled resin, epoxy; > 5 psi: 316 SS (FKM above 1,500 psi) |
| Pressure media | ≤ 5 psi: clean dry gases; > 5 psi: media compatible with wetted parts |
| Supply | 9–18 V DC (12 V nominal), < 26 mA |
| Temperature | Compensated −20 to 75 °C; operating and storage −40 to 85 °C |
| Interface | RS-232 or RS-485; 9,600–115,200 baud |
| Connections | SAE J514 37° flare 7/16-20 (≤ 6,000 psi); Autoclave F250C (> 6,000 psi); 6-pin M8 electrical |
| Protection | IP67 |
| Weight | ≈ 250 g |
| Warm-up | 15 min |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Mensor, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Mensor CPT6020 is a compact precision pressure transducer with 0.020% FS accuracy, including temperature effects across −20 to 75 °C, covering gauge ranges from 25 mbar to 100 bar and absolute ranges up to 1,001 bar. Its silicon sensor is fully characterised and the pressure is delivered digitally over RS-232 or multi-drop RS-485 at 50 readings per second with 8-digit resolution.
The 316L stainless steel, IP67 housing suits OEM integration in calibrators and controllers, test stands and hydrology. It can also serve as a precise barometric reference.
Argonmark Ltd supplies Mensor instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
