Mercoid 3200G explosion-proof smart pressure transmitter, HART, ±0.075%, 100:1 turndown, to 250 bar
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA, HART
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1552 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Mercoid |
| Model | 3200G |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA, HART |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Microprocessor smart transmitter, configurable with zero/span buttons (no calibrator) or via HART | |
| Automatic sensor temperature compensation; settings kept in EEPROM | |
| Fail-mode output; damping 0.25–60 s; optional 5-digit LCD | |
| Diaphragm seal versions | extended or flush, direct or capillary, ANSI/DIN/JIS flanges; 316L, PTFE, Hastelloy C-276 or tantalum diaphragms |
|---|---|
| 316 SS housing option | |
Applications
| Process pressure in hazardous areas | |
| Steam and gas pressure | |
| Pressure with diaphragm seals for viscous, corrosive or hygienic media |
Key specifications
| Ranges | −1…1.5 bar up to 0…250 bar (0…586 bar option); spans from 15 mbar |
|---|---|
| Accuracy | ±0.075% FS at 20 °C |
| Turndown | 100:1 |
| Output | 4–20 mA with HART |
| Supply | 11.9–45 V DC |
| Approvals | Explosion-proof Class I Div 1 Groups A–D (FM; ATEX option); NEMA 4X (IP66) |
Specification
| Service | Compatible gases, steam, liquids or vapours |
|---|---|
| Wetted materials | 316L stainless steel |
| Accuracy | ±0.075% FS at 20 °C |
| Stability | ±0.125% FSO per year |
| Thermal effect | ±0.125% span per 32 °C |
| Temperature | Process −40 to 120 °C; ambient −40 to 85 °C (−30 to 80 °C with LCD) |
| Power | 11.9–45 V DC |
| Output | 4–20 mA / HART; loop 0–1,500 Ω (HART 250–500 Ω) |
| Response / damping | 0.12 s / 0.25–60 s |
| Connections | ½ in NPT female process; 2 × ½ in NPT conduit |
| Enclosure | NEMA 4X (IP66), explosion-proof Class I Div 1 Groups A–D |
| Weight | 2.5 kg |
| Approvals | ATEX, CE, FM |
Ranges
| Range code | Range | Calibrated span | Max. pressure |
|---|---|---|---|
| 1 | −100 to 150 kPa (−14.5 to 21 psi) | 1.5–150 kPa | 4 bar |
| 2 | −100 to 1,500 kPa (−14.5 to 217 psi) | 15–1,500 kPa | 40 bar |
| 3 | 0 to 5,000 kPa (725 psi) | 50–5,000 kPa | 138 bar |
| 4 | 0 to 25,000 kPa (3,600 psi) | 250–25,000 kPa | 690 bar |
| 5 | 0 to 8,500 psi (≈ 586 bar) | – | – |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

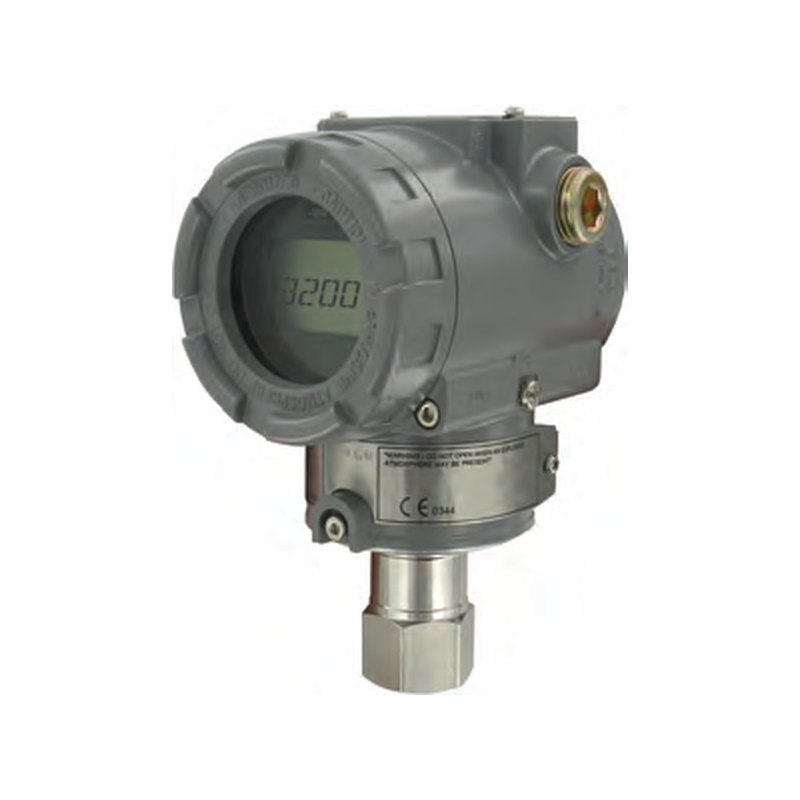

Photo: courtesy of Mercoid, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Mercoid 3200G is a microprocessor-based smart gauge pressure transmitter with ±0.075% FS accuracy and 100:1 turndown, housed in an explosion-proof NEMA 4X enclosure approved for Class I Div 1. Ranges cover vacuum up to 250 bar (586 bar option) for gases, steam, liquids and vapours, with 316L stainless steel wetted parts.
Zero and span can be set with push buttons without a calibrator, or the unit can be configured via HART on its 4–20 mA output. Diaphragm-seal versions with flanges and special diaphragm materials extend it to corrosive, viscous or hot media.
Argonmark Ltd supplies Mercoid instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
