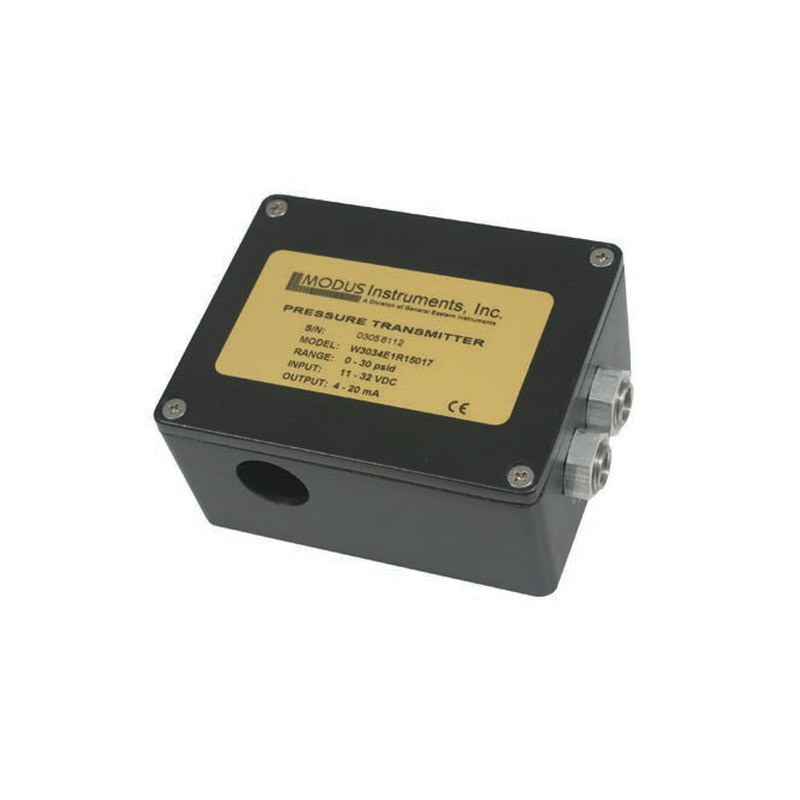

Modus W30 wet/wet differential pressure transmitter for liquids, 0–6 to 0–200 psid, 4–20 mA, 316 SS
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1553 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Modus |
| Model | W30 (W Series) |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA |
| Hazardous area | General purpose |
Datasheet
Technical features
| Measures differential pressure of liquids or gases with two piezoresistive sensors; difference computed electronically | |
| Cannot be over-pressurised if one side is disconnected; no balancing valves needed | |
| No moving parts; only 316 SS in contact with the fluid; all-welded construction | |
| 20-turn zero and span potentiometers (±50% adjustment) | |
| Pluggable terminal block; ½ in conduit or PG11/PG13 knockouts |
Applications
| Differential pressure across flow elements, heat exchangers, pumps and filters | |
| Liquid level monitoring | |
| HVAC and process automation |
Key specifications
| Ranges | 0–6 to 0–200 psid (0–50 to 0–1,500 kPa) |
|---|---|
| Accuracy | ±0.5% of range (±1% on 6 psid) |
| Static pressure | Up to 100 or 300 psi (700 / 2,000 kPa) depending on range |
| Output | 4–20 mA, 2-wire, 11–32 V DC |
| Wetted materials | 316 stainless steel, all-welded |
| Enclosure | Die-cast aluminium, IP65 / Type 4 |
Specification
| Accuracy | ±0.5% of DP range incl. non-linearity and hysteresis (±1% for 6 psid) |
|---|---|
| Static pressure effect | < ±0.25% for 0–100% static change (±0.5% for 6 psid) |
| Temperature effect | Zero ±0.05%/°C, span ±0.03%/°C (double for 6 psid) |
| Operating / storage temperature | 0 to 50 °C / −30 to +70 °C; 10–90% RH |
| Shock / vibration | 10 g (11 ms) / 5 g, 3–50 Hz |
| Output | 4–20 mA 2-wire; limited to ≈ 3.85 / 25 mA; reverse polarity protected |
| Supply | 11–32 V DC; loop resistance 0–1,050 Ω |
| Process connections | ⅛-28 NPT female |
| Enclosure | A380 die-cast aluminium, black epoxy, IP65 / Type 4 |
| Size / weight | 90 × 115 × 55 mm; 540 g |
| Calibration | NIST traceable |
Ranges
| Code | DP range | Max. static pressure |
|---|---|---|
| 31E / 31P | 0–6 psid / 0–50 kPa | 100 psi / 700 kPa |
| 32E / 32P | 0–10 psid / 0–75 kPa | 100 psi / 700 kPa |
| 33E / 33P | 0–15 psid / 0–100 kPa | 100 psi / 700 kPa |
| 34E / 34P | 0–30 psid / 0–200 kPa | 100 psi / 700 kPa |
| 35E / 35P | 0–60 psid / 0–500 kPa | 100 psi / 700 kPa |
| 36E / 36P | 0–100 psid / 0–750 kPa | 300 psi / 2,000 kPa |
| 37E / 37P | 0–150 psid / 0–1,000 kPa | 300 psi / 2,000 kPa |
| 38E / 38P | 0–200 psid / 0–1,500 kPa | 300 psi / 2,000 kPa |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Modus, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Modus W30 is a wet/wet differential pressure transmitter for liquids and gases, using two piezoresistive sensors whose difference is calculated electronically, so the unit cannot be damaged if one side loses pressure. Ranges run from 0–6 psid (50 kPa) to 0–200 psid (1,500 kPa) with ±0.5% accuracy and line pressures up to 100 or 300 psi.
Only welded 316 stainless steel touches the process, it gives a two-wire 4–20 mA output from 11–32 V DC, and it is housed in an IP65 die-cast aluminium enclosure with zero and span adjustment.
Argonmark Ltd supplies Modus instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
