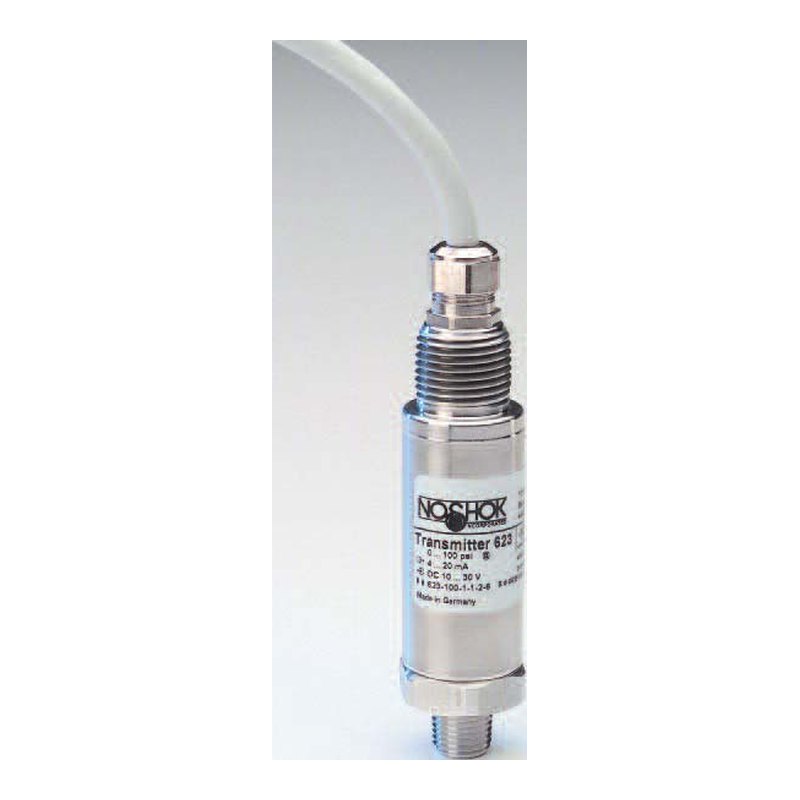

NOSHOK 623 / 624 non-incendive pressure transmitters, vacuum to 1,034 bar, 4–20 mA, Class I Div 2 (no barrier needed)
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA, Voltage
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1555 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | NOSHOK |
| Model | 623 (threaded) / 624S, 624H (flush diaphragm) |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA, Voltage |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Non-incendive approval | Zener barriers not required in Class I Div 2 |
|---|---|
| Welded pressure chamber with no internal O-rings, gaskets or seals (623) | |
| 624 front-flush diaphragm, 316 SS or Hastelloy C4 | |
| NACE MR0175 / ISO 15156; ANSI/ISA-12.27.01 single seal | |
| Low-power voltage outputs for battery or solar sites | |
Applications
| Hydraulic and pneumatic systems, pumps and compressors | |
| Oil field, offshore and pipeline gas compressors | |
| Chemical/petrochemical, marine, power generation, water and wastewater |
Key specifications
| Range | Vacuum (−30 inHg) to 15,000 psi (−1 to 1,034 bar); absolute 0–15 and 0–100 psia (624 to 8,000 psi) |
|---|---|
| Accuracy | ±0.25% FS BFSL |
| Output | 4–20 mA 2-wire; 1–5 V or 0.5–4.5 V low power |
| Supply | 10–30 V DC (6–30 V low power) |
| Wetted materials | Welded 316 SS + Elgiloy (624: flush 316 SS or Hastelloy C4) |
| Approvals | FM / CSA non-incendive Class I Div 2 Groups A–D; Class II/III Div 1 E–G |
Specification
| Accuracy | ±0.25% FS BFSL incl. linearity, hysteresis, repeatability |
|---|---|
| Hysteresis / repeatability | ≤ ±0.1% FS / ≤ ±0.05% FS |
| Stability | ≤ ±0.2% FS per year, non-accumulating |
| Response time | ≤ 1 ms (10–90%) |
| Durability | > 100 million full-scale cycles |
| Ranges | Vacuum (−30 inHg) to 15,000 psi (−1 to 1,034 bar); absolute 0–15 and 0–100 psia |
| Proof / burst pressure | 3 × FS (to 200 psi); 1.75 × (300–10,000 psi); 1.5 × (15,000 psi) / 3.8 × FS (to 200 psi); 4 × (300–10,000 psi); 3 × (15,000 psi) |
| Outputs | 4–20 mA 2-wire; 1–5 V and 0.5–4.5 V 3-wire low power |
| Supply / consumption | 10–30 V DC, 20 mA max. (4–20 mA); 6–30 V DC, 2 mA (low power) |
| Temperature | Compensated 0–80 °C; ambient −30 to 100 °C; media −32 to 100 °C |
| Wetted materials | 623: 316 SS (≤ 300 psi), 316 SS + Elgiloy (≥ 500 psi); 624: 316 SS with Buna-N (Viton) O-ring, Hastelloy option |
| Process connections | ¼ or ½ NPT male; 624: G½B or G1B flush |
| Housing / protection | 316 SS; NEMA 4X, IP65–IP67 |
| Shock / vibration | 1,000 g / 20 g |
| Hazardous approvals | FM and CSA non-incendive Class I Div 2 Groups A–D; Class II/III Div 1 Groups E–G; max. 30 V DC, 20 mA |
| Weight | ≈ 340 g |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of NOSHOK, used with permission (source) — background removed by Argonmark. All photo credits
Description
The NOSHOK 623 and 624 are non-incendive pressure transmitters approved by FM and CSA for Class I Division 2 locations without the need for Zener barriers. They measure from vacuum to 15,000 psi (624 flush versions to 8,000 psi) with ±0.25% FS accuracy using a stable thin-film sensor and a welded pressure chamber with no internal seals.
Outputs are 4–20 mA or low-power 1–5 V / 0.5–4.5 V for remote sites, and the 316 stainless steel housing is NEMA 4X. The 624 has a front-flush 316 SS or Hastelloy diaphragm; both are NACE MR0175 compliant.
Argonmark Ltd supplies NOSHOK instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
