NOSHOK 625 / 626 intrinsically safe pressure transmitters, to ±0.125% FS, 4–20 mA, Class I Div 1 / Zone 0
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1556 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | NOSHOK |
| Model | 625 (threaded) / 626S, 626H (flush diaphragm) |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Entity approved for use with approved Zener barriers | |
| Accuracy to ±0.125% FS including zero and span errors | |
| Zero and span adjustable ±10% FS | |
| Welded 316 SS with no internal seals; 626 flush diaphragm | |
| Many electrical connections | cable, DIN (Hirschmann), Bendix, M12, ½ NPT conduit |
|---|---|
Applications
| Chemical and petrochemical plants | |
| Oil field, offshore and pipeline gas compressors | |
| Vapour recovery and marine |
Key specifications
| Range | −4…12 oz/in² to 0…15,000 psi (≈ −17 mbar to 1,034 bar); absolute 15–300 psia |
|---|---|
| Accuracy | ±0.25% FS BFSL (±0.125% optional) |
| Output | 4–20 mA 2-wire |
| Supply | 10–30 V DC |
| Wetted materials | Welded 316 SS (17-4PH diaphragm on high ranges); 626 flush 316 SS or Hastelloy C4 |
| Approvals | FM / CSA IS Class I, II, III Div 1 Groups A–G; Class I Zone 0 AEx ia IIC |
Specification
| Accuracy | ±0.25% FS BFSL; ±0.125% optional (incl. non-linearity, hysteresis, repeatability, zero and span) |
|---|---|
| Stability | ≤ ±0.2% FS per year |
| Response / durability | ≤ 1 ms / > 100 million cycles |
| Ranges | −4…12 oz/in², 0–50 and 0–100 inH2O, vacuum, 0–3 to 0–15,000 psig, 0–15 to 0–300 psia |
| Proof / burst | 3.5 × / 4 × FS (to 200 psi); 2 × / 4 × (300–10,000 psi); 1.5 × / 3 × (15,000 psi) |
| Supply | 10–30 V DC; load ≤ (U − 10 V) / 0.020 A |
| Temperature | Compensated 0–80 °C; ambient −20 to 80 °C; media −20 to 85 °C |
| Wetted materials | 625: 316 SS (17-4PH diaphragm ≥ 300 psi); 626: 316 SS with NBR O-ring, Hastelloy C4 and FKM optional |
| Process connections | ¼ or ½ NPT male, 9/16-18 UNF HP cone, SAE J1926 7/16-20; 626: G½B or G1B flush |
| Protection | IP65–IP67 depending on connection |
| Hazardous approvals | FM/CSA IS Class I, II, III Div 1 Groups A–G; Class I Zone 0 AEx ia IIC; non-incendive Class I Div 2; single seal |
| Weight | ≈ 200 g |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

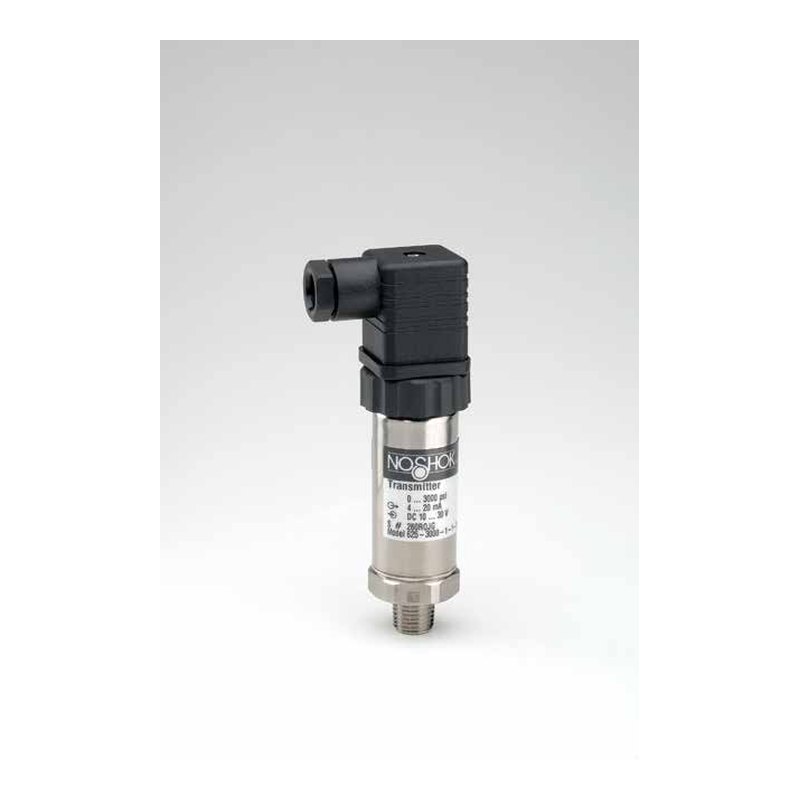

Photo: courtesy of NOSHOK, used with permission (source) — background removed by Argonmark. All photo credits
Description
The NOSHOK 625 and 626 are intrinsically safe pressure transmitters, FM and CSA approved for Class I, II and III Division 1 and Class I Zone 0 with approved barriers. They cover very low ranges from a few oz/in² up to 15,000 psi, with ±0.25% FS accuracy (±0.125% optional) and ≤ 0.2% FS drift per year.
The 625 has a welded 316 stainless steel chamber with no internal seals, and the 626 a front-flush 316 SS or Hastelloy C4 diaphragm. They give a two-wire 4–20 mA output with ±10% zero and span adjustment and a wide choice of electrical connections.
Argonmark Ltd supplies NOSHOK instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
