ScanSense wing union pressure transmitter for 2 in fig. 1502 / 2202 hammer lug, 345 to 1,380 bar, Ex ia, 4–20 mA
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA
- Hazardous area: Hazardous-area rated / option
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1558 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | ScanSense |
| Model | Wing Union PT (5WU1502 / 5WU2202) |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA |
| Hazardous area | Hazardous-area rated / option |
Datasheet
Technical features
| Extremely rugged sensor for 2 in hammer lug (wing union) connections in high-pressure on- and offshore service | |
| Sputtered thin-film strain gauge on a semi-flush diaphragm, electron-beam welded: good for static and dynamic pressure | |
| Digitally calibrated and temperature compensated; no mounting effect on signal | |
| Materials suited to abrasive and corrosive drilling media | |
| Optional dual sensor with PT1000 temperature output | |
| Bulkhead connector or mud-resistant, halogen-free, fire-resistant fixed cable |
Applications
| Mud logging, drilling and standpipe pressure | |
| Cementing, fracturing and acidizing | |
| Well logging, intervention, choke and kill manifolds |
Key specifications
| Range | 0–5,000 to 0–15,000 psi (fig. 1502); 0–15,000 / 0–20,000 psi (fig. 2202) |
|---|---|
| Accuracy | ±0.2% FS |
| Output | 4–20 mA 2-wire; optional PT1000 temperature output |
| Supply | 10–28 V DC |
| Fitting | Replaces 2 in fig. 1502 or fig. 2202 hammer lug male sub |
| Approvals | ATEX Ex ia IIC T4; IP68 |
Specification
| Ranges | fig. 1502: 0–5,000, 6,000, 7,500, 10,000, 15,000 psi; fig. 2202: 0–15,000, 20,000 psi |
|---|---|
| Accuracy | ±0.2% FS |
| Long-term drift | < ±0.1% FS per year |
| Output | 4–20 mA, 2-wire |
| Supply | 10–28 V DC |
| Response time | < 2 ms typical |
| Overpressure / burst | ≤ 1.5 × FS (max. 22,500 psi) / > 3 × FS |
| Temperature | Ambient −20 to +80 °C; medium −40 to +140 °C; storage −40 to +125 °C |
| Protection | IP68; reverse polarity protected |
| Approvals | CE (EMC); ATEX Ex ia IIC T4 |
| Temperature output (option) | PT1000, 3.85 Ω/°C, −50 to +300 °C |
| Weight | 3.4 kg (fig. 1502); 2.5 kg (fig. 2202), without cable |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of ScanSense, used with permission (source) — background removed by Argonmark. All photo credits
Description

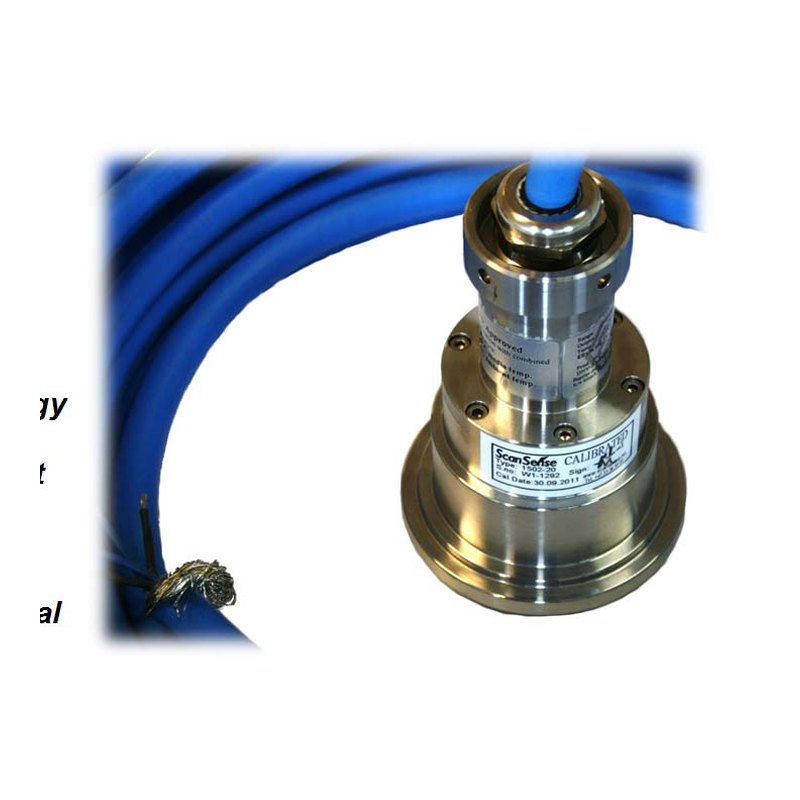

The ScanSense wing union pressure transmitter is a rugged sensor that screws directly into a 2 in fig. 1502 or fig. 2202 hammer lug, replacing the male sub on high-pressure drilling and well-service lines. Ranges run from 0–5,000 psi up to 0–20,000 psi with ±0.2% FS accuracy, drift below 0.1% FS per year and response under 2 ms.
A sputtered thin-film strain gauge on an electron-beam-welded semi-flush diaphragm handles abrasive, corrosive media and dynamic pressure. It gives a 4–20 mA output (with optional PT1000 temperature), is IP68 and is ATEX certified Ex ia IIC T4.
Argonmark Ltd supplies ScanSense instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
