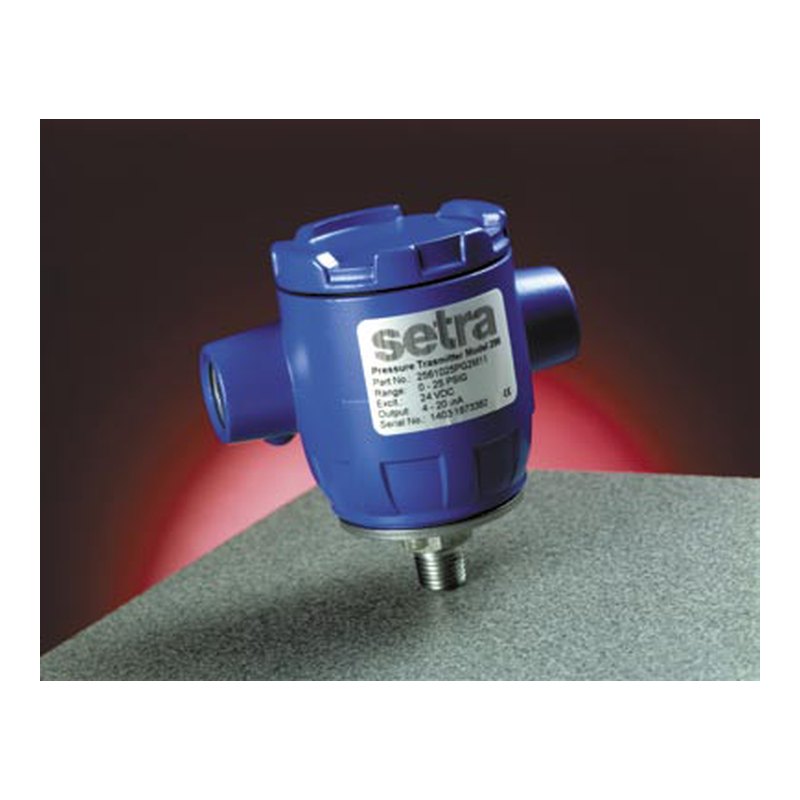

Setra 256 industrial gauge pressure transducer, 0–1 psi to 0–10,000 psi, 4–20 mA or 0.1–5.1 V, NEMA 4
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure transmitters
- Signal / Protocol: 4–20 mA
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1559 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Setra |
| Model | 256 |
| Technical | |
| Type | Pressure transmitters |
| Signal / Protocol | 4–20 mA |
| Hazardous area | General purpose |
Datasheet
Technical features
| Patented variable-capacitance sensor | excellent mechanical and thermal stability, resistant to shock, vibration and EMI/RFI |
|---|---|
| Custom ASIC electronics; zero and span potentiometers | |
| Compact 90 × 102 mm housing with removable cover and terminal strip; ½ in conduit ports | |
| Runs on low-cost unregulated supply | |
| NIST-traceable calibration | |
Applications
| Process control and chemical processing | |
| Natural gas pipeline monitoring | |
| Irrigation, grain processing and industrial pressure monitoring |
Key specifications
| Ranges | 0–1 to 0–10,000 psi (0–1.6 to 0–700 bar) |
|---|---|
| Accuracy | ±0.13% FS RSS (≥ 25 psi); ±0.25% FS below |
| Output | 4–20 mA 2-wire or 0.1–5.1 V DC 3-wire |
| Supply | 9–30 V DC |
| Wetted materials | 17-4 PH stainless steel |
| Enclosure | Die-cast aluminium, NEMA 4 / IP65 |
Specification
| Accuracy (RSS, constant temperature) | ±0.13% FS (≥ 25 psi); ±0.25% FS (< 25 psi) |
|---|---|
| Non-linearity / hysteresis / repeatability | 0.10 / 0.08 / 0.02% FS (≥ 25 psi) |
| Thermal effects (−20 to 80 °C) | Zero ±0.9% FS/50 °C (±1.8% < 25 psi); span ±1.4% FS/50 °C |
| Long-term stability | 0.5% FS per year |
| Current output | 4–20 mA 2-wire; load 0–800 Ω; 9–30 V DC |
| Voltage output | 0.1–5.1 V DC 3-wire (≥ 25 psi); 9–30 V DC; 0.15 W |
| Operating / storage temperature | −40 to +85 °C (electronics) |
| Shock / vibration | 200 g / 20 g |
| Pressure media | Liquids or gases compatible with 17-4 PH SS (hydrogen not recommended) |
| Pressure fitting | ¼ NPT male standard; ⅛ NPT M, ½ NPT M, ¼ NPT F |
| Electrical | Two ½ in internal conduit ports |
| Protection | NEMA 4 / IP65 |
| Weight | 380 g |
Ranges
| Range | Proof | Burst |
|---|---|---|
| 0–1 psi | 2 psi | 250 psi |
| 0–5 psi | 10 psi | 250 psi |
| 0–25 psi | 100 psi | 500 psi |
| 0–100 psi | 300 psi | 1,000 psi |
| 0–250 psi | 500 psi | 2,000 psi |
| 0–500 psi | 1,000 psi | 3,000 psi |
| 0–1,000 psi | 2,000 psi | 5,000 psi |
| 0–3,000 psi | 4,500 psi | 7,500 psi |
| 0–5,000 psi | 7,500 psi | 10,000 psi |
| 0–10,000 psi | 12,000 psi | 12,500 psi |
| 0–1.6 to 0–700 bar | Metric ranges available | – |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Setra, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Setra 256 is a rugged industrial gauge pressure transducer built around Setra's variable-capacitance sensor, which resists shock, vibration, temperature and EMI. It covers ranges from 0–1 psi to 0–10,000 psi (0–1.6 to 0–700 bar) with ±0.13% FS accuracy on ranges of 25 psi and above.
Wetted parts are 17-4 PH stainless steel, the output is 4–20 mA or 0.1–5.1 V from an unregulated 9–30 V DC supply, and the compact die-cast aluminium NEMA 4 housing has ½ in conduit ports and zero/span adjustment.
Argonmark Ltd supplies Setra instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
