Setra 328 1⅛ in micro display for pressure transducers, 3½-digit LED, switchable units, rotating face
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Pressure gauges & indicators
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1560 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Setra |
| Model | 328 |
| Technical | |
| Type | Pressure gauges & indicators |
| Hazardous area | General purpose |
Datasheet
Technical features
| Fits in-line between the power supply and transducer in 1⅛ in modular gas sticks and panels | |
| Front face rotates 360° in four detented positions | |
| Up to three factory-configured pressure units, switchable by push-button | |
| Push-button zero and span on the front | |
| 9-pin or high-density 15-pin D-Sub connectors (rear or bottom) | |
| Pairs with Setra ultra-high-purity transducers (Models 227, 217, 223, 224) |
Applications
| High-purity gas delivery systems | |
| Semiconductor process tools and gas panels | |
| Local pressure readout on modular gas sticks |
Key specifications
| Input | 0–5 V, 0–10 V or 4–20 mA from the transducer |
|---|---|
| Display | 3½-digit red LED, 7 mm (−1999 to 1999) |
| Accuracy | 0.1% of reading ±1 count |
| Supply | 12–30 V DC (6.5 V drop on current loop) |
| Footprint | 1⅛ in modular block |
| Approvals | CE, RoHS |
Specification
| Display | −1999 to 1999, 7-segment red LED, 7 mm digits, automatic polarity |
|---|---|
| Accuracy | 0.1% of reading ±1 count |
| Input signal | 0–5 V DC, 0–10 V DC or 4–20 mA |
| Excitation | 12–30 V DC (6.5 V drop on current loop; 100 mA current limit) |
| Pressure units | Switchable, e.g. psi / kPa / bar; ranges 25 psi to 3,000 psi (1.7–210 bar), gauge, compound or absolute |
| Electrical termination | High-density 15-pin or 9-pin D-Sub, rear or bottom mount |
| Protection | Reverse polarity |
| Temperature | Operating 0–60 °C; storage −20 to +85 °C |
| Size | ≈ 29 × 44 × 36 mm |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Setra, used with permission (source) — background removed by Argonmark. All photo credits
Description

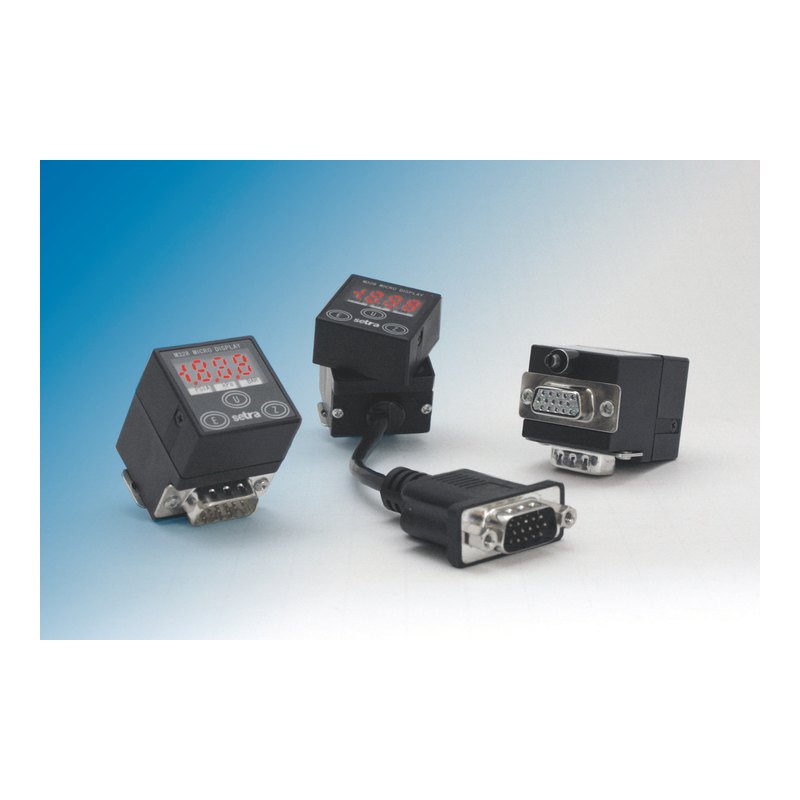

The Setra 328 is a 1⅛ in micro display that fits in-line between a pressure transducer and its power supply in high-density modular gas sticks and panels. It converts the transducer's 0–5 V, 0–10 V or 4–20 mA signal into a 3½-digit LED reading with 0.1% of reading accuracy, in up to three switchable pressure units.
The front face rotates in 90° steps for viewing from any side, zero and span are set by push-buttons, and connection is by 9- or 15-pin D-Sub connectors. It is designed for semiconductor process tools and high-purity gas systems.
Argonmark Ltd supplies Setra instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
