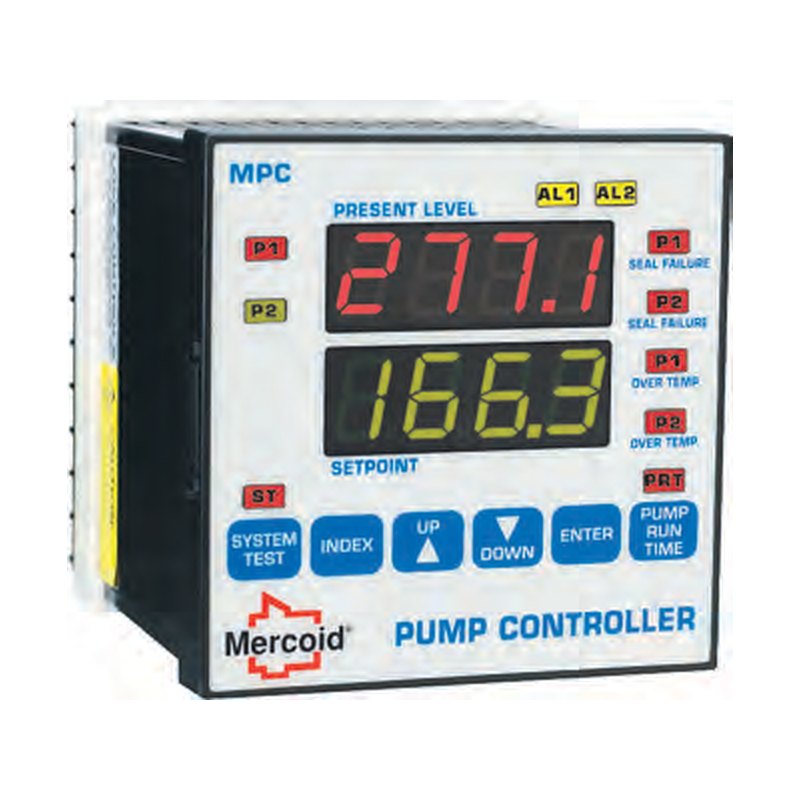

Mercoid MPC ¼ DIN pump controller with alternation, seal-failure and over-temperature monitoring, 4–20 mA input
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Level
- Signal / Protocol: 4–20 mA, Modbus, RS-485, RS-232, Relay / switch
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1562 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Mercoid |
| Model | MPC |
| Technical | |
| Type | Level |
| Signal / Protocol | 4–20 mA, Modbus, RS-485, RS-232, Relay / switch |
| Hazardous area | General purpose |
Datasheet
Technical features
| One or two pump control with selectable alternation; a failed pump is removed and the other takes the lead | |
| Seal-failure alarm for submersible pumps with moisture sensor (10–500 kΩ, adjustable) | |
| Over-temperature alarm and lock-out from pump thermostat; automatic or manual reset | |
| Power-up delay (up to 60 s) for pump two to limit inrush current | |
| Pump run-time display; system test that simulates the input | |
| Process retransmission (4–20 mA or 2–10 V) standard; RS-232/485 Modbus option |
Applications
| Submersible pump stations and lift stations | |
| Wastewater wet wells with seal-leak monitoring | |
| Duplex pump control |
Key specifications
| Input | 4–20 mA or 0–10 V from level transmitter |
|---|---|
| Outputs | 2 SPDT pump relays (10 A) + 2 alarm relays (3 A); 4–20 mA retransmission |
| Protection functions | Seal failure (moisture sensor) and pump over-temperature |
| Transmitter supply | 24 V DC, 50 mA |
| Power | 100–240 V AC or 132–240 V DC |
| Front panel | ¼ DIN, IP66 / UL 4X |
Specification
| Inputs | 4 (or 0)–20 mA or 2 (or 0)–10 V DC, selectable |
|---|---|
| Control relays | 2 × SPDT, 10 A at 240 V AC resistive; ¼ hp at 120 V AC, ⅓ hp at 240 V AC |
| Alarm relays | 2 × SPST, 3 A at 240 V AC resistive; front alarm lights |
| Control action | On/off, reverse (pump out) or direct (pump in), programmable differential |
| Accuracy | ±0.25% of span ±1 digit |
| Display | Two 4-digit 14 mm red LED displays (level and set point) |
| Transmitter supply | Isolated 24 V DC, 50 mA |
| Power | 100–240 V AC 50–400 Hz or 132–240 V DC; 7.5 VA |
| Memory | Non-volatile (no battery) |
| Communication (option) | RS-232 or RS-485 Modbus RTU |
| Ambient | −10 to 55 °C; 0–90% RH non-condensing |
| Front panel | ¼ DIN, 92 × 92 mm cut-out; UL Type 4X / IP66 |
| Weight | 454 g |
| Approvals | CE, UL, cUL |
| Input impedance | 10 Ω (current); 100 kΩ (voltage) |
| Seal failure input | 2.5 V, 3 µA; resolution 10–500 kΩ in 10 kΩ steps |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |
Photo: courtesy of Mercoid, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Mercoid MPC is a ¼ DIN pump controller that combines level control of one or two pumps with pump protection. It reads a 4–20 mA or 0–10 V level transmitter, switches the pumps through 10 A relays with alternation, and monitors seal-failure moisture sensors and pump thermostats, taking a faulty pump out of service and letting the other one lead.
It also delays the second pump on power-up, shows pump run time, retransmits the level as 4–20 mA, and powers the transmitter from a built-in 24 V supply. The front is IP66, and Modbus communication is optional.
Argonmark Ltd supplies Mercoid instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
