Bently Nevada TK-3 proximity system test kit: wobulator and spindle micrometer for calibrating probes and monitors
Pricing depends on specification, quantity and delivery location. Send your requirement and we reply with a costed quotation within 24 hours.
Quick overview
- Type: Accessories
- Hazardous area: General purpose
- Genuine productsSourced from the manufacturer or authorised channels
- Delivery across BangladeshDhaka, Chattogram and all industrial zones
- After-sales supportInstallation guidance and warranty handling
- Reply within 24 hoursCall +880 1713 552466 or email hello@argonmark.com
Specifications
| General | |
|---|---|
| Part no. | BD-1564 |
| Category | Oil & Gas Instruments |
| Group | Instrumentation & Control |
| Brand | Bently Nevada |
| Model | TK-3 (TK-3e electric / TK-3g air) |
| Technical | |
| Type | Accessories |
| Hazardous area | General purpose |
Datasheet
Technical features
| Simulates shaft vibration and position to calibrate Bently Nevada monitors and verify proximity transducer systems | |
| Removable spindle micrometer with magnetic base for gap/scale-factor checks in the field | |
| Motor-driven wobble plate | set vibration with a multimeter, no oscilloscope required |
|---|---|
| Universal probe mounts for 5–19 mm probes | |
| Industrial-strength portable case; IP54 when closed | |
Applications
| Calibration of vibration and thrust position monitors | |
| Verification of proximity probe, extension cable and driver systems | |
| Machinery protection system maintenance |
Key specifications
| Vibration simulation | 50–254 µm (2–10 mils) peak-to-peak, wobble plate |
|---|---|
| Speed | 0 to 5,000 cpm |
| Static calibration | Spindle micrometer 0–25.4 mm |
| Probe sizes | 5 to 19 mm diameter (universal mount) |
| Power | 95–125 or 190–250 V AC (electric) or air to 6.2 bar |
| Weight | 5.22 kg |
Specification
| Vibration amplitude | 50–254 µm (2–10 mils) peak-to-peak |
|---|---|
| Maximum speed | 0–5,000 cpm ±1,000 cpm (electric or air) |
| Spindle micrometer range | 0–25.4 mm (0–1,000 mils) |
| Target / wobble plate | AISI 4140 alloy steel (other materials on request) |
| Power | 95–125 V AC or 190–250 V AC, 50/60 Hz, 1 A; air version 6.2 bar max. |
| Size | 195 × 299 × 248 mm |
| Weight | 5.22 kg |
| Environment | Indoor; 0–50 °C operating (40 °C continuous); storage −18 to 65 °C; 95% RH; IP54 closed |
| Compliance | CE (EMC, LVD EN 61010-1), RoHS, FCC Part 15 |
| Versions | English or metric scale; electric (TK-3e) or air driven |
Notes
| Data from the manufacturer's published datasheet. Confirm model, range, materials and approvals with Argonmark before ordering. |

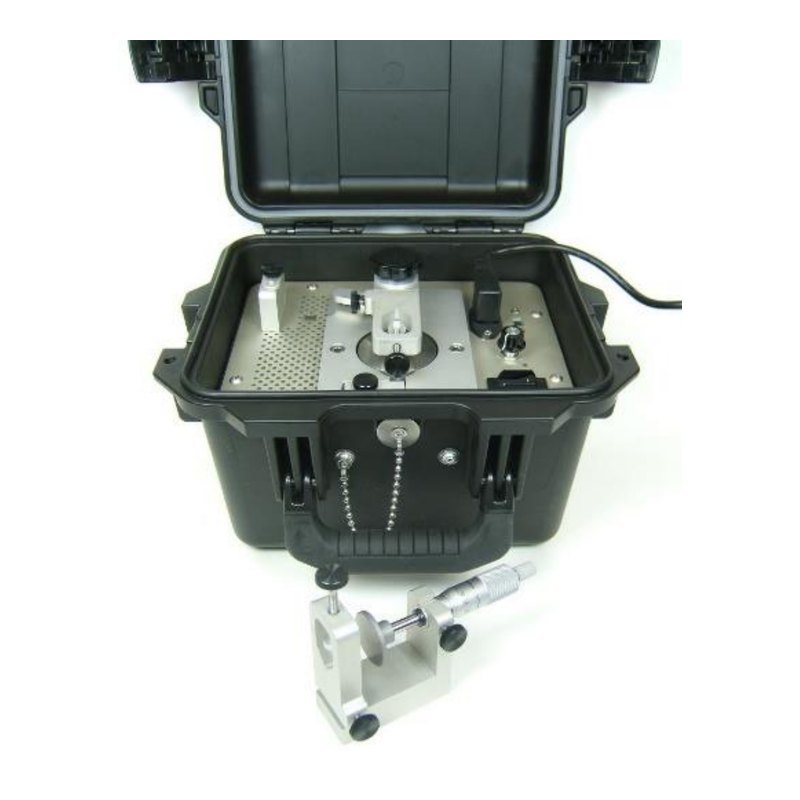

Photo: courtesy of Bently Nevada, used with permission (source) — background removed by Argonmark. All photo credits
Description
The Bently Nevada TK-3 is a portable test kit that simulates shaft vibration and position to calibrate Bently Nevada monitors and check proximity transducer systems. A spindle micrometer with universal probe mount (5–19 mm probes) moves a 4140 steel target in calibrated steps for scale-factor and position checks.
A motor-driven wobble plate produces 50 to 254 µm peak-to-peak mechanical vibration at up to 5,000 cpm, so a vibration monitor's reading can be compared with a known input using only a multimeter. It comes in a rugged IP54 case weighing about 5 kg.
Argonmark Ltd supplies Bently Nevada instruments across Bangladesh — Dhaka, Chattogram, Gazipur, Narayanganj and the gas fields, refineries, terminals and power plants beyond. Send us the model, range, process connection, output and any hazardous-area requirement, and we will confirm the right configuration, lead time and price.
